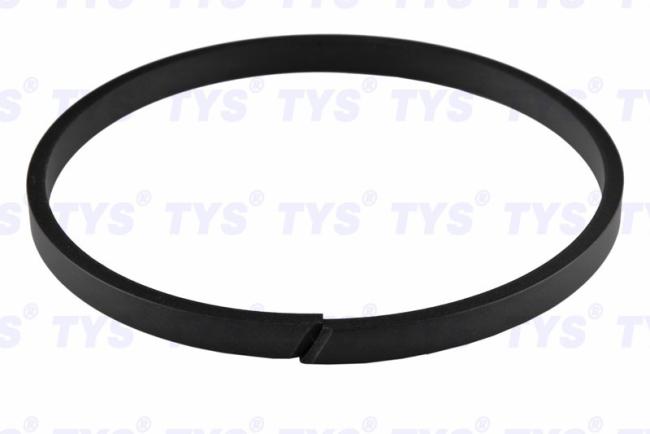

PTFE Machine Seal Hydraulic Guide Ring For Hydraulic Bearing

PTFE Machine Seal Hydraulic Guide Ring For Hydraulic Bearing

machine seal  China factory directly sell

Attention should be paid to the installation and use of sealing ring:

Can not install the wrong direction and damage the lips. If there are scars above 50μm on the lips, it may cause obvious oil leakage.

Prevent forced installation. Do not use a hammer to knock in, but use a special tool to first press the sealing ring into the seat hole, and then use a simple cylinder to protect the lip through the spline. Before installation, apply some lubricating oil to the lips to facilitate installation and prevent burns during initial operation. Pay attention to cleaning.

Prevent overdue use. The service life of rubber seals for dynamic seals is generally 3000～5000h, and new seals should be replaced in time.

The size of the replacement seal should be the same. It is necessary to strictly follow the requirements of the instructions, and select the same size of the sealing ring, otherwise the tightness and other requirements cannot be guaranteed.

Advantages of editing Voice

1. The sealing ring should have good sealing performance within the working pressure and a certain temperature range, and can automatically improve the sealing performance as the pressure increases.

2. The friction between the sealing ring device and the moving parts should be small, and the friction coefficient should be stable.

3. The sealing ring has strong corrosion resistance, not easy to age, long working life, good wear resistance, and can automatically compensate to a certain extent after wear.

4. Simple structure, convenient use and maintenance, so that the sealing ring has a longer life.

Precautions

1. Clean the installation location;

2. Remove the burrs during the installation movement of the seal;

3. Apply lubricant on the seals;

4. Protect the sealing surface from damage;

5. Recheck to confirm that the size of the seal is correct;

6. Use corresponding tools to install the seals that need to be deformed and installed.
