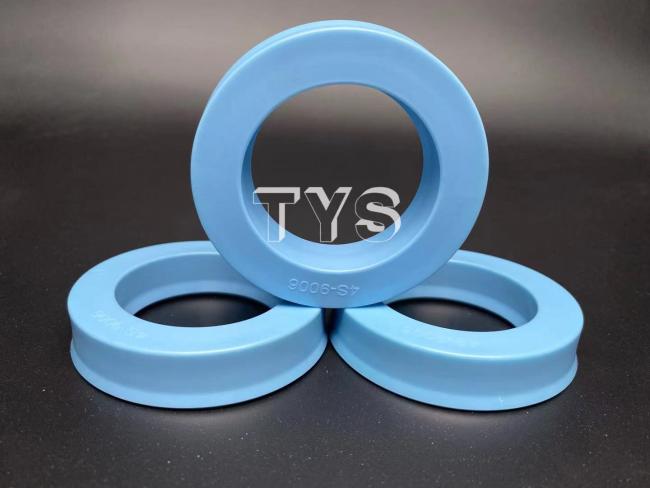

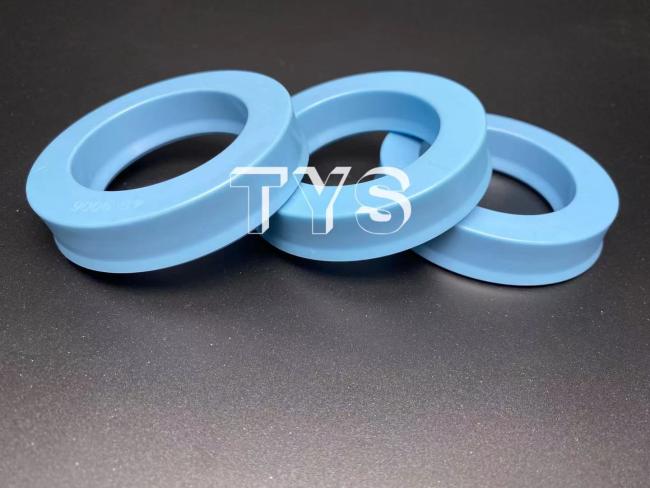

Dozer Hydraulic Rod Seals 4S-9006 Sky Blue 70*90*12mm
Dozer Hydraulic Rod Seals 4S-9006 Sky Blue 70*90*12mm
Dozer Rod Seal 4S-9006 Sky Blue High Quality Hydraulic Rod Seal
High performance pu seal ring
MAT:TPU
Technical Data:
Pressure: 40MPa
Temperature: -30-+80 °C
Sliding Speed: 0.5 m/s
Applicaton Examples:
Standard Cylinders
Machine Tools
Medium: Mineral oil based hydraulic fluids,barely flammable hydraulic fluids,water,air and others.
| IDI(blue) | |||||
| No | size(mm) | No | size(mm) | No | size(mm) |
| 1 | 40*50*6 | 26 | 70*90*12 | 51 | 105*125*12 |
| 2 | 45*55*6 | 27 | 75*85*6 | 52 | 105*125*15 |
| 3 | 45*65*12 | 28 | 75*88*10 | 53 | 105*120*10 |
| 4 | 50*60*6 | 29 | 75*90*9 | 54 | 110*125*9 |
| 5 | 50*60*8 | 30 | 75*95*12 | 55 | 110*125*10 |
| 6 | 50*65*9 | 31 | 80*90*6 | 56 | 110*130*10 |
| 7 | 50*63*10 | 32 | 80*90*8 | 57 | 110*130.12 |
| 8 | 50*70*12 | 33 | 80*93*10 | 58 | 115*130*9 |
| 9 | 55*65*6 | 34 | 80*95*9 | 59 | 115*130*10 |
| 10 | 55*65*8 | 35 | 80*95*10 | 60 | 115*135*12 |
| 11 | 55*68*10 | 36 | 80*100*12 | 61 | 115*135*16 |
| 12 | 55*70*9 | 37 | 85*100*9 | 62 | 120*135*9 |
| 13 | 55*70*12 | 38 | 85*100*10 | 63 | 120*135*10 |
| 14 | 55*75*12 | 39 | 85*105*12 | 64 | 120*140*10 |
| 15 | 60*70*6 | 40 | 90*105*9 | 65 | 120*140*12 |
| 16 | 60*73*10 | 41 | 90*105*10 | 66 | 125*140*9 |
| 17 | 60*75*9 | 42 | 90*110*12 | 67 | 130*145*9 |
| 18 | 60*80*12 | 43 | 95*110*9 | 68 | 130*150*12 |
| 19 | 65*75*6 | 44 | 95*110*10 | 69 | 130*150*16 |
| 20 | 65*78*10 | 45 | 95*115*12 | 70 | 140*155*9 |
| 21 | 65*80*9 | 46 | 100*115*9 | 71 | 150*170*12 |
| 22 | 70*80*6 | 47 | 100*115*10 | ||
| 23 | 65*85*12 | 48 | 100*120*12 | ||
| 24 | 70*83*10 | 49 | 100*120*15 | ||
| 25 | 70*85*9 | 50 | 105*120*9 | ||
In addition to the general requirements of the sealing ring material, the sealing ring should also pay attention to the following conditions:
(1) Full of elasticity and resilience;
(2) Appropriate mechanical strength, including expansion strength, elongation and tear resistance.
(3) The performance is stable, it is not easy to swell in the medium, and the thermal shrinkage effect (Joule effect) is small.
(4) It is easy to process and shape, and can maintain precise dimensions.
(5) Does not corrode the contact surface, does not pollute the medium, etc.
The most suitable and commonly used material to meet the above requirements is rubber, so the sealing ring is mostly made of rubber. There are many types of rubber, and new types of rubber are constantly appearing. When designing and selecting, one should understand the characteristics of various rubbers and choose them reasonably.
Structure and Groove form:
Xiamen TYS Seals is providing replacement seals for heavy Earthmoving, Mining & Construction
Equipments of all makes and models throughout the world. Seals are available for all types of Excavators,Dozers, Backhoe Loaders, Wheel Loaders, Motor Graders, Forklifts, and Cranes etc.
Our seals:Piston Seals,Rod Seals,Rotary Seals,Buffer Seals,Backup rings,Wear Rings,Dust Wiper Seal.
