MBC-4V368 4℃ Blood Bank Refrigerator | 368L, 360 Bag Storage
MBC-4V368 4℃ Blood Bank Refrigerator (368L)

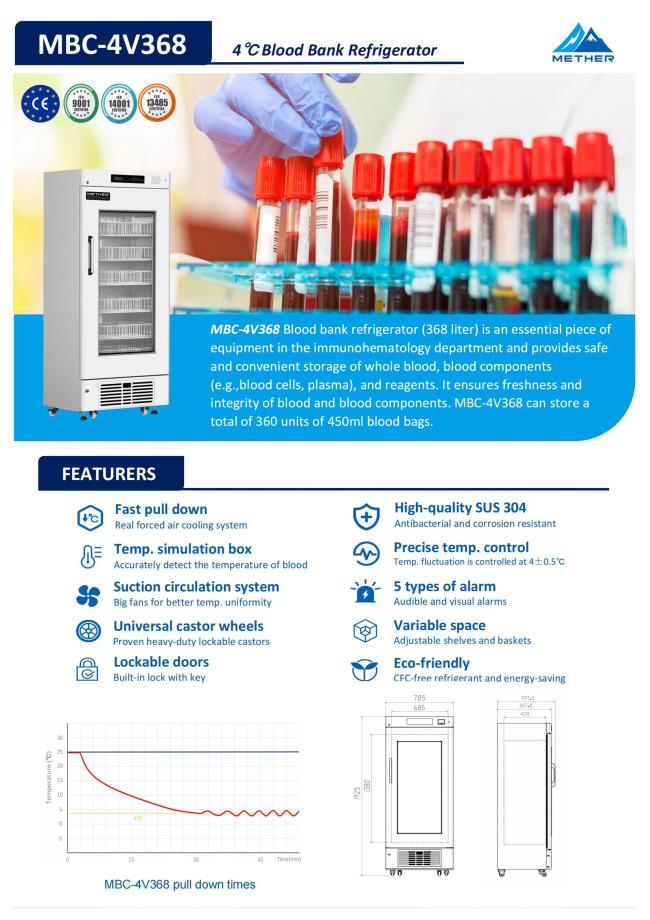

The MBC-4V368 4℃ Blood Bank Refrigerator is a professional-grade storage solution for blood banks, hospitals, and research facilities. With an effective capacity of 368 liters, it securely stores up to 360 units of 450ml blood bags. Its advanced refrigeration system ensures precise temperature control at 4±0.5℃, safeguarding the quality and integrity of whole blood and blood components.
Key Features
-
Temperature Accuracy: Maintains stable 4±0.5℃ with high-precision dual sensor system
-
Fast Cooling: Real forced-air circulation with large fans for rapid pull-down and uniform chamber distribution
-
Comprehensive Safety: 5 alarm functions (high/low temperature, door ajar, power failure, controller malfunction, system fault) with both audible and visual alerts
-
Optimized Storage: Adjustable stainless-steel shelves, detachable baskets, acrylic inner doors, and heated foamed glass door
-
Durable Construction: Built with SUS 304 stainless steel, antibacterial and corrosion-resistant, equipped with heavy-duty lockable castors and leveling feet
-
Data & Traceability: Integrated thermal printer and USB interface for secure recording and export of temperature data
-
Eco-Friendly Design: CFC-free refrigerant and energy-saving operation
- Large storage capacity 66*450ml blood bags
- Individual Arcylic inner doors
- blood bags Reliable control system 4±1°C
- Forced-air cooling system, frost-free
- Build-in back-up battery: 72 hours power failure alarm
- Wide voltage range, 187V~242V available
- 5 visual and audible alarms
- Accurate microprocessor controller to ensure consistent cabinet temperature 4±1°C
- Specially designed forced-air cooling system to ensure frost-free cabinet and good temperature uniformity
- Three layer toughened glass door with heater to avoid condensation
- 304 stainless steel inner chamber for friendly using and easy cleaning
- Wide available voltage range: 187V~242V
SAFETY GUARANTEE
- Safety door lock and controller setting password to prevent unauthorized access
- Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 72 hours without AC power
- Inner doors and auto on/off cooling fan to prevent cold air from leaking out when the door is opening
- Visual and audible alarm system: High/low temperature, power failure, sensor error, door ajar, low battery.
- Power failure protection: turn on delay of the cooling system after power failure
- Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when controller or two sensor failed
- Temperature printer: print current inside temperature automatically per 10 minutes
- 4 casters with stopper for easy moving and fixation
- 4 adjustable shelves and 12 blood baskets for easy using
- Special designed service-free drainage system ensure no water in the cabinet
- Standard 25mm test hole for easy connecting to temperature monitoring systems
- Automatic on/off LED light with manual switch on control panel
- Imported brand compressor work with CFC-Free environmental refrigerant.
- High density insulation foam layer with better heat preservation effect.

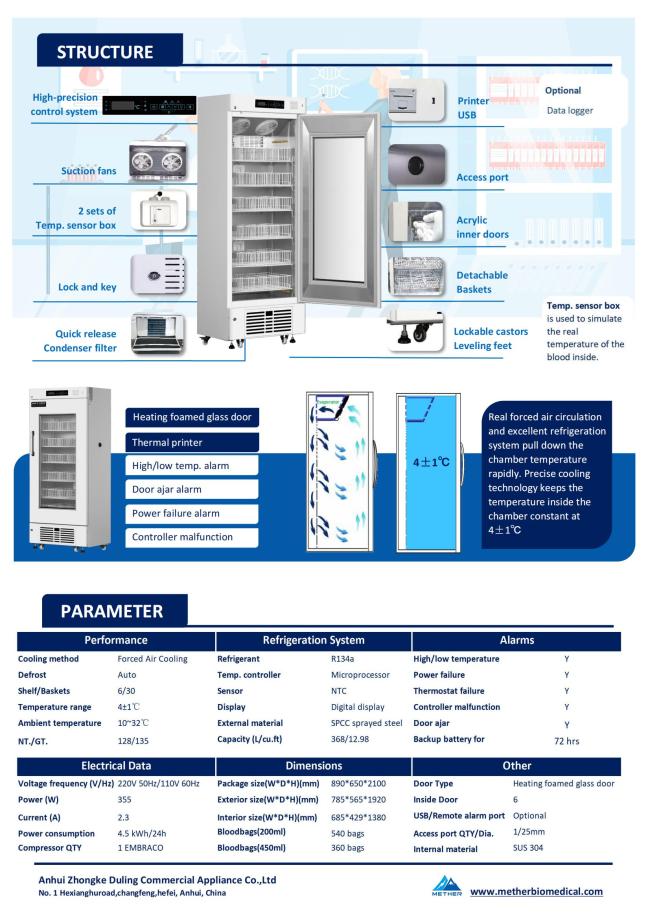

| Model | MBC-4V368 | |
| Specificaitons | Shelf/drawer | Shelves/4 |
| Cooling | Forced -air Cooling | |
| Defrost | Auto | |
| Refrigerant | R134a | |
| Power consumption(kWh/24h) | 4.28 | |
| Noise(db) | 51.2 dB(A) | |
| Ambient temperature(ºC) | 10~32ºC | |
| Temperature range(ºC) | 4±1ºC | |
| Cooling system | Compressor brand/QTY | EMBRACO/1 |
| Sensor | NTC | |
| Temperature controller | Microprocessor | |
| Display | Digital display | |
| Power | Voltage/frequency(V/Hz) | 220/50Hz |
| Power(W) | 325 | |
| Current(A) | 2.2A | |
| Material | Inside material | Stainless steel |
| Outside material | Color sprayed steel | |
| Insulation | PURF | |
| Size | Capacity(L/cu.ft) | 368/12.98 |
| Bloodbags(450ml) | 200 | |
| NT./GT.(kg) | 128/135 | |
| Exterior size(W*D*H)(mm) | 785×565×1920 | |
| Interior size(W*D*H)(mm) | 685×429×1380 | |
| Package size(W*D*H)(mm) | 890×650×2100 | |
| CBM | 1.21 | |
| 20GP/40GP/40HQ | 21/44/44 | |
| Alarm | High/low temperature | Y |
| Power off | Y | |
| Temperature controller malfunction | Y | |
| Backup battery malfunction | Y | |
| Ambient temperature | 10~32ºC | |
| Power failure backup system(alarm) | 8h | |
| Accessories | Caster | Y |
| Outer door/Type | 1/Heating & Foam glass door | |
| Inner door | ||
| Test hole | 1/25MM | |
| Thermal Printer | Y | |
| Light | LED | |
| Temperature recorder | Optional | |
| Other | Qualifications | ISO9001,ISO13485,ISO14002,CE |
Anhui Zhongke Duling Commercial Appliance Co.Ltd is a direct sourcing manufacturer with core technology.
| Packing | Exporting package |
| Loading Port: | Shanghai/ Ningbo/Hefei |
| Shipment Term | EXW/FOB/CFR/CIF |
| Payment Term | 100% TT Before Delivery |
