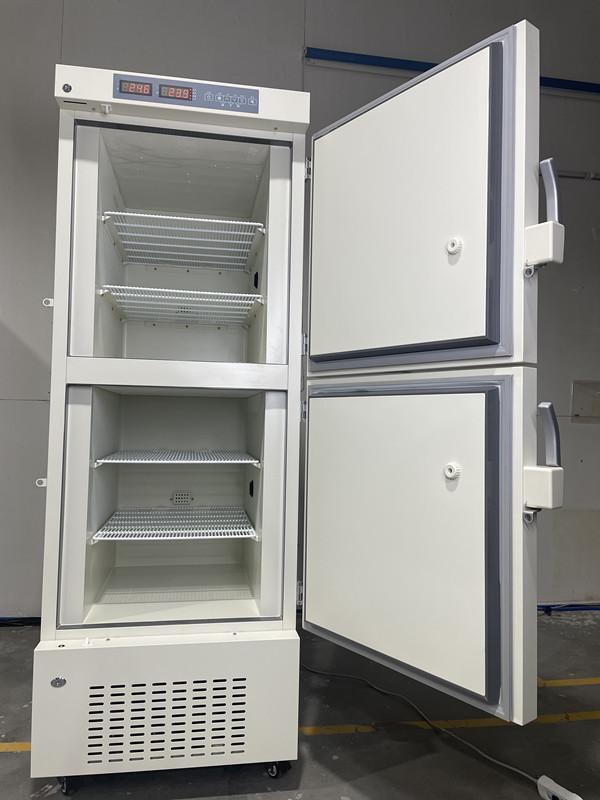

358L Capacity Minus 40 Degrees 12 Drawers Deep Biomedical Vaccine Freezer With Corrosion Proof Cabinet
358L 12 Drawers Standing Deep Freezer With Dual Freezer Systerm
Key Points
- Microprocessor control, adjustable temperature range: -10CºC to -25ºC
- LED digital display and increment at 0.1ºC
- Independent inner door to avoid more cooling leaking out, and provide more stable inside temperature performance
- High density CFC-Free urethane foam insulation.
Safety
- Multiple malfunction alarms :high and low temperature , sensor error, power off, temperature controller malfunction, door ajar alarms.
- Alarm indications: audible buzzing alarm and visual flashing light alarm
- Corrosion proof cabinet interior design
- Power failure protect: the device would be attack by the high current when all devices restart simultaneously, the start-delay function would protect device from the damage
Reliability
- Optimized refrigeration system designed to maximize cooling effect and temperature uniformity
- LED digital display for clear observation,
- Wide voltage tolerance design with applicable voltage range of 187-242V/AC
Perfect Design
- USB data logging and temperature recorder (optional).
- Build-in lock with safety and beauty
- Lockable caster design for customer to move as needed
Low Temperature Direct Cooling Systerm To Store Medicine Standing Deep Freezer 358L
Two separated cabinet with two compressor to control each storage room,it's safe to storage supplies.
| MDF-40V358 | ||
| Details | Shelf/drawer | Shelves/12 drawers |
| Cooling method | Direct cooling | |
| Defrost | Manual | |
| Refrigerant | R290 | |
| Energy consumption(kWh/24h) | 5.5 | |
| Noise(db) | 49 | |
| Ambient temperature(ºC) | 10~32ºC | |
| Temperature range(ºC) | -20~-40ºC | |
| Cooling system | Compressor brand/QTY | CUBIGEL/2 |
| Condenser | Wire tube | |
| Sensor | NTC | |
| Temperature controller | Microprocessor | |
| Display | Digital display | |
| Power Systerm | Voltage/frequency(V/Hz) | 220/50Hz |
| Power(W) | 310W | |
| Current(A) | 3 | |
| Material | Inside material | Color sprayed steel |
| Outside material | Color sprayed steel | |
| Insulation | PURF | |
| Dimension | Capacity(L/cu.ft) | 358/12.6 |
| NT./GT.(kg) | 138/178 | |
| Exterior size(W*D*H)(mm) | 720×830×1870 | |
| Interior size(W*D*H)(mm) | 466×636×625 | |
| Package size(W*D*H)(mm) | 780×920×1990 | |
| CBM | 1.43 | |
| 20GP/40GP/40HQ | 18/39/39 | |
| Alarm Systerm | High/low temperature | Y |
| Power failure | Y | |
| Sensor error | Y | |
| Filter check | / | |
| Temperature controller failure | Y | |
| Low battery | / | |
| Condenser clean | / | |
| High ambient temperature | Y | |
| Door ajar | Y | |
| Power failure backup system(alarm) | 8H | |
| Accessories | Foot | Y |
| Castor | Y | |
| Inside door | 12DRAWERS | |
| Test hole QTY/diameter | Y | |
| USB port | Y | |
| Remote alarm port | Optional |
| Packing Method | Carton packing with strong belt |
| 20GP/40GP/40HQ | 12/24/24 Pieces |
| Loading Port: | Shanghai/ Ningbo or other Main port of Guangzhou |
| Shipment Term | EXW/FOB/FCA/CNF/CFR/CIF |
| Payment Term | 100% TT Before Delivery |
Anhui Zhongke Duling Commercial Appliance Co.ltd is a high-tech enterprise which specialized in designing,developing and manufacturing medical Freezers more than 10 years, like ultra-low temperature freezers,deep freezers,blood platelet incubators and customized medical freezers, widely used in laboratory & bio-medical storage equipments, cold room, cold-chain logistics and customized instruments.
Our factory locates in Hefei city, Anhui province, China which is near Shanghai and Ningbo port, Annual output is around 18,000 sets Medical Refrigerators.
