728L Largest Capacity Minus 86 Degrees PURF Insulation Ultra Low Lab Freezer Fridge Economical
Price:
$ 5397-5911 per set
MOQ:
1
Delivery Time:
35 days
Brand:
METHER
Product Description

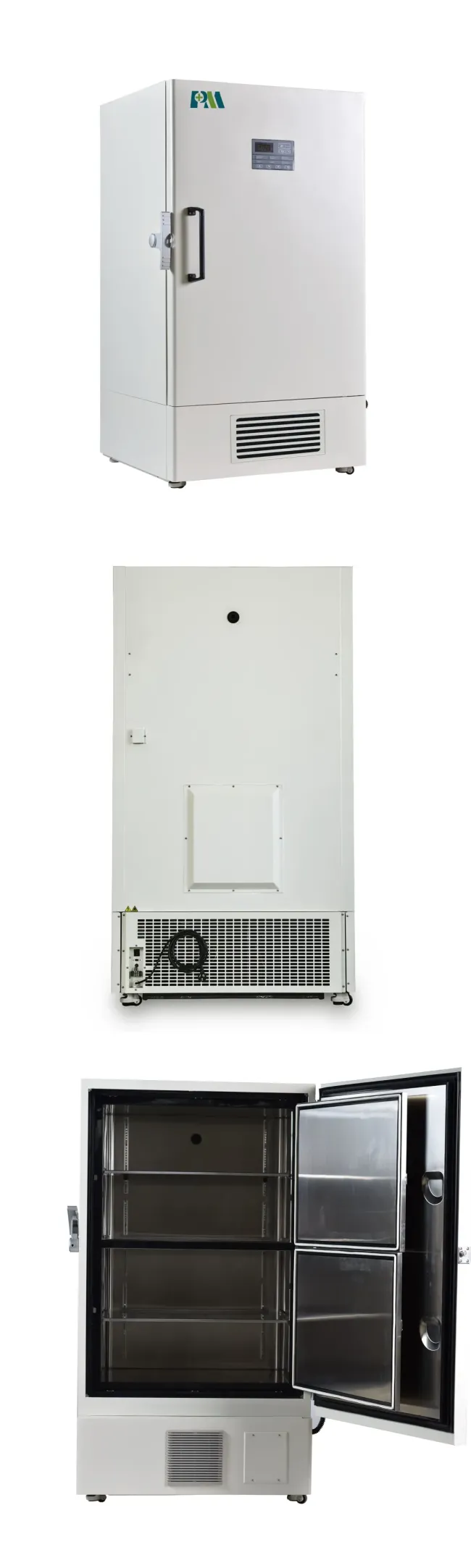

728L Economical -86 Degrees Stainless Steel Ult Freezer Lab And Hospital Equipment
-86°C Self-Cascade ultra low temperature freezer
Self-Cascade cooling system, cooling fast and easy to maintain, energy saving and environmental protection.
Self-developed mixed refrigerant, 50% energy saving,
Cooling speed increased by 40%.
Self-Cascade cooling system, cooling fast and easy to maintain, energy saving and environmental protection.
Self-developed mixed refrigerant, 50% energy saving,
Cooling speed increased by 40%.
FILED PROVEN RELIABILITY
- Unique insulated inner door design for four separate storage compartments to minimize frost buildup inside the chamber.
- Specialized control system design for a well-balanced operation of dual refrigeration system.
- Positive filed proven reliability record.
SAFETY
- Malfunction alarms including high and low temperature, power failure, sensor error, clean-filter, and extremely high ambient, abnormal voltage, thermostat failure, low battery, condenser clean, door ajar.
- Capable of producing two types of alarm outputs, audible buzzer and visible flashing light.
- Door open feature standard and USB port for temperature date downloading standard on upright models.
- Remote alarm contacts.
ENERGY SAVING
- Unique door seal design for the minimum loss of cold temperature during a door opening.
- High performance VIP insulation panels to minimize cabinet heat gain and to improve temperature stability.
- HC refrigerant with better efficiency and less energy cost.
KEY DESIGN FEATURES
- Microprocessor-controlled system designed for range of -40°C to -86°C for cabinet space with 1°C increment.
- Depending on the load demands and ambient conditions, one or both refrigeration systems will operate on demand, ensuring the samples are fully protected under the worst possible condition.
- Optional temperature recorder, storage racks and box.
INSTALLATION AND APPLICATION
- Wide rage operating voltage system from 187V to 242V designed to allow units installed in areas with poor voltage condition
- Suitable for 10°C to 32°Cambient temperature.
CO2 & LN2 BACKUP SYSTEM
- Independent equipment CO2 back up system, LN2 back up system a backup refrigeration system for Ultra-Low Temperature Freezer failures and power outages.
- The backup refrigeration system consists of a control system and a supply connection System.
- Adjust the solenoid Valve's On-off according to its own temperature control probe.A liquid nitrogen tank or liquid carbon dioxide tank that is connected by a solenoid valve as a Reserve.
- The solenoid valve is powered by an internal rechargeable battery.
| Model | MDF-86V728E | |
| Specificaitons | Shelf/drawer QTY | Stainless steel shelf/3 |
| Cooling | Direct cooling | |
| Defrost | Manual | |
| Refrigerant | Mixed-gas | |
| Power Consumption(kWh/24h) | 20 | |
| Noise(db) | 50 | |
| Ambient temperature(ºC) | 10~32ºC | |
| Temperature range(ºC) | -40~-86ºC | |
| Cooling system | Compressor brand/QTY | SECOP/2 |
| Sensor | PTC | |
| Temperature controller | Microprocessor | |
| Display | Digital display | |
| Power | Voltage/frequency(V/Hz) | 220/50Hz |
| Power(W) | 1400W | |
| Current(A) | 8.8 | |
| Material | Inside material | Stainless steel |
| Outside material | Color sprayed steel | |
| Insulation | PURF | |
| Size | Capacity(L/cu.ft) | 728/25.7 |
| NT./GT.(kg) | 374/394 | |
| Exterior size(W*D*H)(mm) | 1229×1012×1994.5 | |
| Interior size(W*D*H)(mm) | 963×571×1350 | |
| Package size(W*D*H)(mm) | 1320×970×2185 | |
| CBM | 2.79 | |
| 20GP/40GP/40HQ | 10/21/21 | |
| Frozen Racks | Racks | 24(5*4/6*4) |
| Boxes (2 Inches) | 504 | |
| Samples(2ml) | 50400 | |
| Alarm | High/low temperature | Y |
| Power failure | Y | |
| Abnormal voltage | Y | |
| Sensor error | Y | |
| Filter screen check | Y | |
| Thermostat failure | Y | |
| Low battery | Y | |
| Condenser clean | Y | |
| High ambient temperature | Y | |
| Door ajar | Y | |
| Power failure backup system(alarm) | 72h | |
| Accessories | Castor | Y |
| Inside door | 2 | |
| Test hole QTY/diameter | 1/25MM | |
| USB port | Y | |
| Chart recorder | / | |
| Data logger | Optional | |
| Remote alarm port | Y | |
| Optional | CO2 back up system | Optional |
| LN2 back up system | Optional | |
| Other | Certification | ISO.CE |
Anhui Zhongke Duling Commercial Appliance Co.Ltd is a direct sourcing manufacturer with core technology.
| Packing | Exporting Plywood package |
| Loading Port: | Shanghai/ Ningbo/Hefei |
| Shipment Term | EXW/FOB/CFR/CIF |
| Payment Term | 100% TT Before Delivery |
