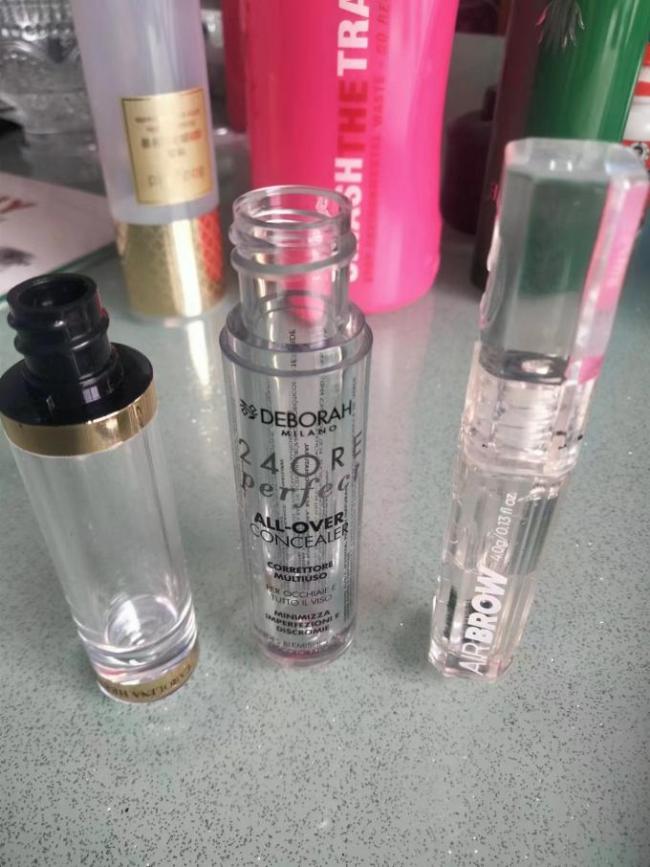

Plastic Tube Mascara Bottle Screen Printing Hot Stamping Machine CNC Rotary Up To 60pcs / Min

Main functions:

- Mechanical push tube feeding function can be configured.

- Servo-driven rotary table 10 servo-driven workstations rotate to realize various functions.

- Station 1: Successful identification of incoming materials and electrostatic dust removal function.

- Station 2: Flame surface treatment function.

- Station 3: Flame surface treatment function.

- Station 4: 1st color servo-driven screen printing function.

- Station 5: UV curing function: UV curing function.

- Station 6: The second color servo-driven screen printing function.

- Station 7: The UV curing function is a servo-driven screen printing function for the second color.

- Station 8: 3rd color servo-driven hot foil stamping function.

- Station 9: UV Curing Function UV Curing

- Station 10: Discharge and discharge fault detection function.

- Mechanical tube pulling and unloading function.

- Wireless flatbed control function.

Technical Parameters:

Printing Speed: Up to 60pcs/min (Actual printing speed will depend on the specific tubes, such as shape, weight and printing requirements )

Tube height: 60-220mm

Tube diameter: 15-70mm

Max printing area: L220mm X H180mm

Printing Accuracy: ±0.1mm

Liquefaction supply : 0.15Mpa

Liquefaction consumption: 5L/min

Air pressure : 6-7 bar

Air consumption: 1000L/Hr

Power supply : AC380V 3 Phase 5 Wire 50Hz / 60Hz

Rated power : 21KW

Optional Configuration:

• Unscrambling & feeding machine.

• Plasma surface treatment function.

• Varnishing function.

• Hot stamping function.

• LED-UV curing function.

• Finished product quality inspection function.
