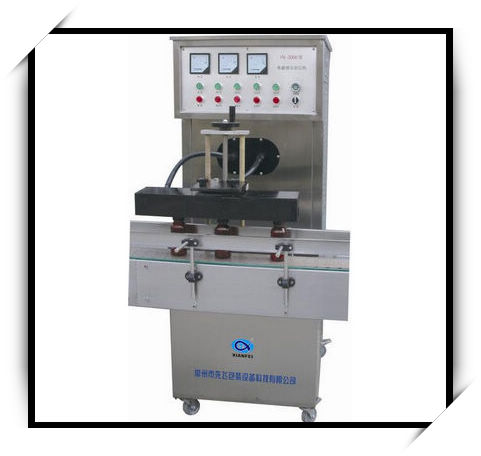

FK-3000 Aluminum Foil Sealing Machine 3.0KW Plastic Bottle Foil Sealing Machine
FK-3000 Aluminum Foil Sealing Machine 3.0KW Plastic Bottle Foil Sealing Machine
This machine uses the principle of electromagnetic induction sealing equipment to work, specifically for the pharmaceutical, chemical, pesticide, food, cosmetics, light industry, a variety of plastic bottles, glass bottles and other non-metallic container aluminum foil. With the product leak, moisture, security, oxidation, corrosion, preservation, and extended warranty period features, improve product level, to achieve the packaging integrity.
Performance:
Our company developed the FK-3000 Electromagnetic induction aluminum foil sealing machine drawing on the advantages of similar products, with water pressure protection, over-current alarm (press the reset, restart), beautiful shape, material stress, for the whole stainless steel, suitable for various working environment. Functional and stable performance, high efficiency, easy operation, fast, can match the variety of lines, the most suitable for use in sealing large and medium enterprises!
Specifications:
| Model | FK-3000 |
| Sealing Size | 10-50 mm (special specifications can be customized) |
| Filament voltage | 6.3 V |
| Gate current | 30-50 mA |
| Anode current | 200-300 mA |
| Anode voltage | 2800 V |
| Power source | Single phase AC220V ± 10% 60Hz |
| Output power | 3. 0KW |
| Sealing speed | 0-12 m / min |
| Cooling | Dual cooling from the circulation |
FK-3000 Aluminum Foil Sealing Machine 3.0KW Plastic Bottle Foil Sealing Machine
Working Principle :
This machine adopts single-phase 220V power supply through the transformer step-up, after the supply of silicon bridge rectifier tube amplification. Circuit inductance and capacitance form a parallel oscillator, high frequency magnetic field generated by the sensor board, when the cap gasket built with aluminum foil bottle through a magnetic field, eddy current in the aluminum foil on the instantaneous heat, heat stress in the aluminum foil tightly affixed under the box on the bottle. Meanwhile, the pads were evaporated on the paper absorbs the glue, aluminum foil and paper that is automatically separated. The sealing tightness, it is widely used in the product moisture, security and other packaging to improve the product level.
What services can Changzhou Xianfei Packing Equipment Technology Co., Ltd. provide for you?
1. Product inspection
We have our own factory and quality control department, and we will check carefully to ensure the quality of the products before sending them to our customers
2. Sample services
We can send you a video of the machine in action.Welcome to visit our company and have a look at the machines being produced in our factory
3. Customization services
A: We can customize the machine according to the mechanical power, materials and bottles you provide
B: We can also offer you some professional advice on machinery.As you know, we have been in the machinery business for 16 years.
4. About install
We can provide installation.There are two options.
The first option: We can send our engineers to your company for debugging and maintenance, and your company will bear the cost of air ticket, visa, accommodation, labor and other expenses for this trip.
Option 2: Offer an online service.
