IP68 Intelligent Explosion Proof Electric Actuator High precision
Price:
Negotiated Pricing
MOQ:
1 SET
Delivery Time:
As Appropriate
Brand:
CHONGQING CHUANYI, SICC
Product Description
C SERIES INTELLIGENT ELECTRIC-HYDRAULIC ACTUATOR
Intelligent Electric Actuators of New Generation for Industrial Pipeline Safety Solutions
- Flexible positioning
- Flexible control configurations
- Complete self-diagnosis and controlled operation of safety parameters
- Dual modular mechanical and electrical design
Main Technical Parameters:
| Control Module | Intelligent Frequency Module / Intelligent Control Module |
| Communication protocols | PROFIBUS / FF bus / HART bus / MODBUS bus e |
| Explosion protection level | Exd II CT4 Gb / Exd II BT4 Gb / Ex db IIB+H2 T4 Gb / Ex tb IIIC T130°C Db |
| Basic error | ±1% |
| Protection level | IP66/IP67/IP68 |
| Ambient temperature | -25°C to 70°C / -40°C to 70°C (-60°C minimum ambient temperature) |
| Relative humidity | <95% (non-condensing) |
| Electricity supply | 380Va.c.(340V~440V),50Hz/60Hz 3PH / 220Va.c.(187V~242V),50Hz 1PH |
Intelligent Electro-hydraulic Actuators
- Loss of power safety and loss of power action
- Segmented speed control function
- Fire recognition protection
- Quick switch function
- High precision, high frequency regulation
Main Technical Parameters:
| Torque range | 1000 N.m - 250000 N.m |
| Thrust range | 10 KN - 3500 KN |
| 0 Control type | switching type, regulating type |
| Power supply |
three-phase380×(1±10%)Va.c.,50±5Hz； single phase220×(1±10%)Va.c.,50±5Hz； |
| DC | 24×(1±10%)Vd.c. |
| Protection level | IP66/IP67/IP68 |
| Explosion protection level | Exd ⅡBT4 Gb ,Exd ⅡCT4 Gb |
| Basic error | ±0.2％/±0.5％/±1％ |
| Deadband | 0.1% to 5% adjustable |
| Ambient temperature | standard type: -25°C to +70°C |
| Low temperature type | -45°C to +70°C |
| Electrical interface | 1×NPT 1-1/2",2×NPT 3/4" |
| Communication protocols | PROFIBUS / FF bus / HART bus / MODBUS bus, etc. |
Instruction Table of Mode Selection Switch Functions
| Mode | Fuctions |
| Remote | Used for remote 4mA～20mA d.c. control/remote switching value control |
| O/S | Location Iocking (ineffective for remote and local operation) |
| Local | Be able to implement the configuration adjustment through control panel of this machine ( set the location, parameters and diagnose ) |
| LCD display | Mixed display of operation mode as well as parameter letter and figure |
| LED | Green LED displays “available main power source”；Green LED displays “failure” |

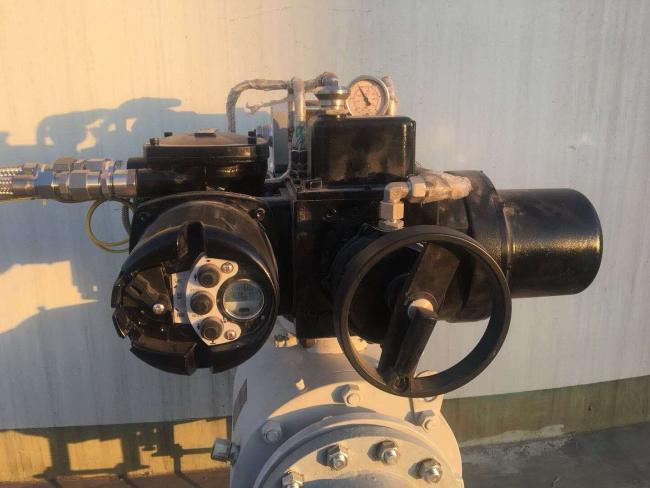

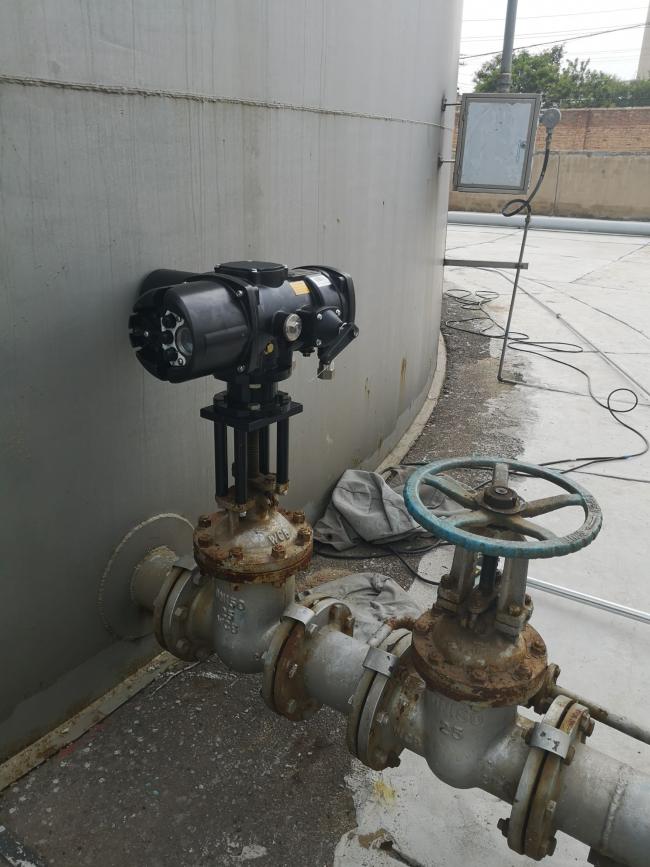

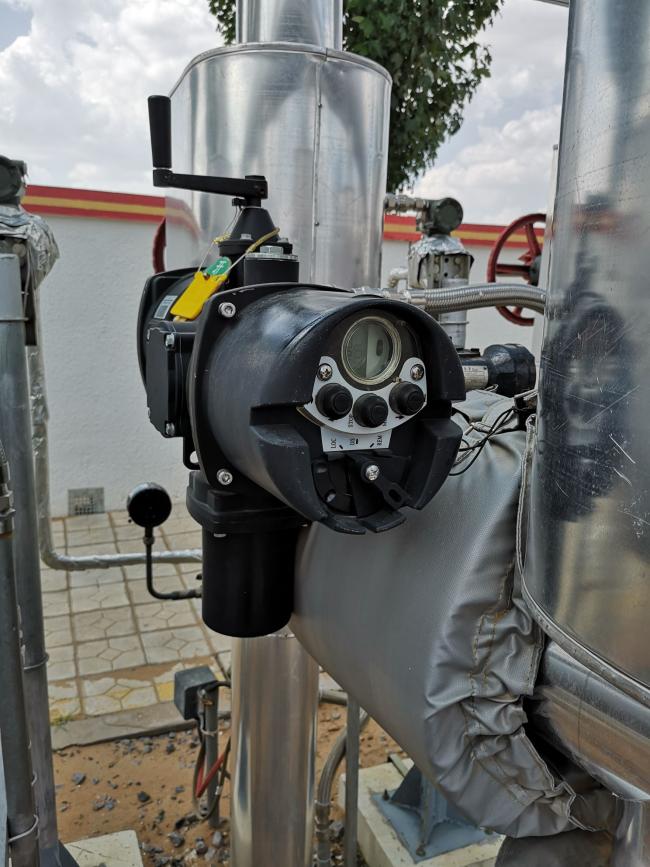

Field Application:
