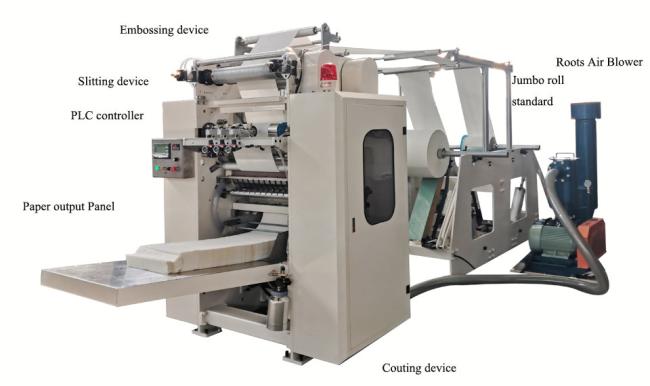

Xinyun 3HP Compressor Paper Towel Making Machine Interfolding 35kw
V folding hand towel machine process paper material after embossing, cuting off, interfolding become V fold, The products are widely used in hotels, office and kitchen and so on, convenient health. This machine can folding, slitting, counting, with high speed, output orderliness.
Function and characteristics
1. Production speed :(60~100)m/min
2. Embossing unit: Steel to steel embossing unit.
3. Pneumatic broken paper automatic separation, convenient wear paper.
4. Using synchronous belt transmission, transmission ratio is accurate, low noise.
5. Base paper adapt range: 33-45g/m2 (single ply)
6. To be order two layers glue lamination .(Optional)
|
Model
|
XY-BT-288V
|
|
Unfold size of finished products
|
210(L)X230±2mm Other sizes are available
|
|
Folded size of finished products
|
105(L)X230±2mm Other sizes are available
|
|
Raw material inner core diameter
|
76.2mm (Other sizes are available)
|
|
Production speed
|
900 sheets/line/min
|
|
Power
|
11-45Kw(380V 50Hz three phase)
|
|
Programmable controller
|
PLC computer controller
|
|
Folding type
|
Vacuum suction " V" fold
|
|
Transmission unit
|
Timing belt and flat belt
|
|
Counter
|
Ink marked
|
|
Embossing unit
|
Steel to steel
|
|
Slitting unit
|
Pneumatic dot slitting
|
|
Pneumatic system
|
3HP Air compressor, mini air pressure 5 kg/cm2 (provided by customer)
|
|
Overall dimension
|
Depends on Machine Model
|
|
Weight
|
Depend on the size and configure
|
Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2)Kitchen Towel Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4)Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Packing:
In wooden pallet
Most of the electrical and electronic components are equipped as per export standard.
Guarantee period:
One year for mechanical parts, after-sales service is lifelong , and we offer the spare parts at preferential price long.
Technical support:
We can send the technician to your factory to install the machines and
train your workers. And you shall pay salary(100USD/day) and round-trip air tickets from
China factory to your factory, the charge of visa, food ,transportations and accommodation in your city.
Payment term:
30% down payment should be paid by T/T, the 70% balance should be paid by T/T or confirmed irrevocable L/C by draft at sight.
Material:
The customer can get the material from their local market or we can recommend supplier to you.
Lead time:
Within 60-90 days inform the customer to inspect the machine at seller’s site after receiving the down payment and the confirmation of machine drawing.
