Leaflets Fold 7.5KW Automatic Carton Box Packing Machine Xinyun

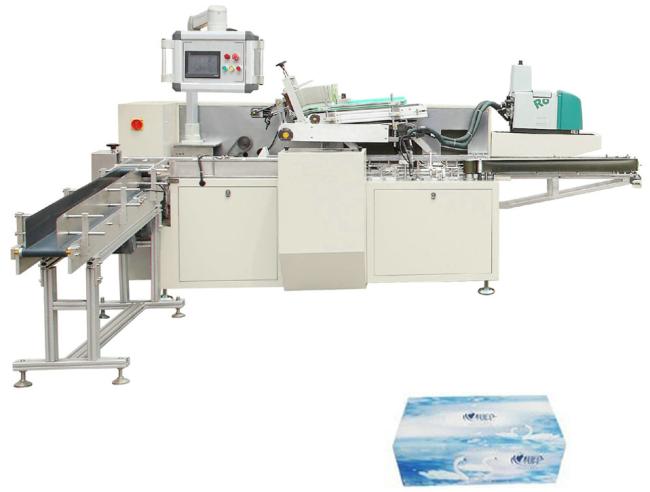

XY-GU-388 High Speed Automatic Facial Tissue Carton Box Packing Machine
Outline
1.It is suitable for packing facial tissue paper and other related similar content compact with automatic leaflet folding, box opening and loading, then sealing the box.
2.It adopts PLC control, photoelectricity supervision to coordinate with every parts.
3.Automatic stop and trouble display when machine running exceptional in order to solving troubles in time.
4.This machine can be used separately, and also can connect with facial tissue log saw cutting machine on line.
Video Link: https://youtu.be/RSlX1gRAnXE
Feature And Functions
1. Rejection automatically if no products, nonstandard height or lack of leaflet.
2. Stop automatically if incorrect position of products into carton and if no cartons or out of leaflets continuous.
3. Protecting automatically for overloading.
4. Automatically displaying device for speed and finished products counting.
Technical Parameters
| Packing speed | 50-80 boxes/min | |
| Packing material | Box requirement | 300-450g/square meter |
| Size of box(L*W*H) | (100-230)* (30-120)* (20-90)mm | |
| Air compressor | Air supply | 0.5-0.8mpa(provide by clients) |
| Air consumption | 180-210L/min | |
| Total Power | 7.5KW (380V 50HZ three phase) | |
| Overall dimension(L*W*H) | 3400*1400*1700mm | |
| Weight | 2000KG | |

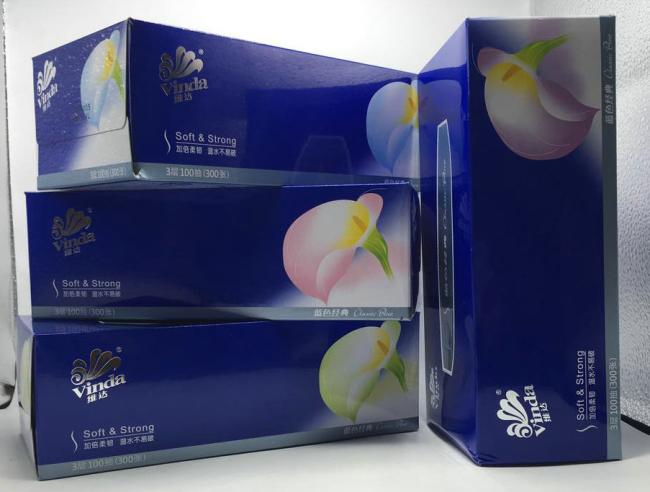

Finished Products
Why choose machines from Fujian Xinyun Machinery Development Co.,Ltd?
1. Good quality of machine with reasonable price.
2. Good service:Any question from customer will by replied within 24 hours.
3. For all the machines we sell, we will offer one-year guaranteen for free and all life-long maintenance.
4. We deliver a USB dish of Operation Video with machine, it will help customers to work the machine easily.
5. After the machines arrive, the sellers shall send technicians to install the production line(if need).

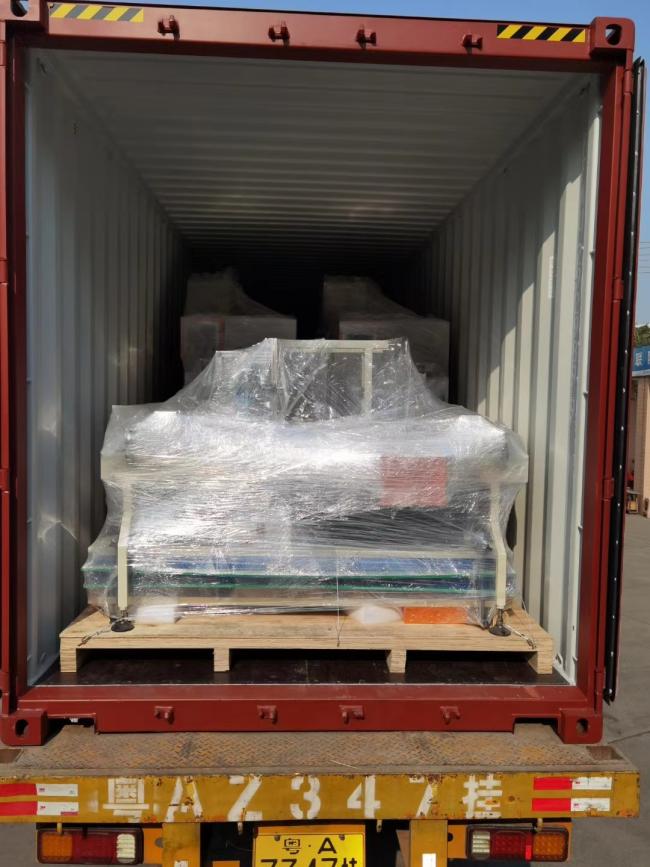

Packing And Delivery
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4)Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
