380V PLC Controlled High Speed Toilet Paper Rewinding Machine 230M/Min
380V PLC Controlled High Speed Toilet Paper Rewinding Machine 230MMin
Automatic toilet paper rewinding machine is for producing toilet paper roll and kitchen towel roll . Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation device, end cutting and spray the tail glue become a log. and if Customer want, we can add color printing device,It is not recommended to use color printing on toilet paper.Then it can working with cutting machine and packing machine to produce the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost.,and can be faster.And Our machine can special-made according to clients' requirements.
Function and Features:
1. Automatic core feeding system, automatic log pusher after rewinding, then rewinding the new log again.
2. Automatic edge-trimming, core feeding, glue spraying and sealing synchronously in one time. Leaving 10-18 mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
3. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.

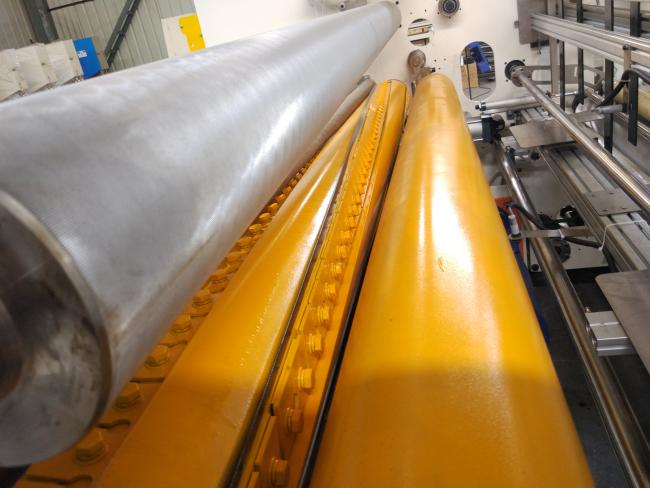

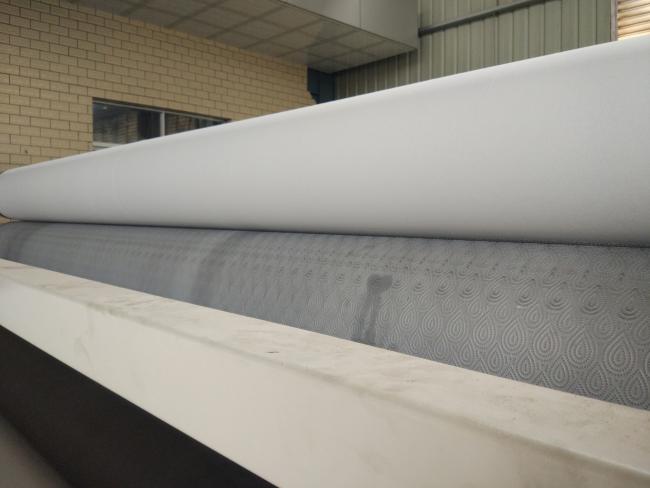

4. Embossment Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns
5. Adopt jogging switches for wearing the paper, easy and safe to operate.
Video Link: https://youtu.be/7k5naqyUNz4
| perforation distance | 4 anvil blades |
| production speed | 200-230m/min |
| unwind stands | 1 or 3 stands |
| main power | 380v 50hz 14-45KW |
| dimension | depend on the model |
| weight | 6-15T |
| Raw material | jumbo roll |
| Product name | toilet roll paper and maxi roll paper |
| Machine type | XY-TQ-B |
| Color | white |
| size | depend on the type |
| Embossing roller material | steel |
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Welcome to contact us to get more details !
We can design the machine according to your request.
