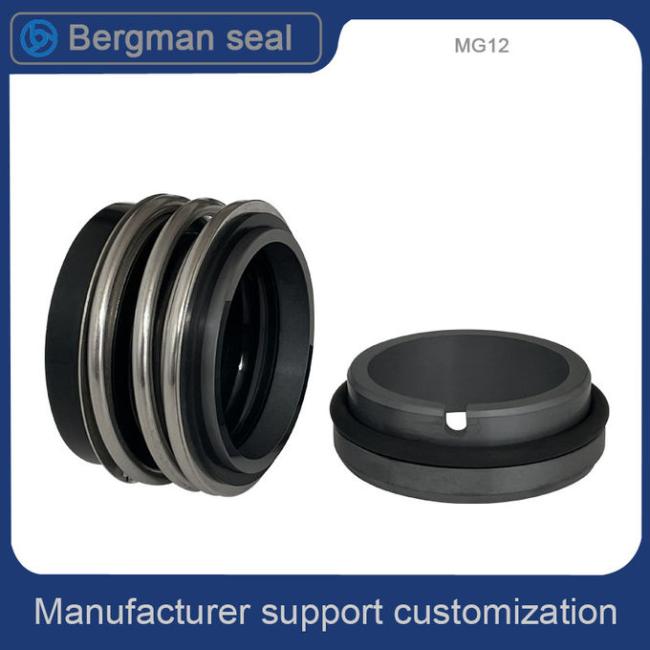

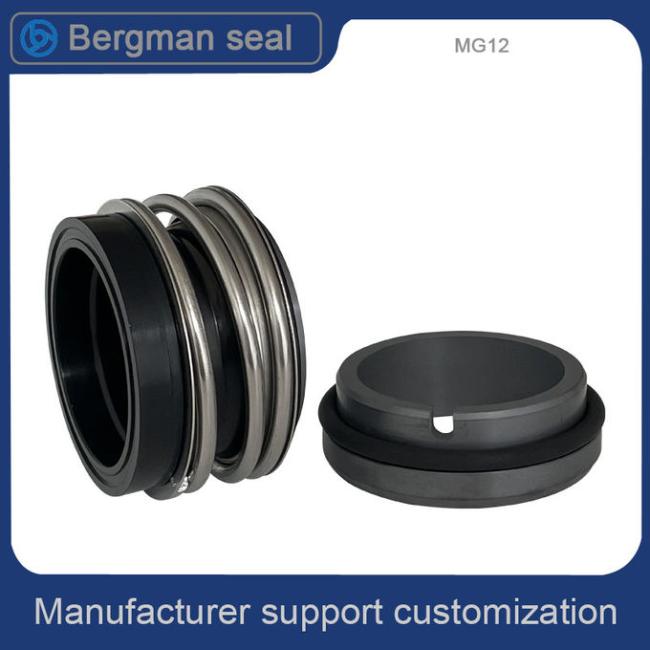

MG12 MG1S20 Unbalanced Pump Mechanical Seal 100mm G9 BP Shaft
Unbalanced Burgmann Mechanical Seal MG12 MG1S20 100mm G9 BP For Stock Pumps
Mechanical Seal Type Burgman MG12 MG1S20 Pump Mechanical Seal G9 BP
Model NO.
MG1S20
Type
MG12
Balance
Unbalanced
Rotary Ring
Ceramic/Sic
Stationary Ring
Plastic Carbon/Carbon/Sic
Spring
SUS304/SUS316
Secondary Seal
NBR/EPDM/HNBR/
Trademark
Bergman
Transport Package
Carton
Specification
12mm to 100mm
Origin
China
HS Code
84842000
ELASTOMER BELLOW MG12 MG1S20 SERIES MECHANICAL SEALS
1.Applicable Range:
|
Pressure in seal chamber: |
0-0.8MPa |
|
Temperature in the seal chamber: |
-25ºC-----200ºC |
|
Linear Velocity: |
≤ 10m/s |
|
Medium: |
water,polluted water,oil and minor corrosive liquid. |
|
Static ring code: |
G60 G6 G4 G9 |
2.Features:
| For plain shaft |
| Elastomer bellows rotating |
| Independent direction of rotation |
| Shaft protection over entire seal length |
| High flexibility due to wide offer on materials |
| Dimension adaptions and additional seats available |
3.Applications:
Process industry
Chemical industry
Pulp and paper industry
Water and waste water technology
Stock pumps
Circulating pumps
Submersible pumps
Water and waster water pumps
4.Materials:
Stationary Ring: , Ni-binder Tungsten Carbide, Silicon Carbide Reaction Bonded, Ceramic(Alumina), Silicon Carbide Sintered Pressureless
Rotary Ring: Resin Impregnated Carbon Graphite(), Antimony Impreg. Carbon Graphite, Silicon Carbide Sintered Pressureless, Silicon Carbide Reaction Bonded Secondary Seal: Fluorocarbon Rubber(), Nitrile(NBR), Ethylene Propylene(EPDM)
|

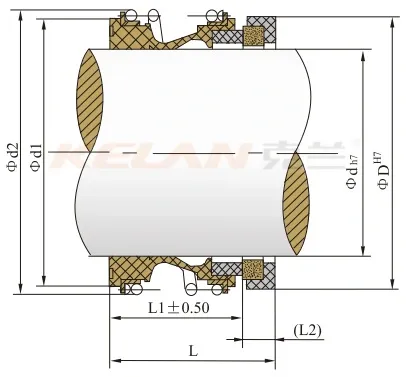

Model(mm) |
d |
d1 |
d2 |
D |
L |
L1 |
L2 |
|
MG12-14 |
14 |
26.5 |
29.0 |
25 |
23.6 |
17.0 |
6.6 |
|
MG12-18 |
18 |
29.0 |
32.0 |
33 |
27.0 |
19.5 |
7.5 |
|
MG12-20 |
20 |
33.0 |
38.0 |
35 |
29.0 |
21.5 |
7.5 |
|
MG12-25 |
25 |
38.0 |
42.5 |
40 |
30.5 |
23.0 |
7.5 |
|
MG12-30 |
30 |
44.0 |
49.0 |
45 |
34.0 |
26.5 |
7.5 |
|
MG12-35 |
35 |
50.0 |
57.0 |
50 |
36.0 |
28.5 |
7.5 |
|
MG12-40 |
40 |
55.0 |
62.0 |
58 |
39.0 |
30.0 |
9.0 |
|
MG12-45 |
45 |
60.0 |
68.0 |
63 |
39.0 |
30.0 |
9.0 |
|
MG12-50 |
50 |
65.0 |
74.0 |
70 |
40.0 |
30.5 |
9.5 |
|
MG12-55 |
55 |
72.0 |
81.0 |
75 |
46.0 |
35.0 |
11.0 |
|
MG12-60 |
60 |
79.0 |
88.5 |
80 |
49.0 |
38.0 |
11.0 |
|
MG12-65 |
65 |
84.0 |
93.5 |
85 |
51.0 |
40.0 |
11.0 |
|
MG12-70 |
70 |
90.0 |
99.5 |
92 |
51.5 |
40.0 |
11.5 |
|
MG12-75 |
75 |
95.0 |
107.0 |
97 |
51.5 |
40.0 |
11.5 |
|
MG12-80 |
80 |
100.0 |
112.0 |
105 |
52.0 |
40.0 |
12.0 |
|
MG12-85 |
85 |
107.0 |
120.0 |
110 |
55.0 |
41.0 |
14.0 |
|
MG12-90 |
90 |
114.0 |
127.0 |
115 |
59.0 |
45.0 |
14.0 |
|
MG12-95 |
95 |
119.0 |
132.0 |
120 |
60.0 |
46.0 |
14.0 |
|
MG12-100 |
100 |
124.0 |
137.0 |
125 |
61.0 |
47.0 |
14.0 |
Fixing and Applying Directions of Mechanical Seals
1. When installing the mechanical seals,the shaft(shaft sleeve),seal chamber,seal face as well as the mechanical seal
must be cleaned in order to keep from any medium to sealing part.
2. When conveying medium of over high or low temperature,with medium which are easy catch fire,easy for explosion.
Related mechanical seal standards must be referred to take appropriate measures such as quench,rinsing,coolong and
filtrating.
3. Appropricate lubrication must be choosen when mechanical seal is installed.The installment size of the mechanical
seal must be guaranteed to the installment instruction.
4. Before the machine starts running,the hermetic compartment shall be full of medium and well lubricated.Dry friction
which may lead to the damage of the air-tightness is strict forbidden.
