HSS cobalt Drill Bits for Stainless Steel with 135 Split Point High Speed Steel Drills

HSS cobalt Drill Bits for Stainless Steel with 135 Split Point High Speed Steel Drills

high speed drill bits of Features:

The M35 drill bit is made from M35 high-speed steel, which is a type of tool steel known for its hardness, wear resistance, and ability to retain its cutting edge at high temperatures. This makes it a durable and long-lasting option for drilling.

1 this drills have flutes and cutting points on both ends. this allows the user with the ability to reverse the drill and

utilize both ends.
2 135 split point starts drilling immediately.
3 twice as many holes as a single end drill bit.
4 used primarily in small machine shops and automatic body shops for drilling holes for sheet metal screws or rivets.
5 for drilling thin sheet metals, steel sheet, sheet brass, sheet aluminum and plastic sheets.

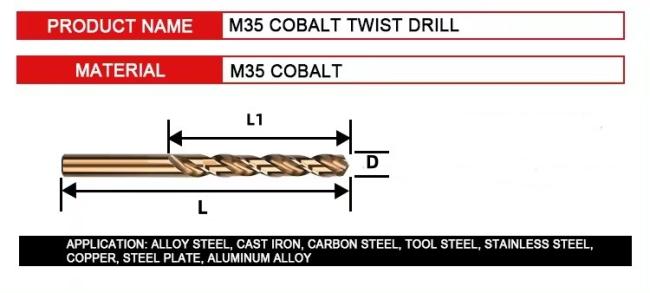

D	L	L1	D		L	L1	D	L	L1	D	L	L1
1.00	34	12	4.70		80	47	8.40	117	75	12.10	151	101
1.10	36	14	4.80		86	52	8.50	117	75	12.20	151	101
1.20	38	16	4.90		86	52	8.60	125	81	12.30	151	101
1.30	38	16	5.00		86	52	8.70	125	81	12.40	151	101
1.40	40	18	5.10		86	52	8.80	125	81	12.50	151	101
1.50	40	18	5.20		86	52	8.90	125	81	12.60	151	101
1.60	43	20	5.30		86	52	9.00	125	81	12.70	151	101
1.70	43	20	5.40		93	57	9.10	125	81	12.80	151	101
1.80	46	22	5.50		93	57	9.20	125	81	12.90	151	101
1.90	46	22	5.60		93	57	9.30	125	81	13.00	151	101
2.00	49	24	5.70		93	57	9.40	125	81	13.50	160	108
2.10	49	24	5.80		93	57	9.50	125	81	14.00	160	108
2.20	53	27	5.90		93	57	9.60	125	81	14.50	169	114
2.30	53	27	6.00		93	57	9.70	133	87	15.00	169	114
2.40	57	30	6.10		101	63	9.80	133	87	15.50	178	120
2.50	57	30	6.20		101	63	9.90	133	87	16.00	178	120
2.60	57	30	6.30		101	63	10.00	133	87	16.50	184	125
2.70	61	33	6.40		101	63	10.10	133	87	17.00	184	125
2.80	61	33	6.50		101	63	10.20	133	87	17.50	191	130
2.90	61	33	6.60		101	63	10.30	133	87	18.00	191	130
3.00	61	33	6.70		101	63	10.40	133	87	18.50	198	135
3.10	65	36	6.80		109	69	10.50	133	87	19.00	198	135
3.20	65	36	6.90		109	69	10.60	133	87	19.50	205	140
3.30	65	36	7.00		109	69	10.70	142	94	20.00	205	140
3.40	70	39	7.10		109	69	10.80	142	94
3.50	70	39	7.20		109	69	10.90	142	94
3.60	70	39	7.30		109	69	11.00	142	94
3.70	70	39	7.40		109	69	11.10	142	94
3.80	75	43	7.50		109	69	11.20	142	94
3.90	75	43	7.60		117	75	11.30	142	94
4.00	75	43	7.70		117	75	11.40	142	94
4.10	75	43	7.80		117	75	11.50	142	94
4.20	75	43	7.90		117	75	11.60	142	94
4.30	80	47	8.00		117	75	11.70	142	94
4.40	80	47	8.10		117	75	11.80	142	94
4.50	80	47	8.20		117	75	11.90	151	101
4.60	80	47	8.30		117	75	12.00	151	101
