32mm Metal Hole Saw Cutter Triangle Color Painting Cobalt Hole Cutter

HSS 32mm Bi-Metal Hole Saws Color Painting For 1 Inch Diameter Pipes

1. Problem: The Challenge of Material Versatility

Professional contractors often face "tool fatigue" when a single project involves multiple materials such as stainless steel, aluminum, thick timber, and PVC. Using standard bi-metal saws leads to three critical failures: teeth stripping upon hitting metal, excessive heat buildup causing the saw to bind, and inaccurate hole sizing due to poor concentricity.

2. Cause: Inadequate Metallurgy and Resonant Vibration

Most consumer-grade sets use M3 high-speed steel, which loses its hardness (anneals) once temperatures exceed 500°F (260°C). Furthermore, fixed-pitch teeth designs create harmonic resonance during large-diameter boring, causing the saw to "chatter," which results in jagged edges and potential damage to the workpiece.

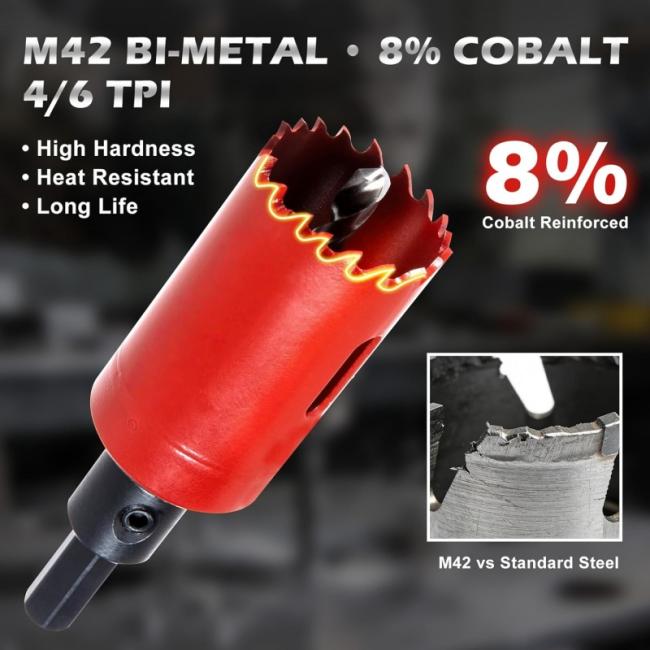

3. Solution: The M42 Cobalt Engineering Advantage

Our 16-piece M42 Cobalt Series is engineered for high-intensity industrial environments. By integrating 8% Cobalt into the HSS cutting edge, the teeth maintain a hardness of HRC 66-68 even at "red heat" temperatures. Combined with 4/6 TPI Variable Pitch technology, this set cancels harmonic vibration, delivering a "machine-finished" quality hole in a single pass.

4. Master Kit Configuration

This 16-piece set is curated for 100% coverage in commercial plumbing, electrical, and HVAC installations:

5. Differentiated Engineering Advantages

• Red-Hardness Advantage (Expertise):

  The M42 cobalt edge acts as a heat sink, allowing for continuous cutting in hard metals without edge degradation. This provides a 300% longer service life compared to standard M3 bi-metal sets in high-tensile metal applications.

• Dynamic Chip Clearance:

  Featuring Dual-Angle Speed Slots, our design allows for instant slug (core) removal. The oversized lateral windows facilitate rapid heat dissipation, preventing the saw from binding and reducing smoke buildup when boring through resinous woods.

• Structural Integrity (E-E-A-T):

  Large-diameter saws (up to 64mm) feature a Reinforced Anti-Torque Base Plate. This prevents the arbor holes from deforming under the high torque of industrial magnetic drills, maintaining a TIR (Runout) ≤ 0.28mm for precise, circular holes.

• Clean-Cut Finish:

  The non-linear tooth arrangement ensures that even in thin-walled materials or expensive wood veneers, the entry and exit points remain burr-free and splinter-free.

6. Application Scenarios

• Industrial Electrical MRO: Precise entries for 3/4" to 2-1/2" conduits in stainless steel enclosures.

• Mechanical HVAC: Creating clearance paths for copper and PVC main lines through structural headers.

• Commercial Locksmithing: Standard bores for deadbolts and cylindrical locksets in fire-rated doors.

• Marine Fabrication: Boring through fiberglass reinforced plastics (GRP) and thick aluminum alloy frames.

7. FAQ: Expert Technical Guidance

• Q: Why use M42 instead of TCT (Carbide) for this 16pc set?

  • A: M42 Bi-Metal offers superior toughness. While Carbide is harder, it is brittle; M42 can withstand the impact of hitting a hidden nail or screw without the teeth shattering, making it the more resilient choice for site work.

• Q: What is the recommended RPM for 64mm in Mild Steel?

  • A: For optimal tool life, maintain a speed of 80-95 RPM. For Stainless Steel, drop to 40-50 RPM and always use a cutting lubricant.

• Q: Will these saws fit my existing cordless drill?

  • A: Yes. The included arbors feature standard hex shanks (3/8" and 7/16") compatible with all professional cordless and corded drills.

8. Technical Quality Confirmation

• Metallurgy: Certified HSS M42 with 8% Cobalt content.

• Hardness Standard: Teeth HRC 66-68 / Body HRC 44-48.

• Welding: Vacuum Electron-Beam Fusion for a permanent, unbreakable bond.

• Precision: Total Indicator Runout (TIR) ≤ 0.28mm.
