13-Piece Brad Point Wood Drill Bit Set | 1/4" Hex Shank (1/8" to 1/2") | Precision Center Spur Wood Boring Kit for Hardwood, Plywood & PVC

Price Negotiable
Price: $0.45-1.5/set
MOQ: 500set
Delivery Time: 25-30 days
Brand: XRTOOLS
Product Description

1. Product Overview

Our 13-Piece Brad Point Wood Drill Bit Set is the definitive choice for professionals requiring exact hole placement and splinter-free results. Engineered with a precision Brad Point (Center Spur), these bits eliminate "walking" on smooth surfaces, ensuring your hole starts exactly where you intend.

Equipped with a 1/4" Hex Shank, this set is optimized for modern high-torque impact drivers and quick-change chucks. Whether you are working with dense hardwoods, interior plywood, or PVC, these bits deliver the industrial-grade performance required for furniture making, cabinetry, and general construction.

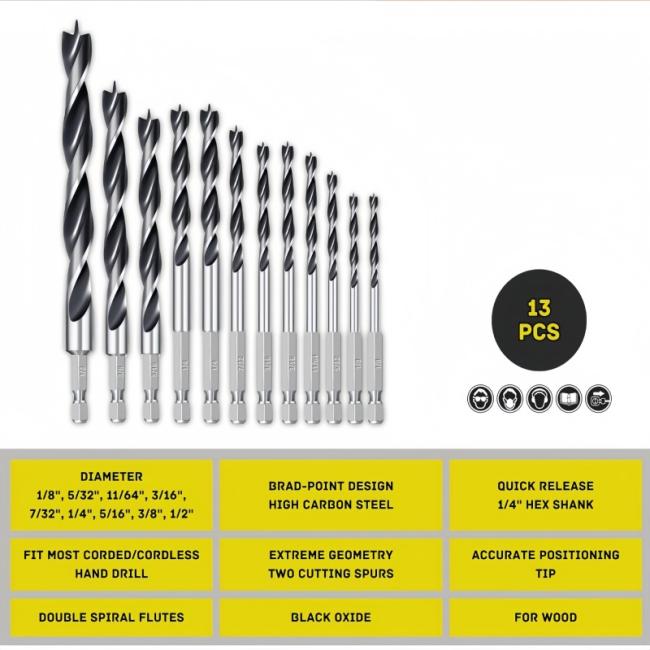

2. Technical Specifications & Size Chart



Each bit is precision-ground from high-density alloy steel and vacuum-heat-treated for maximum edge retention.





Fractional Size Decimal Equivalent Total Length Shank Type Target Materials
1/8" 0.125" 2.5" 1/4" Hex Hardwood / Softwood / PVC
9/64" 0.141" 2.7" 1/4" Hex Hardwood / Softwood / PVC
5/32" 0.156" 2.9" 1/4" Hex Hardwood / Softwood / PVC
11/64" 0.172" 3.1" 1/4" Hex Hardwood / Softwood / PVC
3/16" 0.187" 3.3" 1/4" Hex Hardwood / Softwood / PVC
13/64" 0.203" 3.5" 1/4" Hex Hardwood / Softwood / PVC
7/32" 0.218" 3.7" 1/4" Hex Hardwood / Softwood / PVC
15/64" 0.234" 3.9" 1/4" Hex Hardwood / Softwood / PVC
1/4" 0.250" 4.1" 1/4" Hex Hardwood / Softwood / PVC
5/16" 0.312" 4.3" 1/4" Hex Hardwood / Softwood / PVC
3/8" 0.375" 4.5" 1/4" Hex Hardwood / Softwood / PVC
7/16" 0.437" 4.7" 1/4" Hex Hardwood / Softwood / PVC
1/2" 0.500" 5.0" 1/4" Hex Hardwood / Softwood / PVC

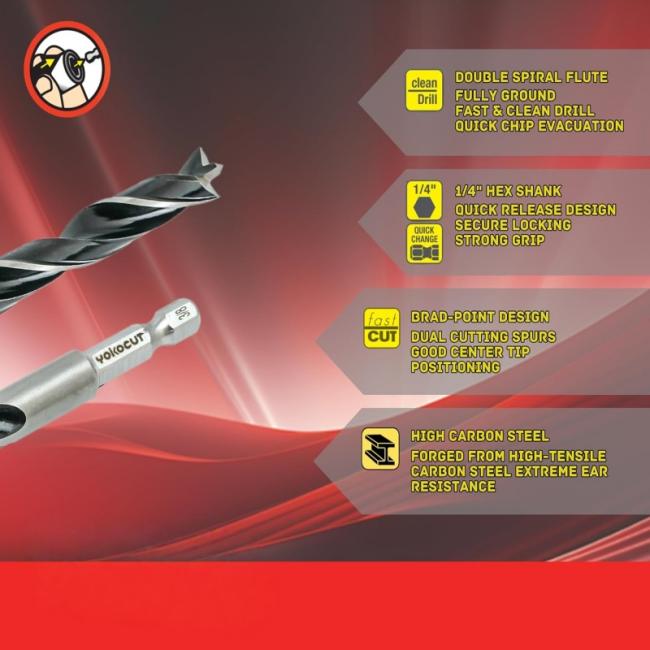

3. Engineering Excellence & Key Advantages



Quick-Change 1/4" Hex Shank



Designed for the modern job site, the universal 1/4-inch hex shank fits securely into all impact drivers, cordless drills, and quick-release bit extensions. This design prevents the bit from spinning inside the chuck under high-torque conditions, ensuring maximum energy transfer.



Precision Center Spur (Brad Point)



The sharpened center point provides immediate positioning without the need for a center punch. It ensures the bit stays perfectly centered during the initial entry, which is critical for drilling accurate pilot holes in finished furniture and cabinetry.



Double Cutting Spurs & Optimized Flutes



Dual outer spurs shear wood fibers at the edge of the hole before the main cutters remove waste. This results in "Zero-Splinter" entry and exit, even in delicate materials like veneer-faced plywood or brittle PVC. The wide, polished flutes ensure rapid chip evacuation to prevent friction and "burning."



Multi-Material Versatility



While optimized for Hardwood and Softwood, the heat-treated edge geometry is equally efficient in PVC, Drywall, and Construction Lumber, making this a versatile "all-in-one" set for renovation contractors and woodworkers.





4. Professional Applications



  • Cabinetry: Precise boring for shelf pins, drawer pulls, and concealed hardware.

  • Furniture Construction: Clean through-holes for dowel joints and furniture bolts.

  • Interior Trim: Drilling through drywall and studs for mounting heavy fixtures.

  • Plastics Fabrication: Accurate, melt-free drilling in PVC piping and ABS sheets.





5. Packaging & Global Logistics

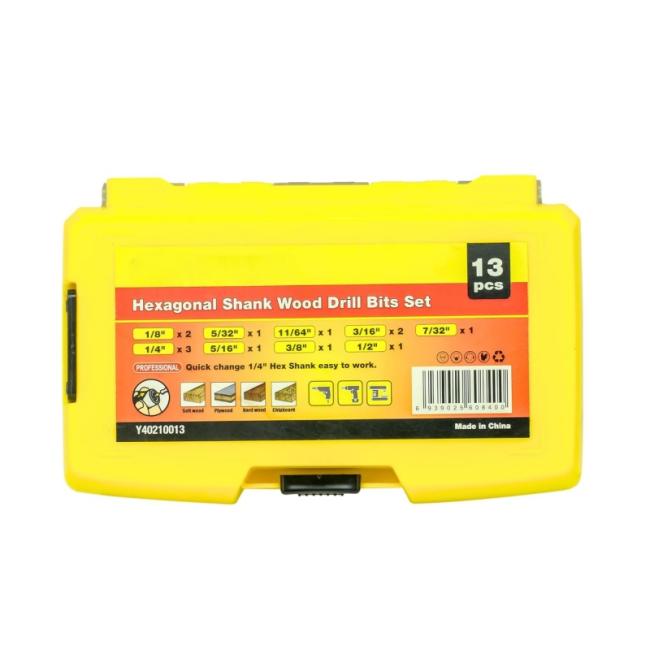

  • Retail Ready: Available in an indexed storage case with clearly marked sizes for easy organization.

  • Wholesale Solutions: Moisture-proof inner boxes and reinforced export cartons palletized for international sea and rail freight.

  • OEM Customization: High-precision Laser Marking for brand logos and fractional sizes directly on the hex shanks for professional identification.







6. FAQ (Frequently Asked Questions)



Q: Can these bits be used in an impact driver?



A: Yes. The 1/4" Hex Shank is specifically designed for use in both standard drill chucks and impact drivers.



Q: Why choose Brad Point bits over standard twist bits for wood?



A: Standard twist bits often wander on wood surfaces and can cause splintering on the exit. Brad Point bits stay centered and produce significantly cleaner, more accurate holes.

Q: Are these bits suitable for metal or masonry?



A: No. These bits are precision-engineered for wood and plastics. Using them on metal or stone will damage the center point and cutting spurs.
