Professional M10 x 1.0mm Metric Fine Thread Tap and Die Set | HSS High-Speed Steel

1. Core Challenges & Professional Solutions

• Challenge: Stripped Oxygen Sensor Threads

  • Solution: The M10 x 1.0mm spec is a common standard for sensors. Our HSS tap restores damaged threads without compromising the fit.

• Challenge: Tool Snapping in Blind Holes

  • Solution: Fully ground flutes provide smooth chip evacuation, significantly reducing torque stress and preventing tool breakage.

• Challenge: Inconsistent Thread Fit

  • Solution: Calibrated to 6H (Tap) and 6g (Die) accuracy classes, ensuring a perfect, vibration-resistant industrial fit every time.

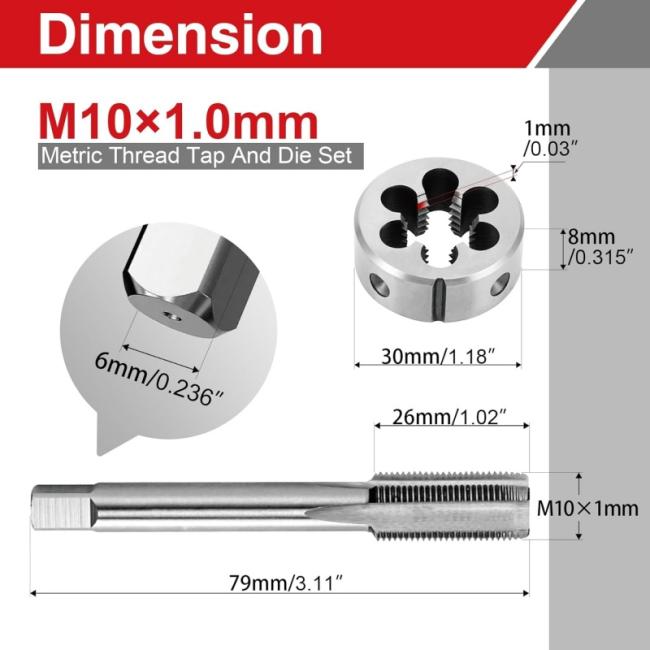

2. Technical Specifications Matrix

3. Key Product Advantages

• Superior Metallurgy: Made from High-Speed Steel (HSS) with a Rockwell hardness of 62-65 HRC, capable of cutting through carbon steel, alloy steel, and stainless steel.

• Micro-Polished Threads: The fully ground process reduces surface friction, preventing "cold welding" and ensuring smooth, clean threads.

• Standardized Geometry: Designed to DIN/ISO standards, ensuring compatibility with all major CNC tool holders and manual wrenches.

4. Packaging & OEM Capability

• Standard Packaging: Individual anti-rust oil-coated tubes or twin-pack blister cards.

• Industrial Case: Available in heavy-duty metal cases for 10+ set wholesale orders.

• Customization: Private label laser marking available on tap shanks and die surfaces for global distributors.

5. FAQ (Professional Support)

Q: Why choose M10x1.0 instead of the standard M10x1.5?

A: The 1.0mm fine pitch provides a higher number of engaged threads per inch, offering much better resistance to vibration—critical for automotive engine and chassis parts.

Q: What is the recommended drill bit for this tap?

A: For an M10 x 1.0 tap, use a 9.0mm drill bit to ensure 75% thread engagement.

Q: Can this set be used on hardened steel?

A: Our HSS grade handles materials up to 35 HRC. For harder materials, we recommend using high-sulfur tapping oil and reduced speeds.
