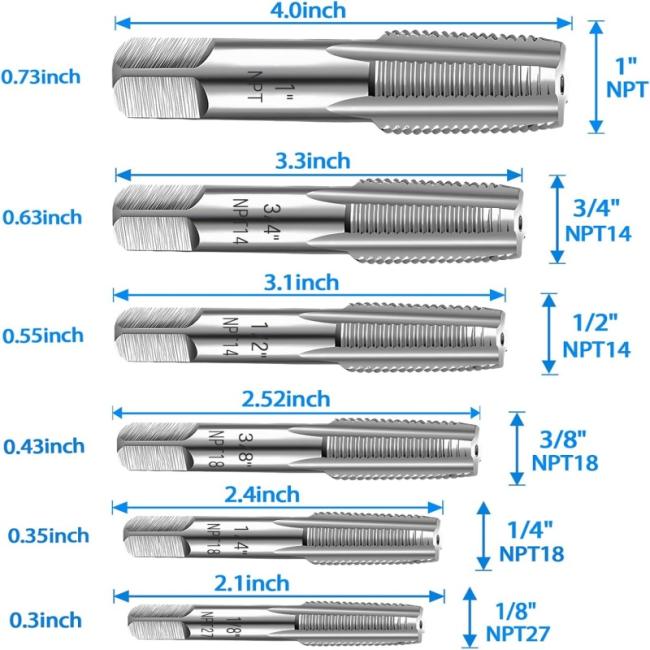

Industrial 6-Piece NPT Pipe Tap Set | 1/8" to 1" HSS & Alloy Steel Tapered Threading Kit

1. Product Introduction

In high-pressure industrial fluid and gas systems, a standard straight thread simply cannot guarantee safety. Our 6-Piece NPT (National Pipe Taper) Tap Set is engineered to create the industry-standard 1:16 taper.

This specialized geometry creates a unique "wedging" effect during assembly, resulting in a high-integrity, metal-to-metal interference fit. While most sets on the market stop at 3/4", our expanded 6-piece kit includes the essential 1-inch tap, providing a complete solution for everything from small sensors to mainline industrial conduits.

2. Technical Specifications Matrix

3. Customer  Points & Engineered Solutions

•  Leaks under high vibration or pressure.

  • Solution: Our taps strictly adhere to the ANSI B1.20.1 standard. The 1:16 taper ensures that the further the fitting is turned, the tighter the seal becomes, providing superior leak resistance compared to straight threads.

• Tool breakage or "stripping" when tapping tough materials.

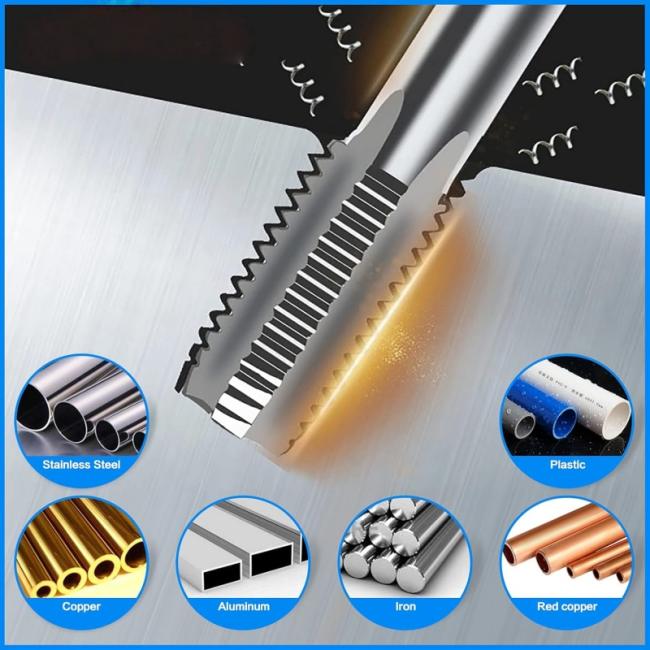

  • Solution: Manufactured from Premium High-Speed Steel (HSS) and vacuum-hardened to 62-65 HRC. These tools cut through cast iron, stainless steel, and alloy pipes without losing their edge or snapping.

• Rough thread finish causing seal failure.

  • Solution: All flutes are fully ground and micro-polished. This allows for smooth chip evacuation and prevents "cold welding" (material sticking to the tool), resulting in a professional, mirror-like thread finish.

• Missing large sizes for critical mainline repairs.

  • Solution: We include the 1" NPT tap, which is often missing from standard sets. This makes our kit a "one-stop" solution for professional maintenance teams.

4. Primary Product Applications

• Hydraulics & Heavy Machinery: Maintaining and repairing ports for hydraulic cylinders, high-pressure pumps, and commercial excavators.

• Automotive & Trucking: Essential for cleaning fuel rail ports, oversized oil pan plugs, and commercial air brake systems.

• Oil & Gas MRO: Specifically designed for field repairs of pipe connectors where localized high-pressure sealing is mandatory.

• Commercial Plumbing & HVAC: Threading black iron gas pipes and large-diameter brass fittings for industrial heating systems.

5. FAQ (Frequently Asked Questions)

Q: Can I use these NPT taps on BSPT (British) fittings?

A: No. NPT has a 60° thread angle, whereas BSPT uses a 55° angle. Mixing them will result in cross-threading and catastrophic leaks.

Q: How do I know when to stop tapping with an NPT tap?

A: Because it is tapered, depth is critical. You should tap until the "Hand Tight Engagement" point is reached—typically when about 4 to 5 threads of the tap remain visible above the surface. Tapping all the way to the shank will make the hole too large to seal.

Q: Is cutting oil required for NPT tapping?

A: Absolutely. Since the contact area increases as the taper advances, friction builds up rapidly. High-quality tapping oil is essential to protect the tool and ensure a clean thread.
