Professional 15-Piece NPT Pipe Tap and Die Set | 1/16" to 1" Alloy Steel (Bearing Steel) | Heavy-Duty Threading Kit

1. Product Introduction

In high-pressure fluid and gas systems, standard threads are not enough. Our 15-Piece NPT (National Pipe Taper) Set is engineered to create the industry-standard 1:16 taper. This specialized geometry creates a unique "wedging" effect during assembly, resulting in a high-integrity, metal-to-metal interference fit that prevents leaks without over-reliance on sealants.

Crafted from high-strength Alloy Steel (Bearing Steel), this set is optimized for toughness and precision. While most standard sets are limited in range, our comprehensive 15-piece kit covers the full spectrum from 1/16" for precision sensors to 1" for mainline industrial conduits.

2. Technical Specifications Matrix (15-Piece Set)

3. Primary Product Applications

• Hydraulics & Heavy Machinery: Repairing and maintaining ports for hydraulic cylinders, high-pressure pumps, and heavy excavator attachments.

• Oil & Gas Maintenance: Essential for field repairs of pipe connectors, valve bodies, and pressure gauges where localized high-pressure sealing is mandatory.

• Commercial Plumbing & HVAC: Threading black iron gas pipes and large-diameter brass fittings for industrial heating systems.

• Automotive & Trucking: Specialized for fuel rail ports, oversized oil pan plugs, and commercial air brake systems.

4. User Challenges & Engineered Solutions

• Challenge: Leaks at high pressure or under vibration.

  • Solution: Strictly following ANSI B1.20.1 standards, our tools produce a precise 1:16 taper. This ensures the further a fitting is turned, the tighter the seal becomes, providing superior leak resistance.

• Challenge: Tool chipping when working with rusted or hardened pipes.

  • Solution: Manufactured from premium Bearing Steel and vacuum-hardened to 58-62 HRC. This material offers exceptional toughness, allowing the tools to restore rusted threads without chipping.

• Challenge: Missing specialized large or small sizes during on-site repair.

  • Solution: This 15-piece expanded set includes both the 1/16" and 1" sizes, ensuring maintenance teams have the exact tool for everything from micro-sensors to mainline valves.

5. FAQ (Frequently Asked Questions)

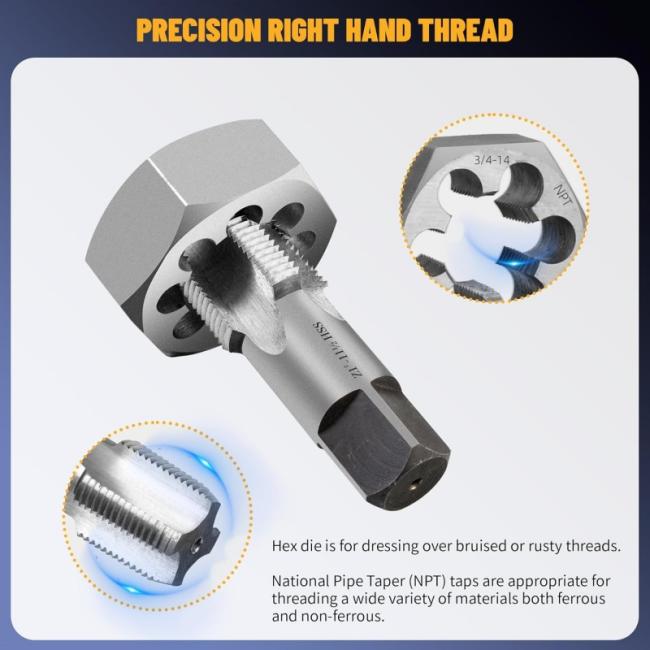

Q: Why use Hex-shaped dies instead of Round dies for NPT?

A: Hex-shaped dies are preferred for NPT repair because they can be used with standard wrenches or sockets in tight spaces where a traditional die stock may not fit—perfect for on-site pipe maintenance.

Q: Can I use NPT tools on BSPT (British) fittings?

A: No. NPT has a 60° thread angle, whereas BSPT has a 55° angle. They are not compatible; mixing them will cause cross-threading and permanent leaks.

Q: What is the correct tapping depth for NPT?

A: Depth is critical because the thread is tapered. You should tap until the "Hand Tight Engagement" point is reached—typically when 4 to 5 threads of the tap remain visible above the surface. Tapping all the way to the shank will make the hole too large to seal.

Q: Is lubrication necessary for these Alloy Steel tools?

A: Yes. Since the contact area increases rapidly as the taper advances, friction builds up quickly. Always use a high-quality cutting oil or tapping paste to protect the tool and ensure a smooth thread finish.
