Industrial 20mm Bi-Metal Hole Saw (M42 Grade) | Extreme Heat Resistance | Precision Smooth Cutting Tool for Metal Studs & Pipes

1. Product Introduction

Engineered for industrial-grade performance, our 20mm M42 Cobalt Bi-Metal Hole Saw is the professional’s choice for precision boring. By integrating 8% Cobalt into the high-speed steel (HSS) teeth, this hole saw delivers exceptional "red-hardness," allowing it to cut through tough materials that would destroy standard bi-metal saws.

Whether you are drilling through thick 304 stainless steel sheets, aluminum, or structural steel, the M42 metallurgy ensures a cooler cut and a significantly longer tool life. The specialized variable pitch tooth design minimizes vibration and leaves a clean, burr-free finish.

2. Technical Specifications Matrix

3. Key Advantages & Professional Features

• 8% Cobalt (M42) Edge: * The Advantage: Cobalt creates a high resistance to heat and abrasion. This allows the 20mm saw to maintain its sharp edge even when the friction of metal-on-metal drilling generates extreme temperatures.

• Variable Pitch Tooth Geometry:

  • The Advantage: The irregular spacing of the teeth (4/6 TPI) prevents the saw from finding a harmonic vibration frequency. This results in a much quieter, smoother cut and reduces the risk of the tool "grabbing" or stalling in the material.

• Electron-Beam Laser Welding: * The Advantage: The HSS M42 cutting edge is permanently fused to the alloy steel body using vacuum electron-beam welding. This creates a flexible bond that allows the saw to absorb the shock of hitting a knot in wood or a hard spot in metal without the teeth stripping off.

• Dual Side Slots (Ejection Slots):

  • The Advantage: Strategic slots on the side of the saw body facilitate rapid chip evacuation and provide easy access for a screwdriver to pop out the slug (core) after the cut is finished.

4. Primary Product Applications

• Electrical Installation: Perfect for creating entry points for M20 cable glands and conduit in metal junction boxes.

• Stainless Steel Fabrication: Ideal for cutting holes in stainless steel countertops, sinks, and industrial control panels.

• Plumbing: Drilling through copper, brass, and plastic pipes.

• DIY & Construction: Creating clean holes in hardwood, plywood, and PVC for furniture or cable management.

5. FAQ (Frequently Asked Questions)

Q: Can this 20mm saw cut through 3mm thick Stainless Steel?

A: Yes. Because of the M42 (8% Cobalt) content, it is designed for exactly this purpose. However, you must use a slow RPM and a high-quality cutting lubricant to prevent the material from work-hardening.

Q: What type of drill do I need?

A: A standard handheld power drill or a drill press is sufficient. For 20mm, a 10mm (3/8") chuck is the minimum size required for most standard arbors.

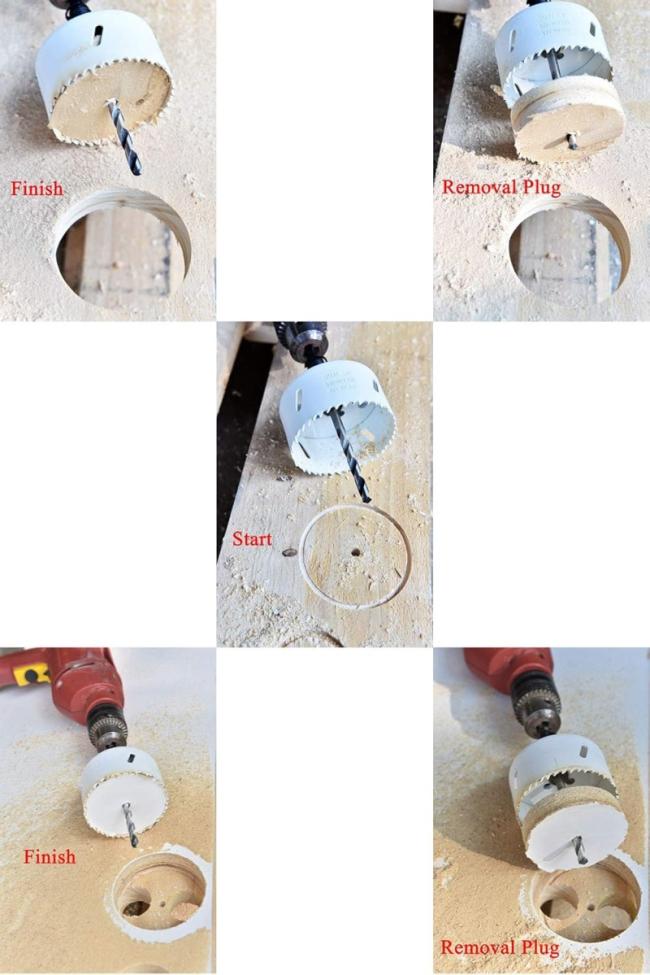

Q: How do I get the wood or metal core out of the saw?

A: Use the side ejection slots. Simply insert a flathead screwdriver into the slot and push the core out. The 20mm size is small, so the core can sometimes be snug—the slots make removal much faster.
