6-Inch Wall Hole Saw Kit | TCT Core Drill for Commercial Make-Up Air Ducts
1. Problem: "Flywheel Inertia" and Operator Exhaustion
-
The Problem: A 150mm (6-inch) solid steel masonry cup is exceptionally heavy. When spinning at high speeds, this massive diameter acts like a heavy "flywheel." If the teeth catch on a hard brick, the accumulated rotational inertia forcefully wrenches the drill. Furthermore, the sheer physical weight of holding a 150mm steel bit horizontally against a wall causes rapid operator fatigue, leading to sloppy, angled cuts.
-
The Result: Dropped power tools, severe muscle strain, dangerous kickback injuries, and out-of-round holes that compromise the weather-tight sealing of large 6-inch commercial ventilation ducts.
2. Cause: Solid-Wall Cylinders and Axis Drift
-
Unnecessary Rotational Mass: Standard large-diameter bits use thick, solid steel walls that add massive dead weight, compounding the centrifugal force and making the tool incredibly difficult to control free-hand.
-
Axis Drift: The heavier the cutting cup, the harder it is for the central pilot drill to anchor it. The heavy cup inevitably "pulls" the drill downward due to gravity, causing the 150mm hole to drift off its center axis.
3. Solution: Lattice-Milled Chassis and Core-Splitting TCT
-
Lattice-Milled Lightweight Chassis: We revolutionized the 150mm cylinder by utilizing a CNC-machined "lattice-milled" alloy body. By strategically removing non-structural metal from the outer walls, we reduced the tool's physical weight by 30% without sacrificing compressive strength. This drastically reduces operator fatigue and minimizes the dangerous flywheel inertia.
-
"Core-Splitting" Staggered Carbide: Instead of trying to cut a single, massive 150mm solid rock cylinder, our TCT (Tungsten Carbide Tipped) teeth are arranged in an aggressive, staggered "core-splitting" profile. This forces the 6-inch brick core to fracture into smaller, manageable chunks during the cut, preventing a massive 15-pound stone from becoming dangerously wedged inside the cup.
-
Dual-Arbor Compatibility: Because a 6-inch cut pushes the absolute limits of SDS-Plus, this 150mm Master Series is available with both Heavy-Duty SDS-Plus and SDS-Max connecting rods, allowing contractors to utilize their heaviest commercial rotary hammers for maximum safety.
4. Technical Specifications
| Technical Pillar | Specification Detail | Industrial Benefit |
| Diameter | 150mm (approx. 6 inch) | Exact clearance for 6-inch commercial ducting. |
| Chassis Build | Lattice-Milled Alloy Body | Reduces tool weight by 30% to prevent fatigue. |
| Tooth Profile | Core-Splitting TCT | Fractures massive 6-inch cores to prevent jamming. |
| Extraction | Oversized Venting Windows | Allows immediate dumping of heavy crushed rock. |
| Arbor Options | SDS-Max or Heavy SDS-Plus | Adapts to heavy-duty commercial rotary hammers. |
| Kit Contents | 150mm Cup, Selected Arbor, Pilot | The ultimate large-bore masonry solution. |
5. Professional Industry Applications
-
Commercial Make-Up Air Systems: The definitive standard for routing 150mm / 6-inch fresh air intakes and make-up air ducts for commercial kitchens and manufacturing facilities.
-
Industrial Dust Extraction: Boring perfect 6-inch pass-throughs in brick or block walls to install heavy-duty PVC ducting for woodworking shop or factory dust collection systems.
-
Wood Stove and Flue Venting: Creating precision clearances for insulated residential chimney flues and high-temperature exhaust piping through exterior masonry facades.
6. Operation and Safety Guidelines
-
Mandatory Equipment: For a 150mm diameter, an SDS-Max Rotary Hammer is highly recommended. The tool MUST be equipped with an active Mechanical Safety Clutch. Do not use standard consumer-grade drills.
-
The "Two-Man" or "Stand" Protocol: Due to the extreme torque, contractors should consider using a wall-mounted drill stand. If drilling manually, ensure stable scaffolding, plant your feet firmly, and let the hammering action do the work—do not force the bit.
-

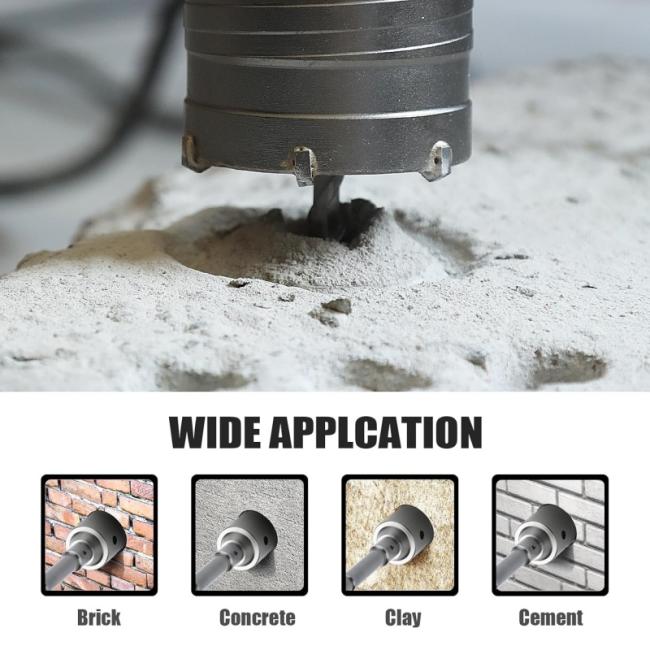

Material Warning: Strictly designed for Red Brick, Cinder Block, Mortar, and Non-Reinforced Concrete. Hitting steel rebar with a 150mm percussion bit will result in catastrophic failure and potential injury.
7. FAQ: Expert Technical Support
Q: Is it safe to use this 150mm bit on my standard SDS-Plus drill?
A: While we offer an SDS-Plus arbor, a 150mm cut requires immense power (minimum 1500W+). If your SDS-Plus drill is underpowered, it will overheat and burn out quickly. For frequent 150mm cuts, upgrading to an SDS-Max system is the industry standard recommendation.
Q: Will the 150mm core bit shatter hollow cinder blocks?
A: It can, if too much pressure is applied. When drilling hollow block, use a high-speed, light-pressure approach. Let the carbide teeth "mill" through the outer web of the block gently to prevent blowing out the fragile internal structure.
Q: How do I remove a massive 150mm solid brick core if it doesn't fracture?
A: Stop drilling every 2 inches (50mm). Extract the drill, use a masonry chisel to manually break the 6-inch core inside the wall, clear the debris by hand, and then resume drilling. Never try to drill 6 inches deep continuously without clearing the core.
Q: The bit is bouncing wildly when I start the hole. How do I fix this?
A: Turn OFF the hammer function. Start the hole in "Rotary Only" mode to allow the pilot drill to anchor securely and let the 150mm teeth carve a 5mm deep circular guide track into the brick. Only engage the hammer mode after this track is fully established.
