DIN338 Straight Shank Fully ground drill bit Amber finished,M35 Twist Drill Bits for Hard Metal, Stainless
DIN338 Straight Shank Fully ground drill bit Amber finished,M35 Twist Drill Bits for Hard Metal, Stainless
Made From HIGH-SPEED Steel and 5% Cobalt,improve much higher heat resistance because of cobalt steel's high red hardness, provide strong durable performance compared to typical hss drill bits
Accurate and Neat: 135°Quick-Cut points are self-centering and penetrate quickly with less pressure.
Excellent Performance: Bits are extremely heat resistant. Straight shank allows for firmly holding and accurate centering, fit for standard drill chucks and regular round collet chucks
Can be Repeatedly Sharpened as needed: cobalt drill bit's hardness is uniform throughout the entire material, so that can be repeatedly sharpened without damaging the cutting edge allowing it to drill more than hss drill bits
| Brand Name | XRTOOLS (HSS-M35 drill bit) |
|---|---|
| Color | Brownish-gold |
| Cutting Angle | 135° degrees |
| Cutting Diameter | 3.0mm |
| Fastening Type | Keyed Chuck and Keyless Chuck |
| Material | High-Speed Steel and 5% Cobalt |
| Point Type | 135 split point |
| Shank Type | Round Shank |
| Size | 3.0mm |
| Total Length | 61mm |
| Flute Length | 33mm |
| Specific Uses For Product | Metal Drilling |
| Style | twist drill bit |
| Tool Flute Type | Spiral |
DRILL BIT Size:
| Dia | Total Length | Flute Length |
| 3.0 | 61 | 33 |
| 3.5 | 70 | 39 |
| 4.0 | 75 | 43 |
| 4.5 | 80 | 47 |
| 5.0 | 86 | 52 |
| 5.5 | 93 | 57 |
| 6.0 | 93 | 57 |
| 6.5 | 101 | 63 |
| 7.0 | 109 | 69 |
|
7.5 |
109 | 69 |
| 8.0 | 117 | 75 |
| 8.5 | 117 | 75 |
| 9.0 | 125 | 81 |
| 9.5 | 125 | 81 |
| 10.0 | 133 | 87 |
Application:
The M35 high-speed steel drill bits for metal is very suitable for hardened materials: such as hard plastic, cast iron, alloy, stainless steel, wood, softer metals, etc.; please note that drywall drill bit is not suitable for glass, ceramic materials, high carbon Steel and heat-treated steel.
Delivery and Payment:
1. We can supply free sample for you test,and we will be delivered by Express to you.
2. Normal order will be delivered by sea.
3. 30-45 Days after your deposite.(according your order qty).

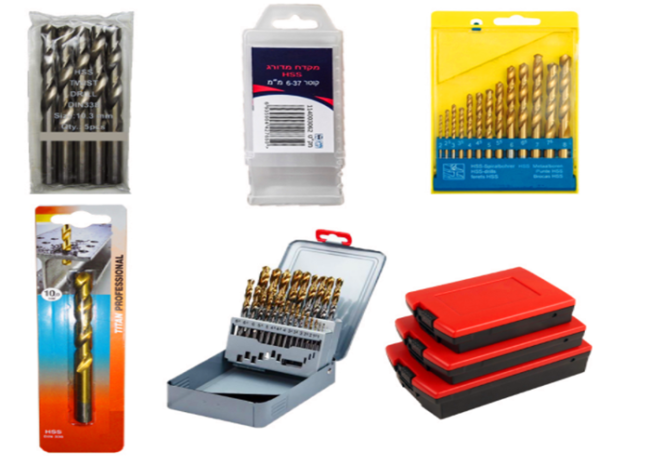

Package:
1. Normal Drill bits Package:5/10 pcs in a plastic bag,then inner box and out carton,then in pallet.
2. Other kinds package:Blister card,Plastic tube,PVC pouch,according to your requirments.
3. HSS Drill bits set are available.
