M35 High Speed Twist Drill Bit ,5mm-10mm Metal Drill Bit For Stainless Steel

Price Negotiable
Price: 0.05-2.7$/PCS
MOQ: 500PCS
Delivery Time: 30-45days
Brand: XRTOOLS
Product Description

M35 High Speed Twist Drill Bit ,5mm-10mm Metal Drill Bit For Stainless Steel





high speed drill bits of Description



HSS or high-speed steel bits are made from carbon steel with the addition of other elements such as chrome and vanadium.

This allows them to be used at high drilling speeds. HSS bits can be used to drill iron, steel and other metals such as brass,

copper and aluminum alloy. They can also be used to drill plastic.

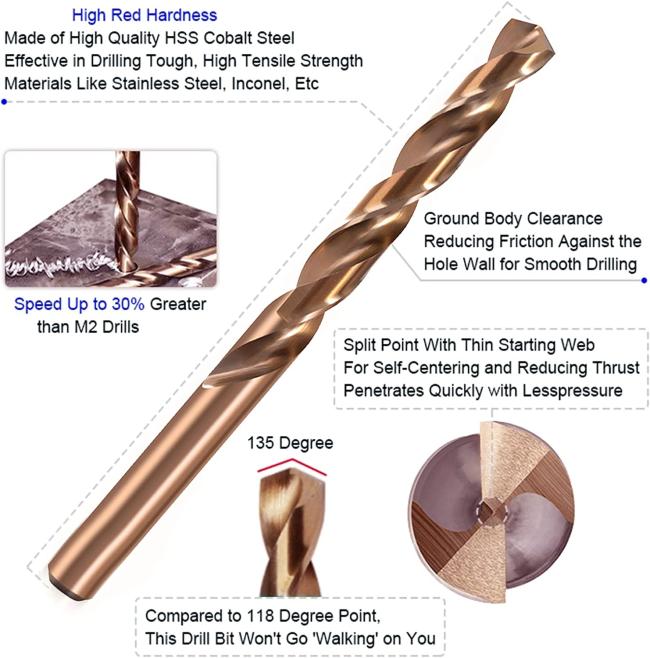

  • 【COBALT MATERIAL】: HSS(M35) Cobalt Steel Enable Long Drilling Life and Fast Drilling Performance
  • 【SURFACE TREATMENT】: Gold Oxided Ember Finished Treatment Keeps High Hardness of Body Shank
  • 【SPLIT POINT ANGLE 135 DEG】: Split Point 135 Deg. Guarantee Self-Centering and Easy Quick Penetration


Specification


  • Brand Name : M35 high speed steel tool bits
  • Color :Brownish-gold
  • Cutting Angle :135 degree split point
  • Cutting Diameter : 5mm-10mm
  • Fastening Type: Keyed Chuck and Keyless Chuck
  • Material: High-Speed Steel and 5% Cobalt
  • Point Type :135 split point
  • Shank Type :Round Shank
  • Size: 5mm-10mm
  • Total Length: 86mm-133mm
  • Flute Length: 52mm-87mm
  • Specific Uses For Product: Metal Drilling,wood drilling
  • Style: twist drill bits
  • Tool Flute Type :Spiral



 high speed twist drill bit of Size:



Specification(MM)
Flute Length
SizeOver Length
Specification(MM)
Flute Length
SizeOver Length
0.4-1
12
34
7.6-8
97
117
1.1-1.5
18
40
8.1-8.5
75
117
1.6-2
24
49
8.6-9
81
125
2.1-2.5
30
57
9.1-9.5
81
125
2.6-3
33
61
9.6-10
87
133
3.6-4
43
75
10.1-10.5
87
133
4.1-4.5
47
80
10.6-11
94
142
4.6-5
52
86
11.1-11.5
94
142
5.1-5.5
57
93
11.6-12
98
155
5.6-6
57
93
12.1-12.5
101
151
6.1-6.5
63
101
12.6-13
95
151
6.6-7
69
109
13.1-13.5
108
160
7.1-7.5
69
109
13.6-14
108
160





 Application:

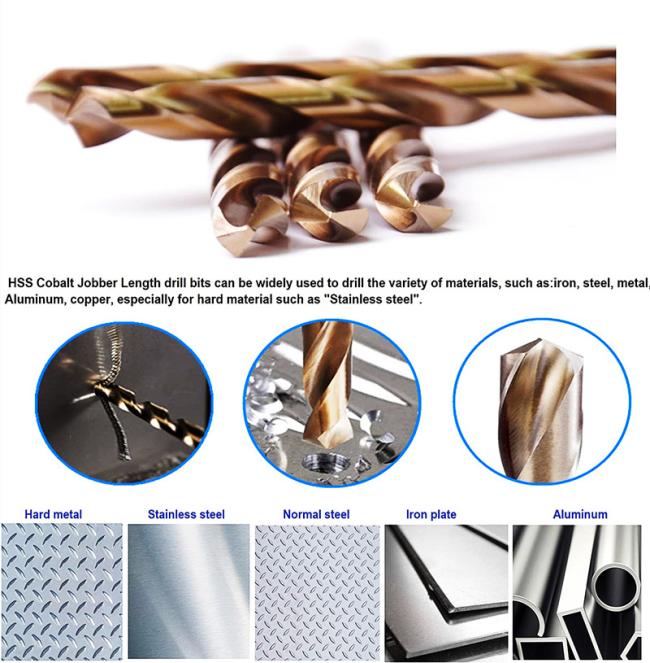

The M35 high-speed steel drill bits for metal is very suitable for hardened materials: such as hard plastic, cast iron, alloy,

stainless steel, wood, softer metals, etc.; please note that drywall drill bit is not suitable for glass, ceramic materials, high

carbon Steel and heat-treated steel.



Drilling speed

 Tips :



Using a drilling speed that is too high is a frequent mistake. The harder the material to be drilled, the lower the drilling speed

you should use. For example, if you’re drilling an 8 mm hole in brass you should set your drill to a speed of 2500 r.p.m. Or for

stainless steel, which is much harder, the right drilling speed is 800 r.p.m. A good sign that you’re using the right speed is that

you’ll get nice long shavings.
