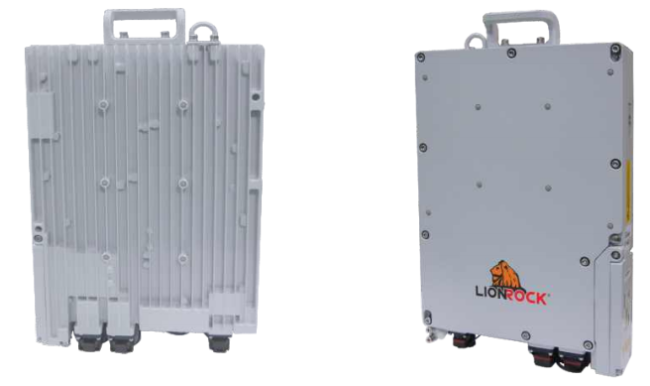

Small Blade Battery 48V DC 25Ah 130x330x450mm Size With 8 Max Parallel Number
Small Size, Light Weight Blade Power
Introduction
Distributed Blade Power supply is a new generation of distributed power supply solutions designed specifically for small cell sites, like 5G communication tower. The utility model has the advantages of easy installation, easy expansion, maintenance-free, flexible power supply, etc. The utility model is mainly applied to the AC / DC power supply and backup scenarios including Easy Macro, indoor RRU, outdoor RRU, etc.
Features
- Small size, light weight
- Wide operating temperature -40ºC ~ 55ºC (without sun radiation)
- IP65 high degree of protection for harsh environment applications
- Support pole, wall, tower installation
General Specification
| Voltage | 48VDC |
| Rated Charging Voltage | Boost charging: 55.5VDC |
| Capacity | 25Ah (C5, 25ºC) |
| Max Charge/Discharge Current | 10A/30A (0ºC ~ 45ºC) |
| Weight | ≤22kg |
| Dimension (W x D x H) | 130mm x 330mm x 450mm |
| Natural Discharge Rate @ 25ºC | <5% (90 days) |
| Communication Interface | CAN / RS485 |
| Protection | Over charging, over discharging, short circuit, over current, over temperature protection |
| Certification | CE, UN38.3 |
| Life | 10 years @ 25ºC |
| Operating Temperature | -40ºC ~ 55ºC |
| Transportation Temperature | -40ºC ~ 60ºC |
| Storage Temperature | 0ºC ~ 40ºC |
| Relative Humidity | 5% ~ 95% (without condensation) |
| Altitude | ≤4000m |
| Max Parallel Number | 8 |
