Saturated Polyester Resins For TGIC Cure Excellent Mechanical Properties

Applications:

NH8305 is a saturated carboxyl polyester resin for polyester/TGIC powder coating system.

Basic features:

Good outdoor durability

Good storage stability

Excellent mechanical properties

 Specifications:

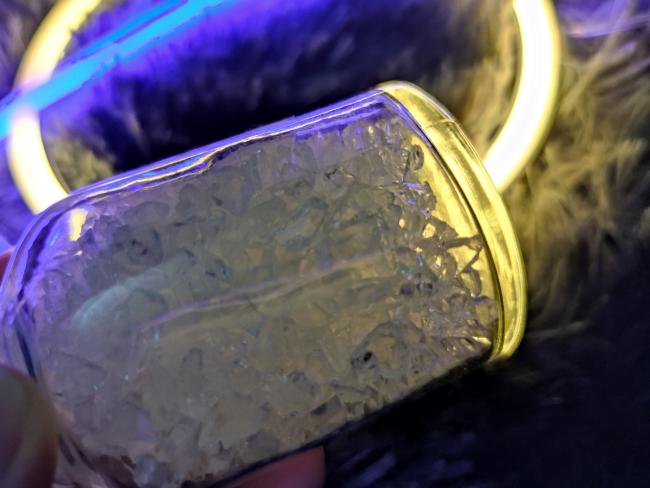

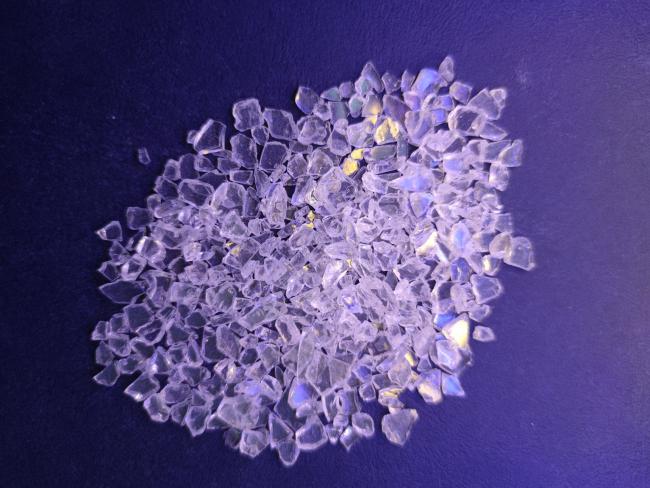

Appearance white or pale yellow transparent flake

Color (50%DMF): max: 2

Acid number(mgKOH/g): 30～36

Glass transition temp.(℃): ～64

Melting viscosity(200℃, cone/plate, mPa·s): 7000～9500

Reactivity at 180℃(s, 7% TGIC): 80±180

 Recommend Formulation:

NH8305H—TGIC

Extrusion Condition:

Two-screw extruder

Zone I: 90～110℃ Zone II: 110～120℃

Speed of revolution: 500～1200rpm

Fineness of powder: ＜100μm

Application Condition:

Electrostatic spraying with: 40～70KV

Film thickness: 60～80μm

Degreased cold-rolled steel 0.5mm

Curing Requirement: 200℃×10min

Film Properties:

Gel time(180℃,sec) 90~270

Horizontal flow:(180℃), mm: 22~26

Gloss(60°): ≥85%

Bending(φ1mm): Pass

Adhesive(1mm,grade): 0

Pencil hardness: ≥1H

Impact (50cm): pass

 Packaging:

PE bags, N.W. 25KG±0.1KG / bag
