Polyester Resin NH8305 with Excellent Flexbility&Bending&Impact Resistance

◇ Applications:

NH8305 is a saturated carboxyl polyester resin for polyester/TGIC powder coating system.

Through the selection of special monomers and the development of specific processes, the application field of conventional resins is expanded and products with leading technology are synthesized.

◇ Basic features:

Excellent toughness and cold resistance

Excellent impact damping resistance and storage stability

◇ Specifications:

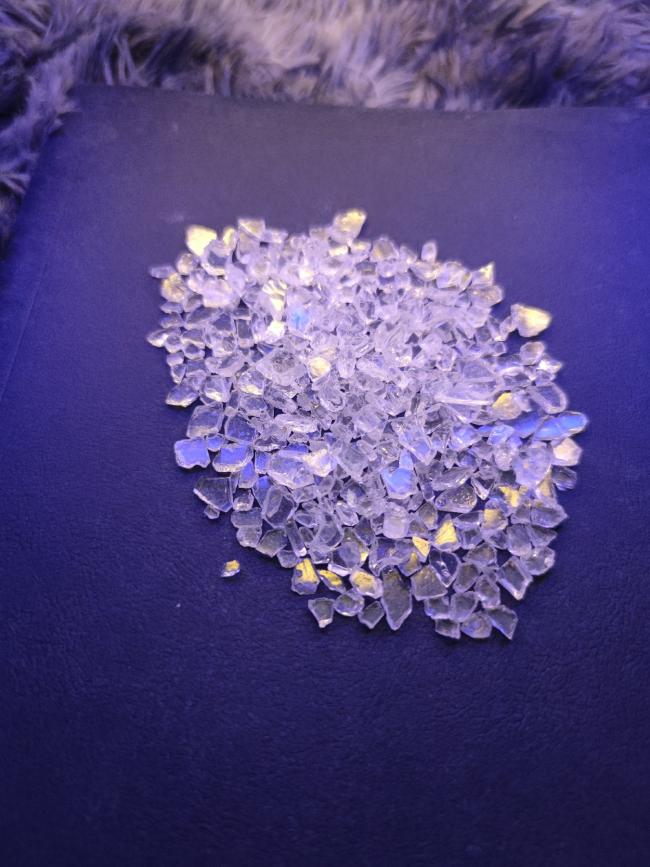

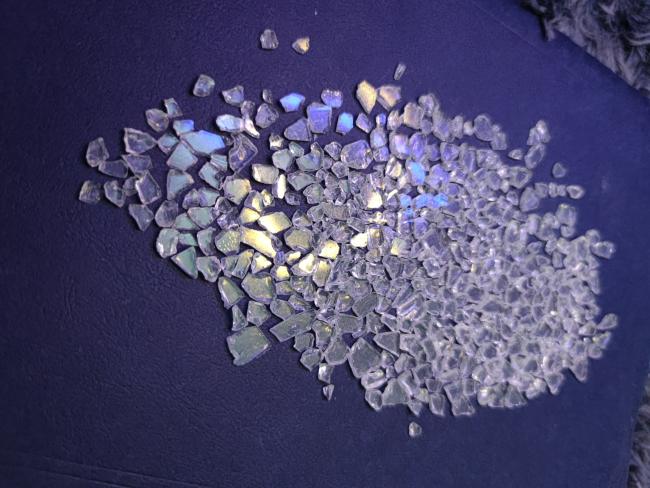

Appearance: white or pale yellow transparent flake

Color (50%DMF): max: 2

Acid number(mgKOH/g): 30～36

Softening point(℃): 103～113

Glass transition temp.(℃): ～60

Melting viscosity(200℃, cone/plate, mPa·s): 5000～8000

Reactivity at 180℃(s, 7% TGIC): 130±40

◇ Recommend Formulation: NH8305—TGIC

◇ Extrusion Condition:

Two-screw extruder

Zone I: 90～110℃ Zone II: 110～120℃

Speed of revolution: 500～1200rpm

Fineness of powder: ＜100μm

◇ Application Condition:

Electrostatic spraying with: 40～70KV

Film thickness: 70～90μm

Degreased cold-rolled steel 0.5mm

◇ Curing Requirement: 200℃×10min

◇ Film Properties:

Gel time(180℃,sec): 150~300

Horizontal flow:(180℃), mm: 23~27

Gloss(60°): ≥88%

Bending(φ1mm): Pass

Adhesive(1mm,grade): 0

Pencil hardness: ≥1H

Impact (50cm): pass

◇ Packaging:

PE bags, N.W. 25KG±0.1KG / bag

Remarks:all the polyester resins could be customizes to Non-tin (A) ,anti gas burners(G),tribo gun(T) and anti-blooming(F)
