Weatherproof Polyester Resin with Excellent Boiling Resistance for Deep Color Powder Coating

◇ Applications:

NH8306 is a saturated carboxyl polyester resin for polyester/TGIC powder coating system. It has the characteristics of high hardness, high strength, high modulus and high precision. It is very suitable for industrial production.

◇ Basic features:

Excellent boiling water resistance

Splendid weathering resistance

◇ Specifications:

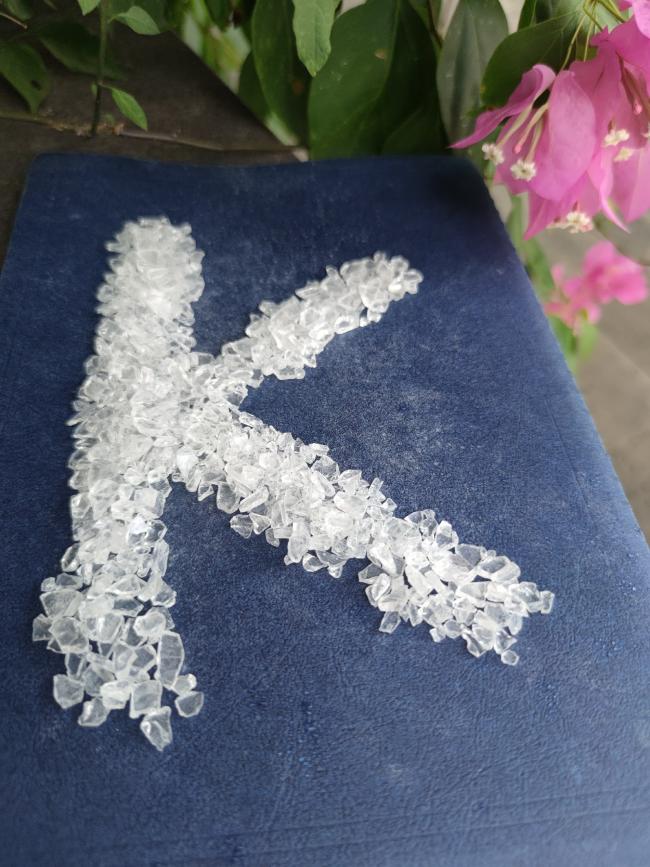

Appearance white or pale yellow transparent flake

Color (50%DMF): max: 3

Acid number(mgKOH/g): 31～34

Softening point(℃): 103～113

Glass transition temp.(℃): ～67

Melting viscosity(200℃, cone/plate, mPa·s): 6000～8000

Reactivity at 180℃(s, 7% TGIC): 180～250

◇ Recommend Formulation:

NH8306—TGIC

◇ Extrusion Condition:

Two-screw extruder

Zone I: 90～110℃ Zone II: 110～120℃

Speed of revolution: 500～1200rpm

Fineness of powder: ＜100μm

◇ Application Condition:

Electrostatic spraying with: 40～70KV

Film thickness: 70～90μm

Degreased cold-rolled steel 0.5mm

◇ Curing Requirement: 200℃×10min

◇ Film Properties:

Gel time(180℃,sec) 250~350

Horizontal flow:(180℃), mm: 22~25

Gloss(60°): ≥88%

Bending(φ1mm): Pass

Adhesive(1mm,grade): 0

Pencil hardness: ≥1H

Impact (50cm): pass

◇ Packaging:

PE bags, N.W. 25KG±0.1KG / bag

Remarks:all the polyester resins could be customizes to Non-tin (A) ,anti gas burners(G),tribo gun(T) and anti-blooming(F)
