50/50 Hybrid Polyester Epoxy Resin For Mechanical Low Bake Formulation
Epoxy Polyester Curing HH2563 in Low Bake Formulation for Hybrid Powder Coatings
Epoxy polyester resin is composed of hydroxyl-terminated polyester resin and epoxy resin. The two are curing agents for each other. They are the main components of hybrid powder coatings, taking into account the anti-corrosion performance of epoxy resin and the weather resistance of polyester resin. It is commonly used in the coating of indoor household appliances and the surface coating of electrical instruments and switch cabinets.
◇Basic Features:
Good leveling
Excellent mechanical properties
Excellent chemical performance
Low curing temperature
◇Specifications:
|
Appearanc |
White or Light Yellow Transparent Flakes |
|
Color (50% DMF) |
max:3 |
|
Acid Number (mgKOH/g) |
68～75 |
|
Softening Point (℃) |
93～108 |
|
Glass Transition Temp. ( ℃) |
50～60 |
|
Melting Viscosity (ICI, mPa·s/200℃) |
2000～4500 |
|
Reactivity at 180℃ (s, 50% Epoxy) |
80～180 |
◇Recommend Formulation: HH2563—E12
|
HH-2563 |
E12 |
Filler ＆ Pigment |
Leveling |
Benzoin |
701 |
| 300 | 300 | 383 | 8 | 4 | 5 |
◇Curing Requirement: 160℃×15-20min
◇Package: PE Bags, Net Weight 25kg±0.1kg / bag
◇Remarks: All the polyester resins could be customized to Non-tin (A), anti gas burners (G), tribo gun (T) and anti-blooming (F).

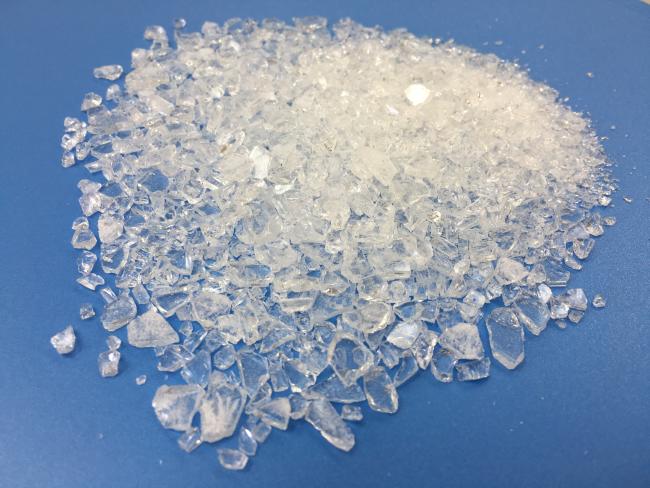

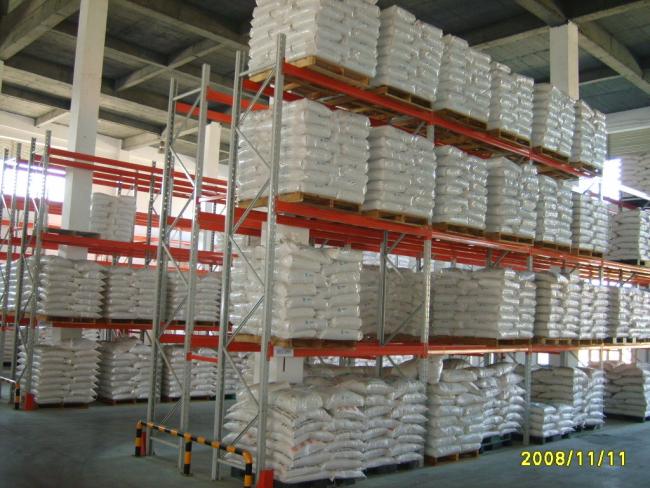

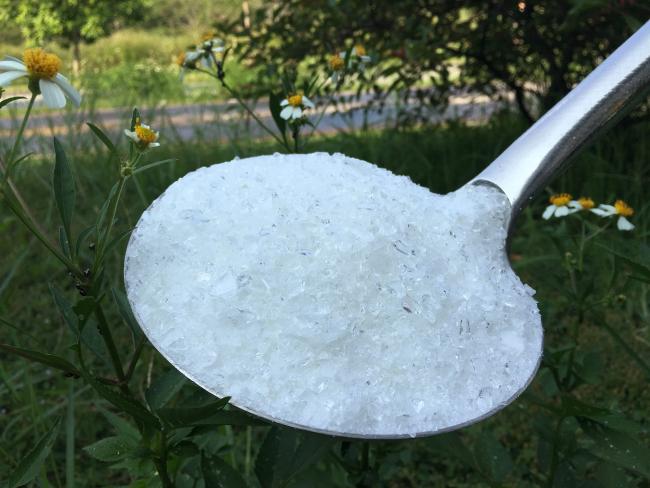

◇Product Show:
