0.001% Transformer Tester Meter , 50ohm Fra Frequency Response Analyzer
Price:
Negotiable
MOQ:
1 pc
Delivery Time:
20-25 Days
Brand:
HNMC
Product Description

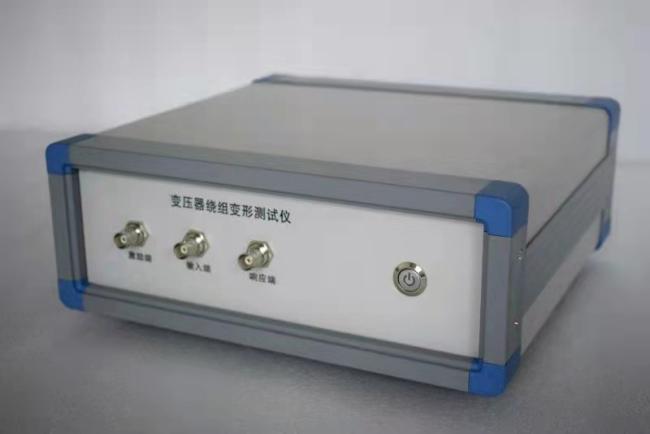

Portable Transformer Sweep Frequency Response Analyzer SFRA20
Main Features
1. Characteristics of transformer windings are measured with frequency sweep method. Deformations of
windings such as distortion, swell or displacement of 6kV and above transformer are measured by detecting
amplitude-frequency response characteristics of each winding, not requiring lifting of transformer enclosure
or disintegration.
2. Quick measuring, measuring of a single winding is within 2 minutes.
3. High frequency accuracy, higher than 0.001%.
4. Digital frequency synthesis, with higher frequency stability.
5. 5000V voltage isolation fully protects safety of the testing computer.
6. Able to load 9 curves at the same time and automatically calculate parameters of each curve and diagnose
winding deformations to provide the reference diagnosis conclusion.
7. Analysis software has powerful functions and software and hardware indicators .
8. Software management is humanized with high degree of intelligence. You only need to click a key to
complete all measurements after setting of parameters.
9. The software interface is concise and vivid, with clear menus of analysis, save, report export, print, etc.
Technical Index
| Item | Technical Index |
| Measuring speed: | 1 min- 2 min for single-phase winding |
| Output voltage: | Vpp-25V, adjusting automatically in test |
| Output impedance: | 50Ω |
| Input impedance | 1MΩ (the response channel is built with 50Ω matching resistance) |
| Frequency scan scope | 10Hz-20MHz |
| Frequency accuracy: | 0.001% |
| Frequency scan manner: | linear or logarithmic, frequency sacn interval and number of sweep points are freely settable |
| Curve display | amplitude-frequency curve (phase-frequency curve, optional) |
| Width of measuring dynamic range | -120dB~20dB |
| Supply voltage: | AC100-240V 50/60Hz (use DC12V Adapater recommend) |
| Dimension | 238mm*184mm*40mm |
| Net weight: | 2.45Kg |
