Portable Partial Discharge Test Kit Inbuilt Ultrasonic Sensor
Price:
Negotiable
MOQ:
1 set
Delivery Time:
20-25 Days
Brand:
HNMC
Product Description
Partial Discharge Detector MCPD002
Main Features
1) 7”LCD display, touch screen
2) Partial discharge test and location of GIS, Switchgear, Cable tray, cable joint, insulators & LBS
on transmission line, and etc
3) Test result can show discharge strength, discharge phase, history data, etc
4) With multi testing way including TEV, ultrasonic, HFCT, infrared temperature test and etc.
5) Multi independent test channels showing on same screen at same time, with extension function
6) Inbuilt solid state SSD storage not less than 256G for storing data and patterns
7) With test data management, test object management and test task management function,
convenient for data analysis
8) Can test ambient temperature and humidity of test object
9) 4-20mA analog output, USB and Ethernet port for data transferring
10) With sensor self-testing function, include self testing time difference and location function
11) With diagnose mode, display & analysis and diagnose of partial discharge type then automatic
generating test report.
12) Independent double channels noise sensors
13) In-built function-self-tester, and more convenient for use
14) With rechargeable lithium battery, 3.7V/21Ah, continuously working for 8 hours after one time
full charging
15) USB interface and RJ45 Ethernet port
16) Optional accessories includes: TEV sensor, external extended microphone sensor,
HFCT sensor, noise sensor, non-contact type infrared temperature sensor, battery charger etc.
Technical Index

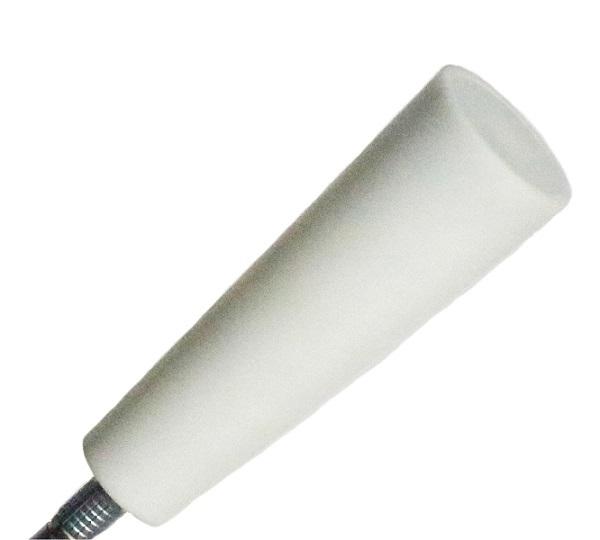

1. TEV measurement
| Item | Specification |
| Sensor | capacitance type |
| Range | 0-60bBmV |
| Frequency range | 3-100MHz |
| Resolution | 1dB |
| Accuracy | ±1dB |
| Maximum impulse/cycles qty | 1400 |
| Minimum impulse rate | 10Hz |

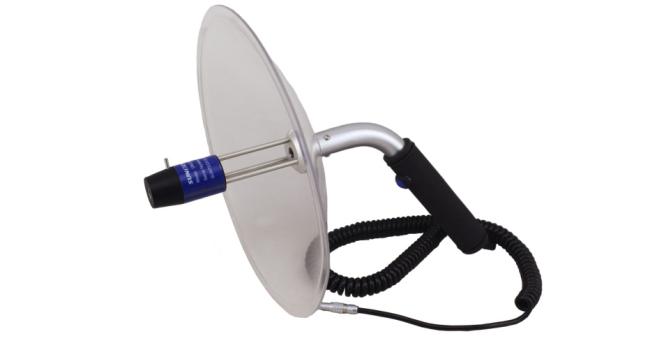

2. Ultrasonic Measurement
| Item | Specification |
| Range | -7dBuV～68dBuV |
| Resolution | 1dB |
| Accuracy | ±1dB |
| Sensor sensitivity | -65dB (0dB=1V/ubar RMS SPL) |
| Sensor center frequency | 40kHz |
| Frequency range | 20～100kHz |
| Sensor diameter | 16mm |
| Heterodyne frequency | 38.4kHz |

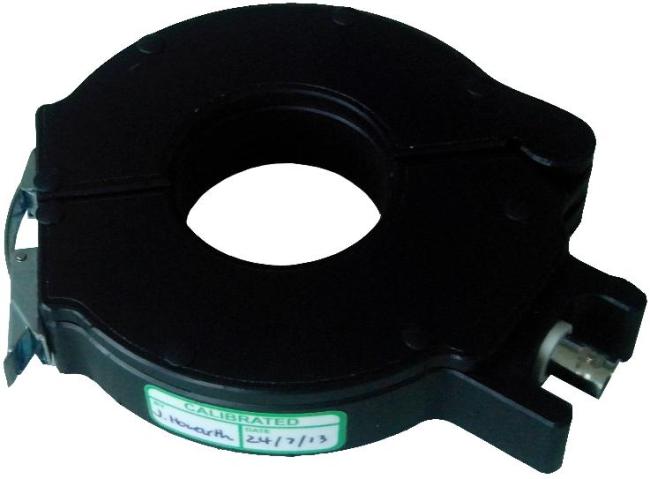

3. HFCT measurement
| Item | Specification |
| Sensor type | HFCT |
| Range | 0pC～25000pC |
| Minimum impulse rate | 10Hz |
| Frequency response | 100kHz～20MHz |
| Inner diameter | 45mm(customization available) |
| Outer diamete | 107 mm(customization available) |
| Output impedance | 50Ω |
| Output interface | BNC connector |

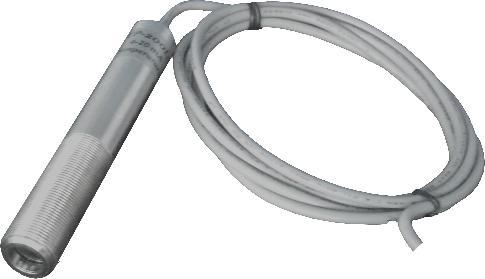

4. Temperature measurement
| Item | Specification |
| Sensor type | Infrared sensor |
| Range | －20℃～150℃ |
| Accuracy | ±1% or 1℃ |
| Response wave length | 8～14um |
| Distance coefficient | 15:1 |
| Sending rate | 0.95 |
| IP degree | 65 |
| Humidity | 0～90% RD |
| Size: | Φ20X90 |
5. Size & Weight: 240mm×125mm×60mm / 1.2kg
6. Rated input supply for charger: 90-264V AC/ 47-63HZ, charging voltage 12V DC
