7.0mm LSZH Fiber Optic Patchcord LC UPC Duplex Singlemode With ODVA
LC UPC Duplex Singlemode 7.0mm LSZH Fiber Optic Patchcord with ODVA

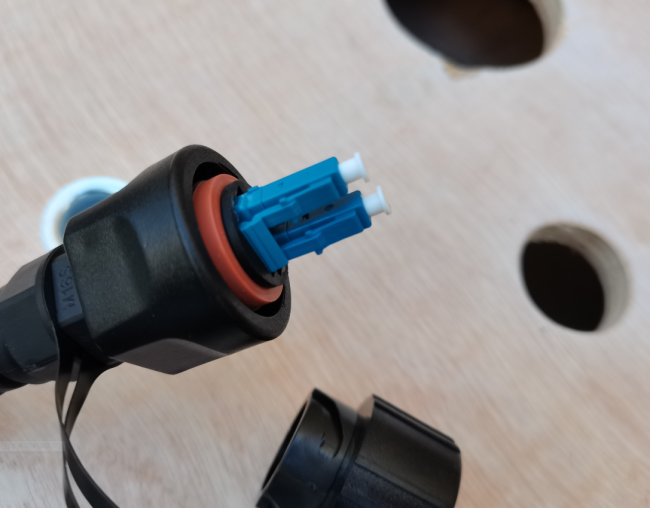

Singlemode LC Jumper with ODVA Description
LC jumpers with ODVA can pass IEC60332-1 and meet different requirement in optical network. Normally, the length, colour, Insertion loss and return loss can be customized by your project.
As we know, Singlemode suitable for long distance transmission and multimode use with short distance. At the same time. LSZH jacket has a certain flame retardant effect.
Each connectot will be protected by a dust cap to avoid end face damage affecting the transmission of light signals.
Singlemode LC Jumper with ODVASpecification:
| Item | LC patchcord |
| End face type | APC/UPC |
| Fiber Type | SM(G652,G655,G657)；MM(OM1-OM5) |
| Core number | Simplex or Dumplex |
| Cable Diameter(mm) | 0.9,2.0,3.0 or customized |
| Insertion loss(dB) | ≤ 0.3 |
| Return loss(Min) | UPC SM:50dB APC SM:60 dB PC MM:35 dB |
| Repeatability | ≤ 0.1dB |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | PVC,LSZH |
| Bending radius (Static/Dynamic) |
10D/20D |
| Length | Customized |
Singlemode LC Jumper with ODVA Features
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard:Telcordia GR-326-CORE
Singlemode LC Jumper with ODVA Application
- CATV
- Telecommunication networks
- Active device termination
- Local area networks(LANS)
- Data processing networks
- Test equipment
- Wide area networks(WANS)
HOW TO CREATE OUR FIBRE OPTIC PATCHCORD PART NUMBERS
| TK-PC-A-B-C-D-E | |||||
| Eg: TK-PC-6-SX-ST-ST-3-YW= 9/125um SX ST to ST 3M patchcord, Yellow | |||||
| A Fiber Type |
B Cable Type |
C&D Connector Type |
D Length |
E Colour |
|
| TK=Takfly(Company name) | 1=62.5/125um OM1 | DX = Duplex | LC = LC | 3 = 3m | Blue = BE |
| PC= Patchcord | 2=50/125um OM2 | SX = Simplex | SC = SC | 5 =5 m | Orange = OE |
| 3=50/125um OM3 | FT = Flat Twin | FC = FC | 10 = 10m | Aqua = AA | |
| 4=50/125um OM4 | ST = ST | 45 = 45m | Yellow = YW | ||
| 5=50/125um OM5 | MJ = MTRJ | Violet = VT | |||
| 6=9/125um OS2 | E2 = E2000 | ... | |||
| EA = E2000/APC | |||||
Patchcord/Jumper Odering information
| Fiber Type | SM(G652,G655,G657)；MM(OM1-OM5) |
| Fiber count | simplex or dumplex |
| Cable diameter | 2.0, 3.0 or customized |
| Connector | LC, SC,FC,ST |
| Polish type | APC, UPC or PC |
| Jacktet Type | LSZH or PVC |
| Length | 1m... |
| Breakout lengths | customized |
| Jacket color | Yellow, Aqua, Violet or customized |
11. Q: What your payment term?
A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can be 50% deposit in advance, 50% balance paid before delivery.
