GYTA53 GYTY53 Singlemode Outdoor Fiber Optic Cable Direct Buried 36 Fibres DJSA FO Cable

Underground Duct GYTA53 GYTY53 Singlemode Fiber Optical Outdoor Cable Direct Buried 36 Fibres DJSA FO Cable

Description:

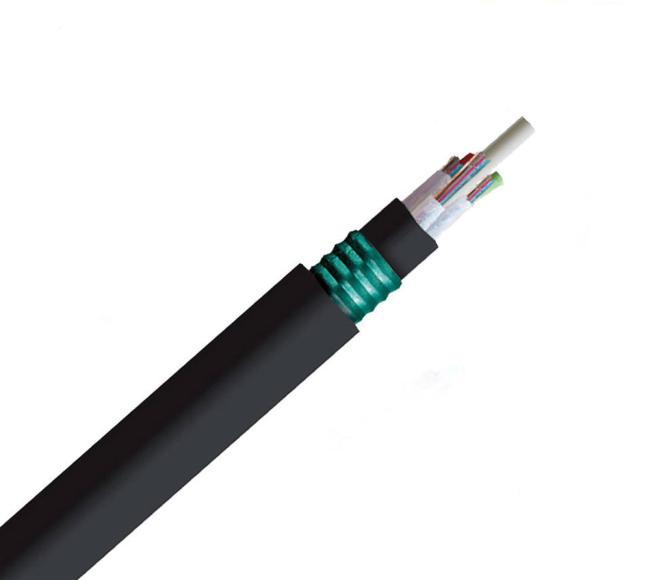

The fibers, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the corrugated steel tape is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

GYTY53 fiber optic cable is with steel wire central strength member, corrugated steel tape and double PE sheath. The cable is used for outdoor underground duct/conduit or direct burid. The fiber amount is up to 288 core.


Features:
♦ Excellent mechanical and temperature performance.
♦ Special tube filling compound ensure a critical protection of fiber and resist the water.
♦ Single steel wire as the central strength member to withstand axial loads.
♦ Inner sheath effectively lower the external mechanical loading.
♦ Corrugated steel tape longitudinal cover cable core and provide good crush resistance.
♦ PE sheath protects cable from ultraviolet radiation.
♦ 100% core filling water prevent cable jelly to ensure the cable watertight.


Application:

♦ Direct buried

♦ Underground conduit/duct
♦ Backbone

Dimensions of Cable Constructions Cable Performance

Mechanical and Environmental Characteristics
