Description:

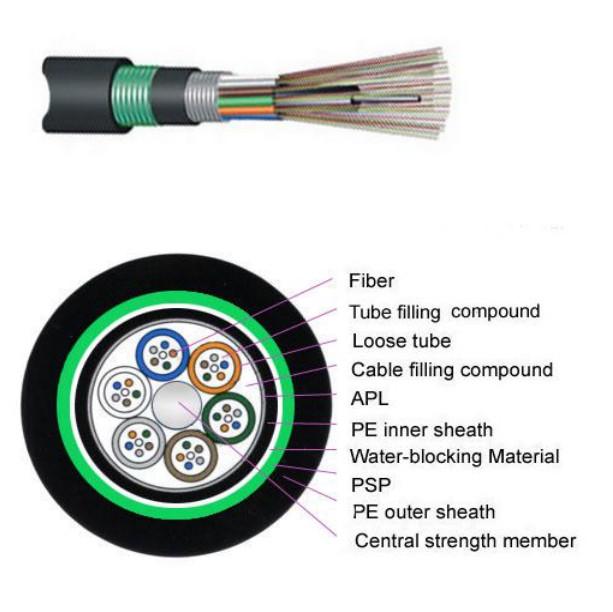

The fibers 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core. which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

Characteristics:

· Corrugated steel(aluminun)tape offers high tension and crush resistance

· special gel in the tube offers ceitical protection for the fibers

· Steel wire or FRP as central strength member

· Anti-UV PE jacker

· Resistant to high and low temperature cycle temperature changes,resulting in anti-aging and longer life-span

Application:

· Aerial/Duct

· Connecting communication equipments

· Multi-cores wiring system in data center

Optical Fiber Characteristics

FAQ:

Q: Are you a manufanufacturer?
A: yes, we are a manufacturer, FTTH solution, and data center total solution provider in Shenzhen, China, established in 2000.

Q: Do you provide OEM service ?
A: Yes, we can print your logo or label on the products or on the box.

Q: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.

Q: What is your delivery time ?
A: Generally, sample: 3~5 working days. Formal order: 7-10 working days.

Q: What's your payment terms ?
A: We accept T/T, Western Union, Paypal, L/C
For samples: 100% payment. Formal order: 30%~100% as deposit, balance payment before shipment.
