Description:

    The base station pulls the fiber optic jumper line, uses the GYFJH 7.0mm LSZH black pull the fiber optic cable,

 Applications:


• FTTA

• Telecommunication networks

• Active device termination

• Local area networks(LANS)

• Data processing networks

• Test equipment

• Wide area networks(WANS)

Features:


• Low insertion loss and High reflection loss

• Good exchange ability

• Good durability

• High temperature stability

• Standard:Telcordia GR-326-CORE

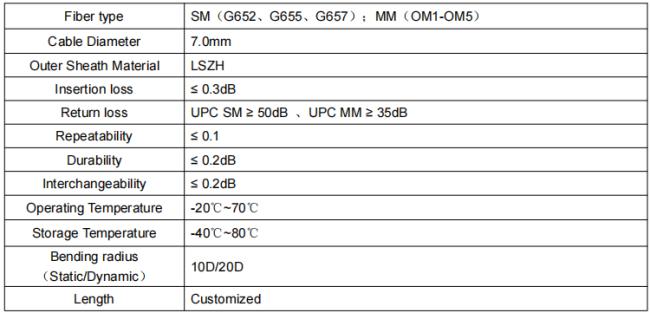

Specifications:

How to order Fiber Optic Patchcord

1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement

8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female, fiber count (4/8/12/16/24/32 fiber )
