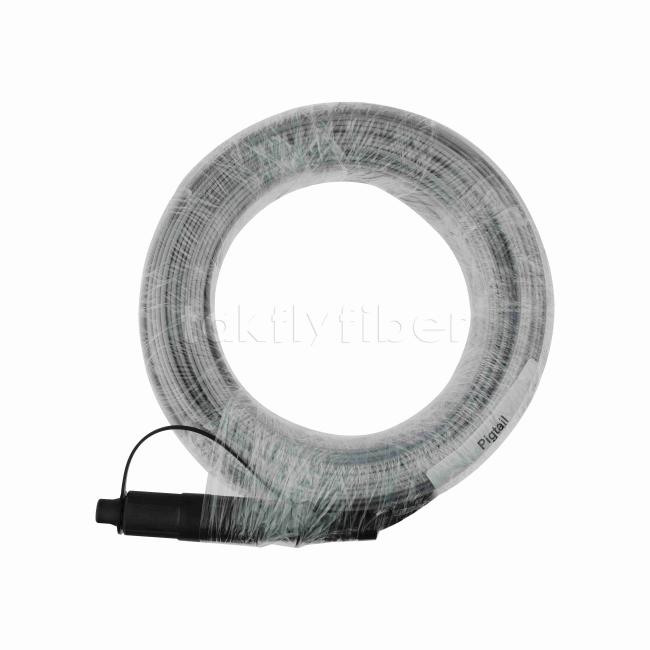

Optitap SC/APC 1Core FTTH Self-Support Drop Cable Fiber Optic Pigtail 40M SM G657A1 LSZH Low Friction Jacket
Optitap SC/APC 1Core FTTH Self-Support Drop Cable Fiber Optic Pigtail 40M SM G657A1 LSZH Low Friction Jacket
A FastConnect drop cable adopts an anti-vibration design. It allows plug and play (no splicing), helps customers deploy it fast, and reduces time. In addition, it ensures high network reliability and durability.
- Fiber Optic Attributes
- 1. Mode field diameter:8.6um±0.4um at 1310nm
- Cladding diameter:125.0um±0.7um
- Coating diameter:245um±10um
- Coating-cladding concentricity error:≤12.5um
- Cut-off wavelength:≤1260nm
- Attenuation coefficient:1310≤0.4dB 1550≤0.3dB
Fiber Optic Pigtail Specifications
- FTTH Cable information
- Number of fiber:1 core
- Fiber type:G657A1
- Strength member material: Steel wire;
- Diameter:0.5mm*2
Self support Messenger wire:
- Material:steel wire
- Diameter:1.2mm
Outer sheath:
- Material:LSZH Black
- Cable size:5.1*2.0mm
Connector Test specifications
| Item | specifications |
| Type | SC/APC(1310) |
| Insertion Loss |
≤0.3 dB + 0.36 dB/ km*L(km) @ 1310nm ≤0.3 dB + 0.25 dB/ km *L(km) @ 1550nm |
| Return Loss | ≥60dB |
| Endface | IEC 61300-3-35 |
| Durability(1000Mating) | 0.2dB Max.increase |
| Installation Temperature | -10℃～+60℃ |
| Operating Temperature | -25℃~70℃ |
| Storage Temperature | -40℃~75℃ |
| Cable pull | 90N |
Optical fiber performance
| Tensile strength | Long term(N) | 300 |
| Short term(N) | 600 | |
| Crush load | Long term(N) | 1100 |
| Short term(N) | 2200 | |
| wavelength(nm) | 1310/1550 | |
| Attenuation(dB) | 0.4/0.3 | |
| Cladding diameter(um) | 125±1 | |
| Cladding non-circularity | ≤1.0% | |
| Coating diameter(um) | 242±7 | |
Why choose TAKFLY--Advantages as follows:
Professional manufacturer:
- With more than 24 years manufacturing experience in Fiber optic products;
- More than 450 assembly workers with 3 years experienced;
- More than 10 R&D Engineers;
- 16 Sets Germany imported Injection Machine and 16 Production Lines;
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, ect.
- OEM Brand is acceptable.
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia ,Global Soure Electronic Exhibition,etc.
Quality Control:
- Spot check the raw material incoming inspection before production;
- Fully check after every individual process finished;
- Fully check production half done;
- Fully check the finished products before packing;
- Spot check before shipping;
Delivery:
- Samples: 1-3 working days.
- Mass Production Order: 3-7 working days.
- Packaging: Plastic Bag, Carton and Pallet are available according to your request.
Price: If your QTY is big, the price could be negotiated.
