Waterproof 1x4 Mini FiberHub CLOSURE ITU-T SM G657A2 2.0mm Cable Fiber Optic PLC Splitter IP68
Price:
Can be negotiated
MOQ:
1 pcs
Delivery Time:
3-7 work days
Brand:
Takfly/OEM
Product Description
Waterproof 1x4 Mini FiberHub CLOSURE ITU-T SM G657A2 2.0mm Cable Fiber Optic PLC Splitter IP68
Mini FiberHub Closure Introduction
Mini FiberHub Closure provides the most cost-effective method of deploying optical fiber in outside plant distribution networks at speeds significantly faster than traditional field installations. The assemblies guarantee an easy, one-step connection system with the combined push-pull insertion and nut-style mechanical latch.
Mini FiberHub Closure provides quick installation solutions and has excellent performance when mating with SuperTap connectors. Compatible with both armored and non-armored cables.
Specifications
| Compliance Standards | GR-3120, GR-3152, IEC 61753-1, IEC 61754-4 |
| Insertion Loss (SuperTap/SC&LC)* | Max. 0.5dB, Mean 0.15dB (8° angled) |
| Insertion Loss (SuperTap/MPO) | Max. 0.6dB, Mean 0.35dB (8° angled) |
| Return Loss (SuperTap/SC&LC) | Min 55dB (8° angled) |
| Return Loss (SuperTap/MPO) | Min 55dB (8° angled) |
| Fiber Type | ITU-T G.657A2 |
| Operation Temperature | -40°C to 70°C |
| Storage Temperature | -40°C to 70°C |
| Dust Cap Max. Pulling Force | 100lb |
| Water Resistance | IP68 |
*SuperTap/SC connector is compatible with OptiTap™
Technical Drawing

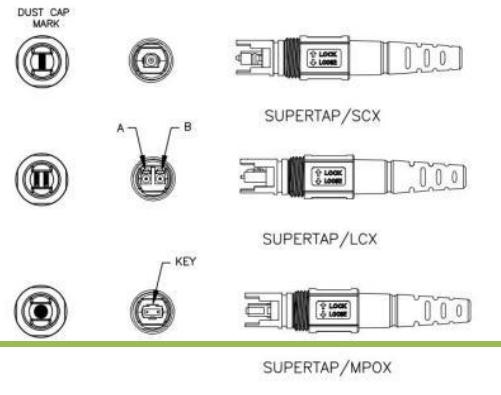

SuperTap Plug Connector Mating Options
Additional Information
Remark: "X" means polishing method. A: APC polishing; U: UPC polishing
Features and Benefits
- Provides moisture and dust protection for use in harsh industrial environments
- IP68 protection, salt-mist proof, humidity proof, dust proof
- Drastically reduces field splicing with predetermined loss at each waterproof tether access point
- Utilizes traditional field installation techniques for aerial, below ground and duct applications
- Reduces installation time by as much as 50 percent per network access point
- 100% optically tested to ensure quality performance assemblies
- Available in single mode and multimode styles to work with any common fiber type
- Broad temperature range (-40 to +70°C) ideal for indoor or outdoor applications
- Mark on dust cap helps people who cannot distinguish between colors to operate
Frequently Asked Questions
Q: What is Takfly's Fiber Optic PLC Splitter?
A: Takfly's Fiber Optic PLC Splitter is a kind of optical power management device that is fabricated using silica optical waveguide technology. It can split the optical signal accurately and evenly, and it is available in a variety of configurations.
Q: How is Takfly's Fiber Optic PLC Splitter made?
A: Takfly's Fiber Optic PLC Splitter is made by silicon optical waveguide technology. It is composed of input, output and splitter which can split the optical signal accurately and evenly.
Q: What are the applications of Takfly's Fiber Optic PLC Splitter?
A: Takfly's Fiber Optic PLC Splitter can be used in a variety of applications such as telecommunications, CATV, local and metro networks, optical fiber sensing, video transmission, etc.
Q: What is the Brand Name of Takfly's Fiber Optic PLC Splitter?
A: The Brand Name of Takfly's Fiber Optic PLC Splitter is Takfly/OEM.
Q: Where is Takfly's Fiber Optic PLC Splitter made?
A: Takfly's Fiber Optic PLC Splitter is made in Shenzhen, China.
