FOSP Fiber Optic Splice Protector – Heat Shrinkable Tube for Fusion Splice Protection

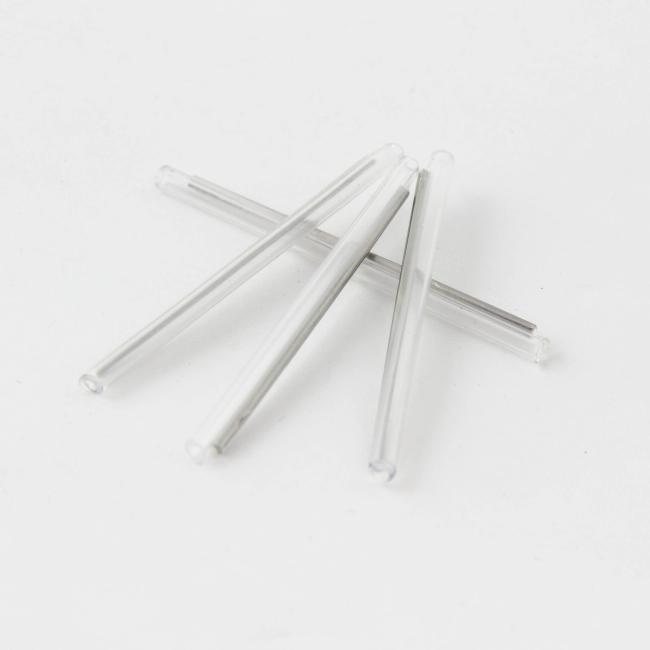

Fiber Optic Heat Shrinkable Tubing designed for fusion splice protection and coating restoration. This advanced protector consists of three integrated components that work together to ensure optimal performance and durability.
- Stainless steel or ceramic reinforcing rod - Provides mechanical strength at the splice joint
- Hot melt tube - Seals and restores the fiber coating
- Cross-linked polyolefin outer tube - Offers environmental protection and shrinkage stability
When heated, the outer polyolefin tube shrinks, melting the inner hot melt adhesive to create a complete seal around the splice area. The reinforcing rod adds essential rigidity, preventing fiber bending or breakage at the critical fusion point.
Rebuilds fiber coating to provide mechanical strength at fusion joint areas while maintaining optimal optical transmission properties. Consists of reinforcing rod, hot fusion tubing, and cross-linked polyolefin for comprehensive protection.
- Operating temperature: -45℃ to 100℃ / -45℃ to 135℃
- Minimum shrink temperature: 80℃
- Minimum fully recovery temperature: 120℃
- Moisture resistant for environmental protection
- Clear sleeve enables easy splice detection before shrinkage
- Easy to use and prevents damage to optical fiber during installation
- Color-coded splice protectors for convenient installation and identification
Item number composed of: OD after Recovery + Steel rod OD + Fusion tube ID + Casing length
26 Years of Manufacturing Experience in fiber optic products
- Experienced Assembly Team: More than 80 assembly workers with 6+ years of experience
- Strong R&D Capability: More than 10 R&D engineers
- Advanced Production Equipment: 16 sets of German imported injection machines and 16 production lines
- Comprehensive Testing Facilities: More than 30 sets of testing instruments including OTDR, ILD, VFL, RL, IL, tension strength testers, crush resistance testers, power meter testers, light checkers, etc.
- OEM Branding Accepted: Custom logo/branding available
- Incoming inspection: Spot check of raw materials before production
- In-process inspection: Full inspection at every individual process completion
- Pre-packaging inspection: Full inspection of finished products before packing
- Pre-shipping inspection: Spot check before shipping
Active participation in major industry events including OFC, FOCC, ConnecAsia, NFTCOM, AFRICACOM, SMART ICT, Contelem, China, and Source Electronics Exhibition.
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Packaging: Plastic bag, carton, and pallet options available according to your requirements
