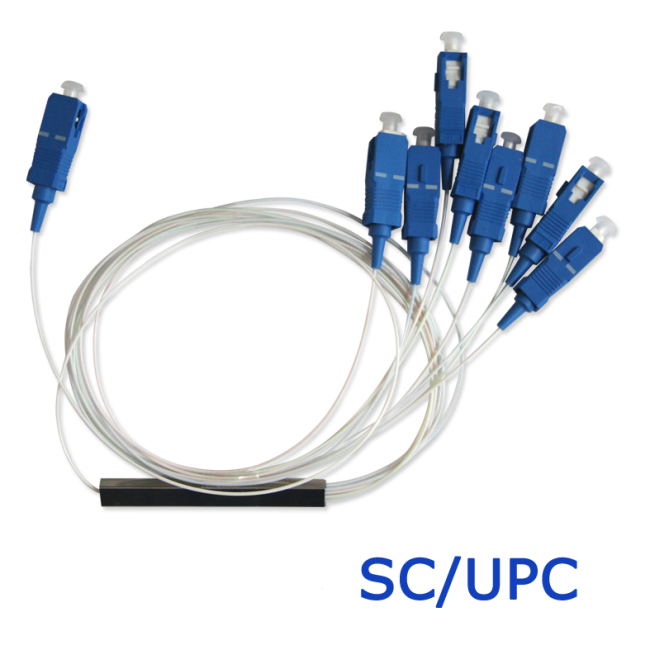

1x8 Fiber Optic PLC Splitter Mini Steel Tube SC APC UPC Connectors For Telecom
Splitter 1X8 SC APC UPC Steel Tube Mini Fiber Optic PLC Splitter (FTTH, CATV, telecom)
Description
PLC-Planar Lightwave Circuit Splitter is a kind of power splitter based on the integrated quartz baseplate. Single Mode PLC 1×N and 2×N Splitter divide uniformly optical signals from one or two inputs to multiple outputs, and spliter can be operated in reverse direction to combine multiple signals into one fiber or two fibers.
Feature
● Broadband Operation Wavelength
● Low Insertion loss
● Low PDL
● Compact Design
● Good channel-to-channel uniformity
● High Reliability and Stability
Applications
● Telecommunication sector
● PON Syster
● FTTH
● CATV
● Video Transmission

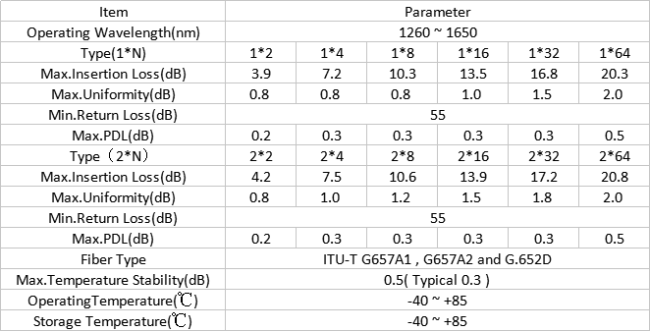

Specification
PackagingType and Dimension
| Package type | Unit(mm) | 1*2 | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 |
| Basic Packaging Metel box | LxWxH | 40*4*4 | 40*4*4 | 40*4*4 | 60*7*4 | 60*7*4 | 60*12*4 |
| Mini Module Metal Box | LxWxH | 60*7*4 | 60*7*4 | 60*7*4 | 60*12*4 | 80*20*6 | 100*40*6 |
| Module Plastic Box | LxWxH |
100*80*10 /90*20*10 |
100*80*10 | 100*80*10 | 120*80*18 | 120*80*18 | 140*115*18 |
| Package type | Unit(mm) | 2*2 | 2*4 | 2*8 | 2*16 | 2*32 | 2*64 |
| Basic Packaging Metel box | LxWxH | 60*7*4 | 60*7*4 | 60*7*4 | 60*7*4 | 80*20*6 | 80*20*6 |
| Mini Module Metal Box | LxWxH | 60*7*4 | 60*7*4 | 60*7*4 | 80*12*4 | 80*20*6 | 100*40*6 |
| Module Plastic Box | LxWxH |
100*80*10 |
100*80*10 | 100*80*10 | 120*80*18 | 120*80*18 | 140*115*18 |
