8/12/24 Cores MPO/MTP Female to LC Fiber Optic Fanout Cable , OM3 50/125 For QSFP
8/12/24 Cores MPO/MTP Female to LC Fiber Optic Fanout Cable , OM3 50/125 For QSFP

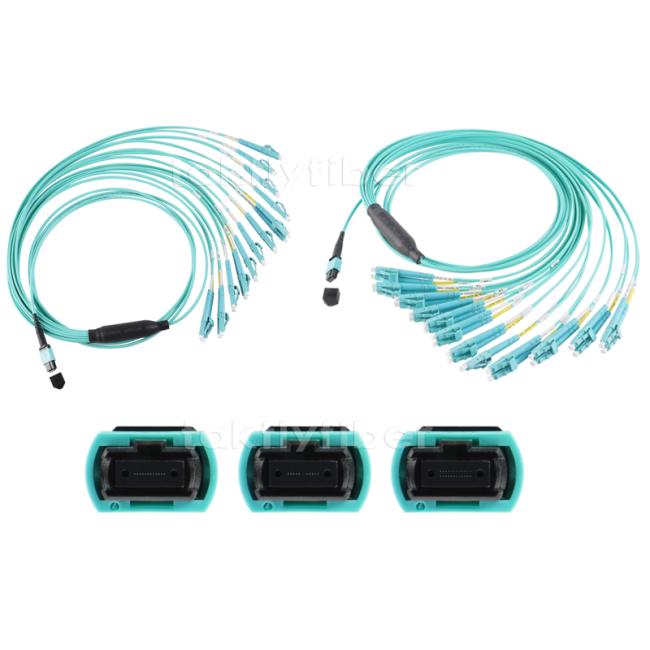

MPO MTP Female To LC fanout/breakout cables are the ideal connection to patch panels and data distribution routing. They can be made with both 12 fiber MTP connectors and 24 Fiber MTP connectors. A variety of options are available and include MPO/MTP to LC, SC, ST, and FC fiber optic patch cables.

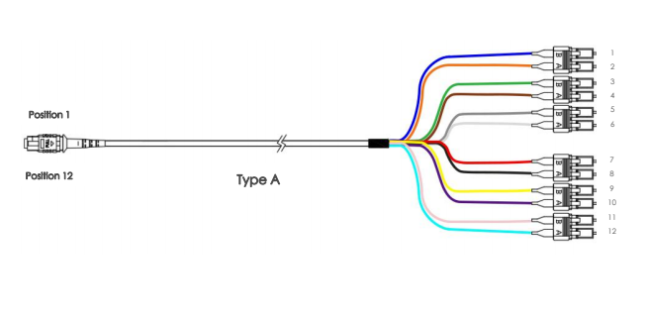

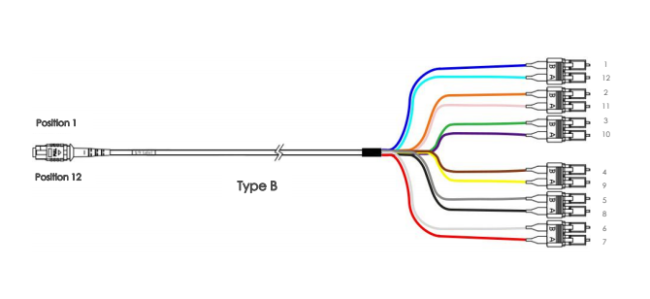

MPO/MTP has a polarity distinction. In order to ensure the accuracy of the polarity in the MTP/MPO network system, we usually need to confirm the polarity of the MTP/MPO before production. There are three types of polarity :Type A (straight type), Type B (cross), and Type C (cross pair).

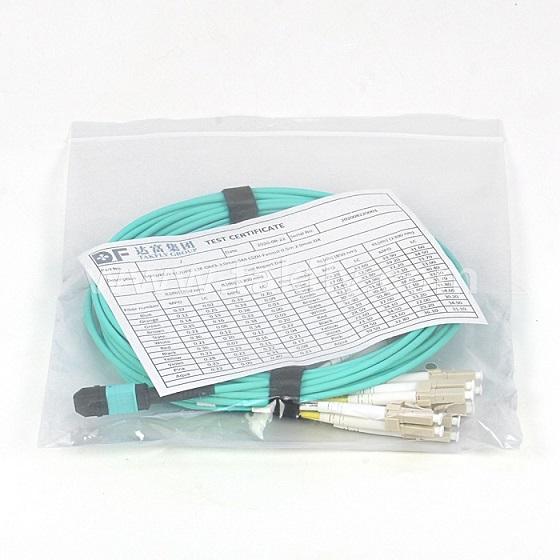

Certiticates for MPO MTP Female To LC Fiber Optic Fanout Cable : Takfly has been certified with CE, ROHS, REACH , CPR, ISO9001 and ISO14001.
MPO / MTP Fiber Optic Trunk Cable Specifications:
| Item | LC / SC / ST / FC....... | MPO / MTP | |
| End face type | PC / UPC / APC | PC and APC | |
| Fiber type | SM(G652 / G655 / G657)；MM(OM1-OM5) | ||
| Core number | 2 / 4 / 6 / 8 / 12 / 24 | ||
| Cable Diameter | 0.9 / 2.0 / 3.0 |
Mini Round cable:Max4.5mm； Ribbon cable:Max3.0*5.0mm |
|
| Insertion loss(dB) | ≤ 0.3 |
Standard:≤0.35/0.7(Typical/Max) Low Loss:≤0.2/0.35(Typical/Max) |
|
| Return loss(Min) |
UPC SM:40dB APC SM:60 dB PC MM:25 dB |
SM: APC:60dB |
MM: PC:20dB |
| Test Wavelength(nm) |
SM:1310/1550 MM:850/1300 |
||
| Repeatability | ≤ 0.1dB | ||
| Durability | ≤ 0.2dB | ||
| Interchangeability | ≤ 0.2dB | ||
| Operating Temperature | -20℃~70℃ | ||
| Storage Temperature | -40℃~80℃ | ||
| Outer Sheath Material | PVC / LSZH | ||
| Bending radius(Static/Dynamic) | 10D/20D | ||
| Length | Customized | ||
MPO MTP Female To LC Fiber Optic Fanout Cable Features:
- Precision molded MT ferrule
- High precision guide pins for exact alignment
- Compact design, up to 4,8,12,24 fibers
- EC 61754-7 Compliant
- EIA/TIA-604-5 Compliant
MPO MTP Fiber Optic Fanout Cable Applications:
- Asynchronous Transmission Mode(ATM)
- Gigabit Ethernet
- Active Deviced/Transceiver Interface
- CATV, Video and Multimedia
- Premise Installations
- Telecommunication Networks
- Parallel optical interconnect between PC Cards and patch panels
- Interconnection for O/E modules
- Industrial & Military
- Optical Switch interframe connections
With 21 years manufacturing experince in Fiber Optic Products, Takfly pay high attention to the production of high quality standard of MPO/MTP products, which include MPO-MPO and MTP-MTP Trunk Cable, MPO/MTP-LC, MPO/MTP-SC, MPO/MTP-FC, MPO/MTP-ST and MPO/MTP-CS breakout cable, MPO/MTP Cassette, MPO Patch Panel, ect.
The advantages of Takfly’s MPO products as below:
- CE, ROHS, CPR, ISO9001 and ISO14001 certified.
- High performance in insertion loss return loss.
- Connector fibers from 2 fibers to 72 fibers.
- OEM brand is available.
- Competitive price and fast delivery.
If you’re dealing with data center and 5G projects, Takfly would be your good choice.
I have been working in this field more than 6 years, I believe, I could give you very good service and professional answers!
If you’re interested in our products or have any doubt, why not send me inquiry at once?
