8 Ports LC SC Wall Mount Fiber Optic Termination Box For FTTH
8 Ports LC SC Wall Mount Fiber Optic Termination Box For FTTH
Fiber optic termination box great for jointing fiber cable and pigtails. It protects fiber optic splices and enables distribution. The termination box is wall-mounting and is mainly used in telecommunication and network equipment rooms.
This fiber access terminal box is made of ABS+PC. It is compatible with 1:8 mini PLC splitter, and SC/ LC adapters. The maximum fiber splice capacity of the box is 8 fibers, which is achieved by 1 single splice tray.
8 port fiber splitter distribution boxes are designed to work with 1:4, 1:8 PLC fiber optic splitter as well as fiber optic pigtails in outdoor use
wall mountable metalic fiber terminal box works for both indoor and outdoor application.
Fiber Optic Termination Box Features:
- Total enclosed structure, be in nice shape
- Protects and manages cable effectively
- Secured with anti-theft locking mechanism
- Standard size, light weight
- High quality PC +ABS material
- Good properties of dust, and moisture proofing,IP65
- Suitable for both outdoor and indoor use
- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one
- Suitable for SC and LC duplex adaptor and pigtail
- Easy to operate

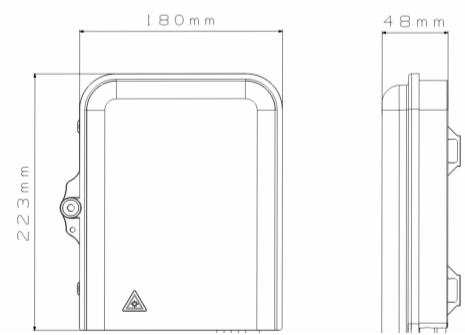

Fiber Optic Termination Box Specification:
| Work Temperature | -40 ⁰C ~+85 ⁰C |
| Relative Humidity | ≤ 85% (+30 ⁰C) |
| Atmospheric Pressure | 70Kpa~106Kpa |
| Insert Loss | ≤ 0.2dB |
| UPC Return Loss | ≥ 50dB |
| APC Return Loss | ≥ 60dB |
| Insert and Pull out Life | ≥ 1000 times |
|
Insulation Withstand Voltage |
The grounding device is insulated with the Termination box, IR ≥1000m Ω/500V (direct current) Between the grounding device and the box body, the withstand voltage is over 3000V/Min, no breakdown and flashover. U ≥3000V (direct current)
|
Fiber Optic Termination Box Application:
- The telecommunication network, metropolitan area network, optical fiber communication system.
- Optical testing equipment/instrument.
- CATV optical fiber, optical fiber sensor.
- Optical fiber broadband access network, FTTH optical fiber.
- Optical fiber distribution frame, frame type and wall type optical fiber distribution unit.
More Pictures:
Why choose TAKFLY--- Advantages as follows:
Professional manufacturer:
- More than 21 years manufacturing experience in Fiber optic products-one stop purcharsing.
- More than 450 assembly workers with 3 years experienced;
- More than 26 R&D Engineers;
- 16 Sets Germany imported Injection Machine and More than 10 Cable Production Lines;
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, ect.
- OEM Brand is acceptable.
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia ,Global Soure Electronic Exhibition,etc.
- After-sales Services: Available for 24 hours.
Quality Control:
- Spot check the raw material incoming inspection before production;
- Fully check after every individual process finished;
- Fully check production half done;
- Fully check the finished products before packing;
- Spot check before shipping;
Delivery:
- Samples: 1-3 working days.
- Mass Production Order: 3-7 working days.
- Packaging: Plastic Bag, Carton and Pallet are available according to your request.
Price: If your QTY is big, the price could be negotiated.
I have been working in this field more than 6 years, I believe, I could give you very good service and professional answers!
If you're interested in our products or have any doubt, why not send me inquiry at once?
