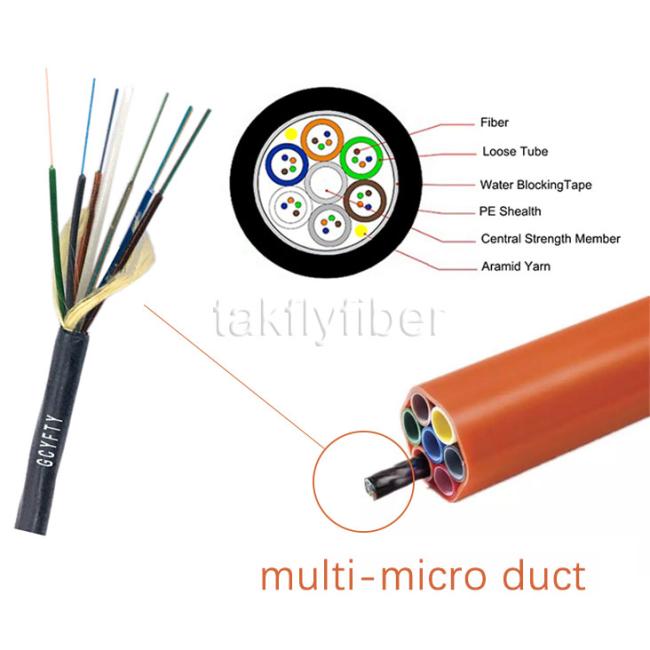

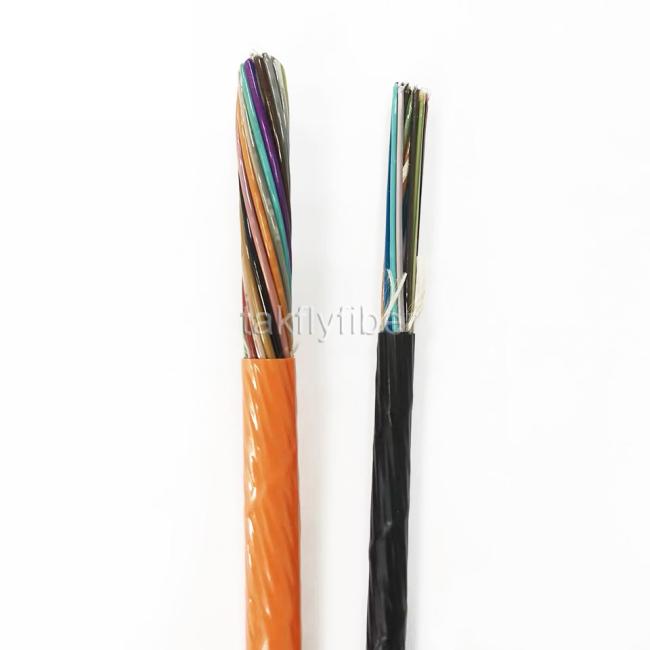

12C 24C 48C 96C GCYFTY Outdoor Fiber Optic Cable Non-Metallic HDPE GCYFXTY Air Blown Micro fO Cable
12C 24C 48C 96C GCYFTY Outdoor Fiber Optic Cable Non-Metallic HDPE GCYFXTY Air Blown Micro FO Cable
Description
This product has good mechanical performance and the environmental performance, weight light, diameter is small, optical fiber capacity is big, sheath friction coefficient is low, the air blows the speed fast, the distance is long, the construction efficiency is high, the product cost is low.

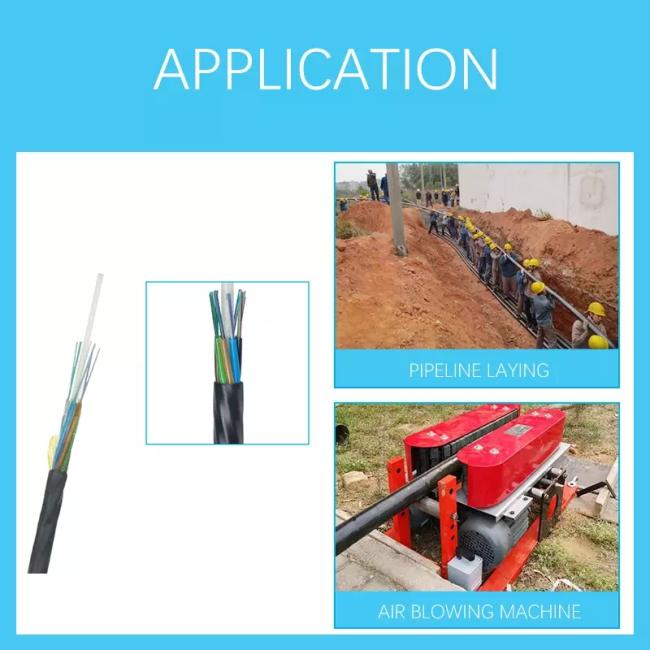

Application
This product is suitable for FTTX, access network and backbone network.
Reliability
The product has completed mass production, with mature and stable production process, strict quality control requirements, regular product performance verification to ensure the reliability of the product.
Reference
This product is designed, purchased, manufactured, tested and tested according to the following standards, and is subject to the latest published standards.
Optical Fiber Characteristics
| No | Items | Test Standard | Test Method |
| 1 |
Core non-circularity |
≤ 6% | ITU-T G.652 |
| 2 |
Cladding diameter |
125.0±0.7μm | |
| 3 |
Core/cladding concentricity error |
≤ 0.6μm | |
| 4 | Cladding non-circularity | ≤ 1.0% | |
| 5 | Coating diameter | 245±10μm | |
| 6 |
Coating/cladding concentricity error |
≤ 12μm | |
|
7 |
Attenuation coefficient |
1310nm≤0.35dB/km | |
| 1550nm≤0.21dB/km | |||
| 9 |
Zero dispersion slope |
≤ 0.092ps/(nm2·km) | |
| 10 |
Zero dispersion wavelength |
1300~1324nm | |
| 11 | Polarization mode dispersion | ≤ 0.20 ps/√km | |
| 12 |
Mode field diameter |
1310nm:9.0±0.4μm | |
| 13 | Cut-off wavelength | 1170~1330nm | |
|
14 |
Chromatic dispersion |
1288~1339nm≤3.4ps(nm·km) | |
| 1550nm≤18 ps/(nm·km) | |||
| 1625nm≤22 ps/(nm·km) |
Fiber and Loose Tube Color Code
| No | Color | |
| 1 | Blue | |
| 2 | Orange | |
| 3 | Green | |
| 4 | Brown | |
| 5 | Grey | |
| 6 | White | |
| 7 | Red | |
| 8 | Black | |
| 9 | Yellow | |
| 10 | Violet | |
| 11 | Pink | |
| 12 | Turquoise | |

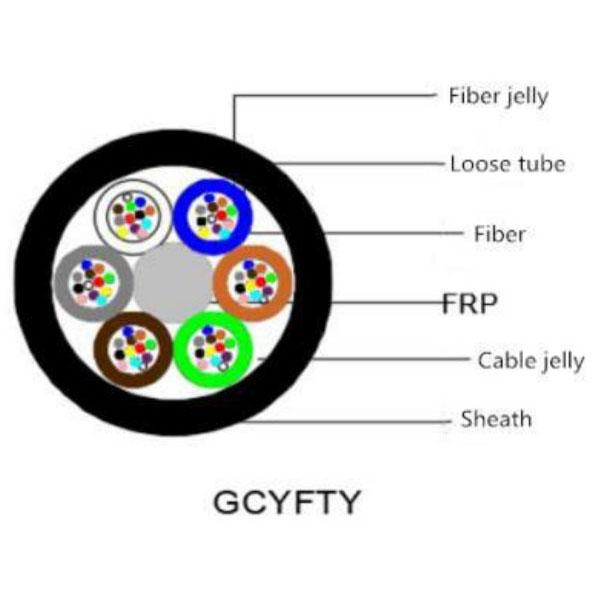

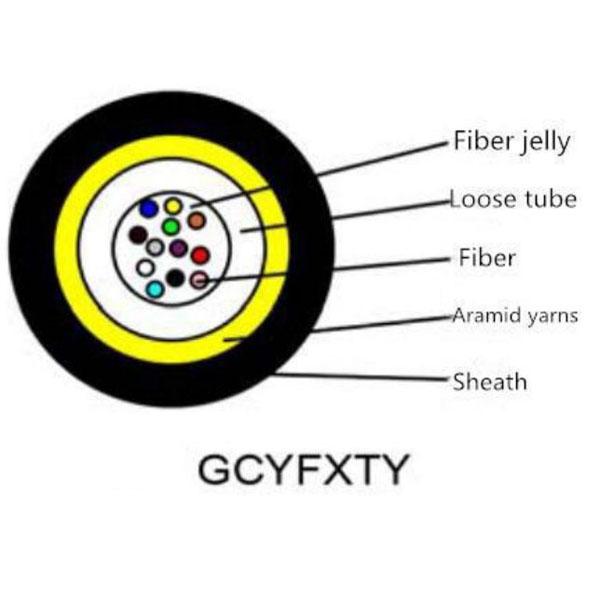

Technical Data
| Cable Type. |
Fiber Count
|
Tube NO x
Fiber per tube
|
Filler Count | Tube diameter | Sheath thickness | Outer diameter | Weight | Micro tube diameter |
| mm | mm | mm | kg/km | mm | ||||
| GCYFXTY | 12 | 1x12 | 0 | 2.8 | 0.50 | 4.00 | 13 | 7.0/5.5 |
| GCYFXTY | 24 | 1x24 | 0 | 3.2 | 0.50 | 4.40 | 16 | 8.0/6.0 |
| GCYFTY | 12 | 1x12 | 5 | 1.55 | 0.45 | 5.60 | 23 | 10.0/8.0 |
| GCYFTY | 24 | 2x12 | 4 | 1.55 | 0.45 | 5.60 | 23 | 10.0/8.0 |
| GCYFTY | 36 | 3x12 | 3 | 1.55 | 0.45 | 5.60 | 23 | 10.0/8.0 |
| GCYFTY | 48 | 4x12 | 2 | 1.55 | 0.45 | 5.60 | 23 | 10.0/8.0 |
| GCYFTY | 60 | 5x12 | 1 | 1.55 | 0.45 | 5.60 | 23 | 10.0/8.0 |
| GCYFTY | 72 | 6x12 | 0 | 1.55 | 0.45 | 5.60 | 23 | 10.0/8.0 |
| GCYFTY | 96 | 8x12 | 0 | 1.55 | 0.50 | 6.60 | 34 | 10.0/8.0 |
| GCYFTY | 144 | 12x12 | 0 | 1.55 | 0.50 | 8.60 | 60 | 14.0/11.5 |
FAQ:
Q: Do you provide OEM service ?
A: Yes, we can print your logo or label on the products or on the box.
Q: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.
Q: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q: What is your delivery time ?
A: Generally, sample: 3~5 working days. Formal order: 7-10 working days.
Q: What's your payment terms ?
A: We accept T/T, Western Union, Paypal, L/C
For samples: 100% payment. Formal order: 30%~100% as deposit, balance payment before shipment.
