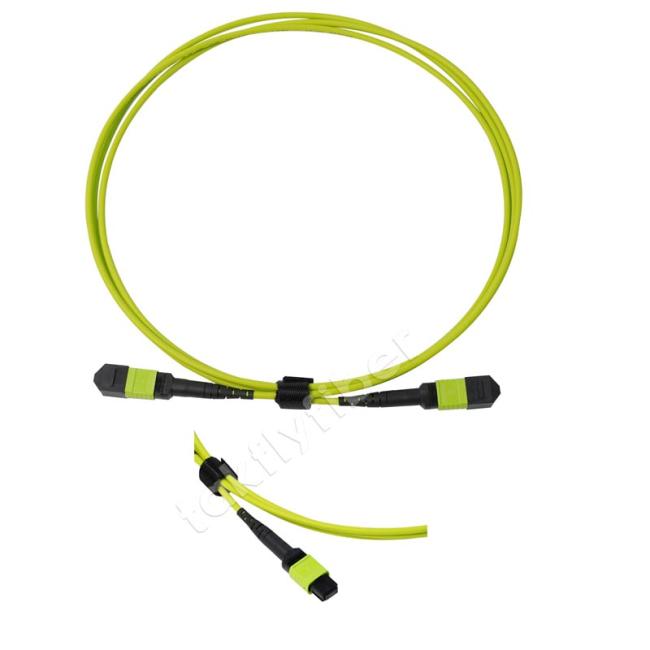

MPO To MPO OM5 Fiber Optic Cable MM 3.0mm LSZH Female 12/24 Cores
12/24 Cores MPO to MPO OM5 Fiber Optic Cable , MM , 3.0mm , Female
Takfly's 12/24 12/24 Cores MPO to MPO OM5 Fiber Optic Cable is used for Telecom/network,Telecommunication, Rack Mount, Datacent backbone cabling system.
OM5 vs OM4: Does OM5 Offer a Longer Transmission Distance than OM4?
Actually, for all current and future multimode IEEE applications including 40GBase-SR4, 100GBase-SR10, the maximum allowable distance is the same for OM5 as OM4. According to a recently done application testing with 40G-SWDM4 transceivers, it shows that 40G-SWDM4 could reach 400 meters over OM4 fiber, while over OM5 cable, the module can achieve link length up to 500 meters. Besides, if a data center is using non-IEEE-compliant 100G-SWDM4 transceivers, it proven that OM5 can support 150-meter reach—only 50 meters more than OM4.
MPO Fiber Optic Patch Cable Features
- High Density- multifibre connector and compact dimension of ruggedised micro cable ease space in costly data centre environments
- Rapid Deployment- factory terminated modular system saves installation and reconfiguration time during moves, adds and changes
- Reliability- 100% tested- combination of high quality components and manufacturing quality control guarantees product to the highest standards
- Next Generation Network Proof- emerging high speed protocol are going to use MTP/MPO interface- your cabling infrastructure remains unchanged
- Compact design, up to 4,8,12,24 fibers.
MPO Fiber Optic Patch Cable Features Specifications
| Item | LC / SC / ST / FC....... | MPO / MTP | |
| End face type | PC / UPC / APC | PC and APC | |
| Fiber type | SM(G652 / G655 / G657)；MM(OM1-OM5) | ||
| Core number | 2 / 4 / 6 / 8 / 12 / 24 | ||
| Cable Diameter | 0.9 / 2.0 / 3.0 |
Mini Round cable:Max4.5mm； Ribbon cable:Max3.0*5.0mm |
|
| Insertion loss(dB) | ≤ 0.3 |
Standard:≤0.35/0.7(Typical/Max) Low Loss:≤0.2/0.35(Typical/Max) |
|
| Return loss(Min) |
UPC SM:40dB APC SM:60 dB PC MM:25 dB |
SM: APC:60dB |
MM: PC:20dB |
| Test Wavelength(nm) |
SM:1310/1550 MM:850/1300 |
||
| Repeatability | ≤ 0.1dB | ||
| Durability | ≤ 0.2dB | ||
| Interchangeability | ≤ 0.2dB | ||
| Operating Temperature | -20℃~70℃ | ||
| Storage Temperature | -40℃~80℃ | ||
| Outer Sheath Material | PVC / LSZH | ||
| Bending radius(Static/Dynamic) | 10D/20D | ||
| Length | Customized | ||
MPO Fiber Optic Patch Cable Applications
- Asynchronous Transmission Mode(ATM)
- Gigabit Ethernet
- Active Deviced/Transceiver Interface
- CATV, Video and Multimedia
- Premise Installations
- Telecommunication Networks
- Parallel optical interconnect between PC Cards and patch panels
- Interconnection for O/E modules
- Industrial & Military
- Optical Switch interframe connections
