40GB 50/125MM OM4 MPO Fiber Trunk Cable 3.0mm Type B Violet Female
40GB 50/125 MM OM4 MPO Fiber Trunk Cable , 3.0mm , Type B , Violet , Female

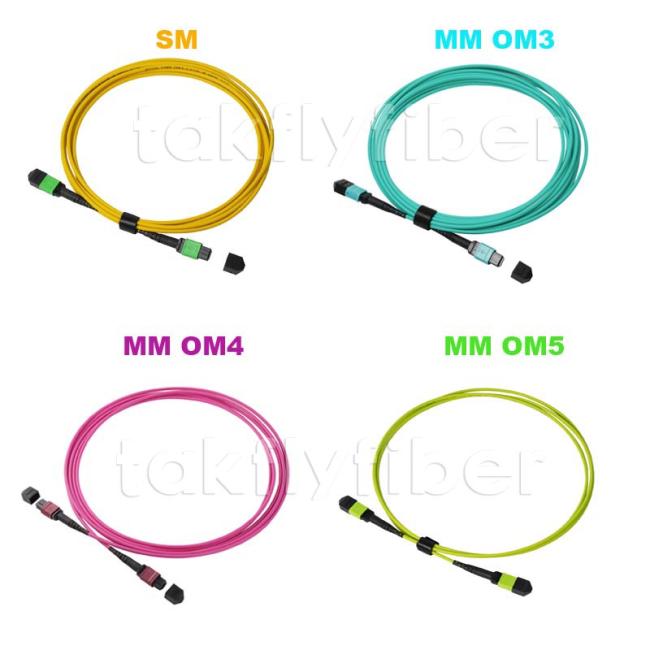

Takfly's 40GB 50/125 MM OM4 MPO Fiber Trunk Cable is for data center infrastructures.
It is increasing as the rapid growth in worldwide IT usage continues. As an experienced and innovative fiber optic patch cable manufacturer,
Takfly supplies complete MPO trunk fiber optic cabling solutions for high-density optical connectivity in the modern data center. Compared with the traditional fiber optic cabling solutions, this high-density fiber optic solution offers higher flexibility and space saving while support very high data rates, such as 10-Gigabit, 40-Gigabit Ethernet and 100-Gigabit Ethernet.
MPO Fiber Trunk Cable Features
- High Density- multifibre connector and compact dimension of ruggedised micro cable ease space in costly data centre environments
- Rapid Deployment- factory terminated modular system saves installation and reconfiguration time during moves, adds and changes
- Reliability- 100% tested- combination of high quality components and manufacturing quality control guarantees product to the highest standards
- Next Generation Network Proof- emerging high speed protocol are going to use MTP/MPO interface- your cabling infrastructure remains unchanged
- Compact design, up to 4,8,12,24 fibers.
MPO Fiber Trunk Cable Specification
| Item | LC / SC / ST / FC....... | MPO / MTP | |
| End face type | PC / UPC / APC | PC and APC | |
| Fiber type | SM(G652 / G655 / G657)；MM(OM1-OM5) | ||
| Core number | 2 / 4 / 6 / 8 / 12 / 24 | ||
| Cable Diameter | 0.9 / 2.0 / 3.0 |
Mini Round cable:Max4.5mm； Ribbon cable:Max3.0*5.0mm |
|
| Insertion loss(dB) | ≤ 0.3 |
Standard:≤0.35/0.7(Typical/Max) Low Loss:≤0.2/0.35(Typical/Max) |
|
| Return loss(Min) |
UPC SM:40dB APC SM:60 dB PC MM:25 dB |
SM: APC:60dB |
MM: PC:20dB |
| Test Wavelength(nm) |
SM:1310/1550 MM:850/1300 |
||
| Repeatability | ≤ 0.1dB | ||
| Durability | ≤ 0.2dB | ||
| Interchangeability | ≤ 0.2dB | ||
| Operating Temperature | -20℃~70℃ | ||
| Storage Temperature | -40℃~80℃ | ||
| Outer Sheath Material | PVC / LSZH | ||
| Bending radius(Static/Dynamic) | 10D/20D | ||
| Length | Customized | ||
MPO Fiber Trunk Cable Applications
- Asynchronous Transmission Mode(ATM)
- Gigabit Ethernet
- Active Deviced/Transceiver Interface
- CATV, Video and Multimedia
- Premise Installations
- Telecommunication Networks
- Parallel optical interconnect between PC Cards and patch panels
- Interconnection for O/E modules
- Industrial & Military
- Optical Switch interframe connections
