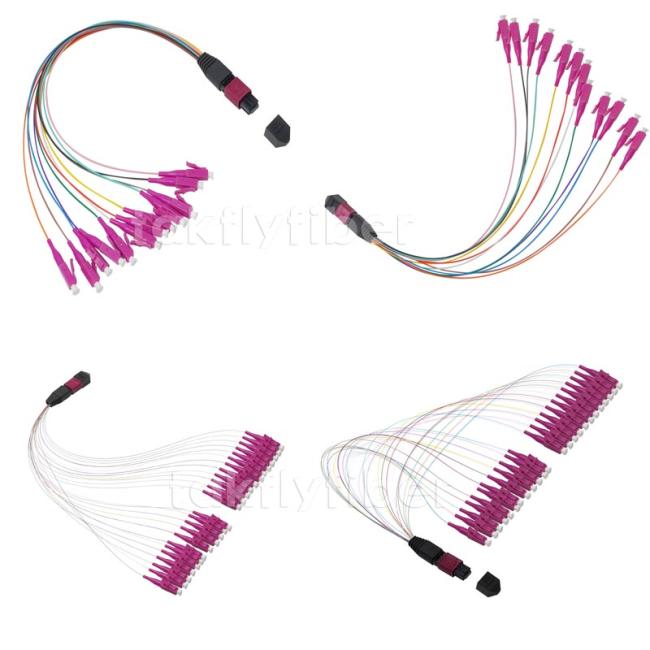

Female To LC Fiber Optic MPO Patch Cord OM4 Violet 12/24 Cores
12/24 Cores MPO to LC Harness Fiber Cable MPO Patch Cord , OM3 , Aqua
MPO fiber cable is applicable in data and telecommunications systems. The MPO fiber cable connector offers up to 8/12/24/32/48 Fiber standard connectors, providing space and cost saving. It used the plug-in lock structure and easy to operate.
MPO to LC Patch Cable Features:
- Fiber type available in single-mode (G652D, G657A1, G657A2), multi mode (OM3, OM4, OM5).
- MPO MTP connectors Insertion loss type: available in Standard, Elite / Low Loss.
- MPO/MTP connector types have 4/8/12/16/24/32/48 fiber.
- Cable diameter normal is 3.0mm round cable, we also have flat cable, 4.5mm double shealth cable, armoured cable, ect.
- MPO/MTP patch cord has A type, B type, and C type ( fiber arrangement).
- MTP/MPO connector type available in Male and Female.
- MPO Female connector is without PIN, MPO male connector with PIN.
MPO to LC Patch Cable Specifications:
| Item | LC / SC / ST / FC....... | MPO / MTP | |
| End face type | PC / UPC / APC | PC and APC | |
| Fiber type | SM(G652 / G655 / G657)；MM(OM1-OM5) | ||
| Core number | 2 / 4 / 6 / 8 / 12 / 24 | ||
| Cable Diameter | 0.9 / 2.0 / 3.0 |
Mini Round cable:Max4.5mm； Ribbon cable:Max3.0*5.0mm |
|
| Insertion loss(dB) | ≤ 0.3 |
Standard:≤0.35/0.7(Typical/Max) Low Loss:≤0.2/0.35(Typical/Max) |
|
| Return loss(Min) |
UPC SM:40dB APC SM:60 dB PC MM:25 dB |
SM: APC:60dB |
MM: PC:20dB |
| Test Wavelength(nm) |
SM:1310/1550 MM:850/1300 |
||
| Repeatability | ≤ 0.1dB | ||
| Durability | ≤ 0.2dB | ||
| Interchangeability | ≤ 0.2dB | ||
| Operating Temperature | -20℃~70℃ | ||
| Storage Temperature | -40℃~80℃ | ||
| Outer Sheath Material | PVC / LSZH | ||
| Bending radius(Static/Dynamic) | 10D/20D | ||
| Length | Customized | ||
MPO to LC Patch Cable Applications:
- Asynchronous Transmission Mode(ATM)
- Gigabit Ethernet
- Active Deviced/Transceiver Interface
- CATV, Video and Multimedia
- Premise Installations
- Telecommunication Networks
- Parallel optical interconnect between PC Cards and patch panels
- Interconnection for O/E modules
- Industrial & Military
- Optical Switch interframe connections
Advantages:
1. Since 2000, 21 years manfufacturing experience in fiber optic products .
2. Availability of R & D with more than 26 engineers.
3. Available of design and making mold with special molding house.
4. High quality, attractive price and fast delivery(2-7days)
5. OEM, ODM customer designs are also welcomed
6. More than 400 workers
7. Excellent service, 24 hours available.
8. 6 years of sales experience in optical fiber products can provide you with professional guidance, help you save cost.
9. CE, ROHS, CPR, ISO9001 and ISO14001 certified.
If you’re dealing with data center and 5G projects, Takfly would be your good choice.
I have been working in this field more than 6 years, I believe, I could give you very good service and professional answers!
If you’re interested in our products or have any doubt, why not send me inquiry at once?
