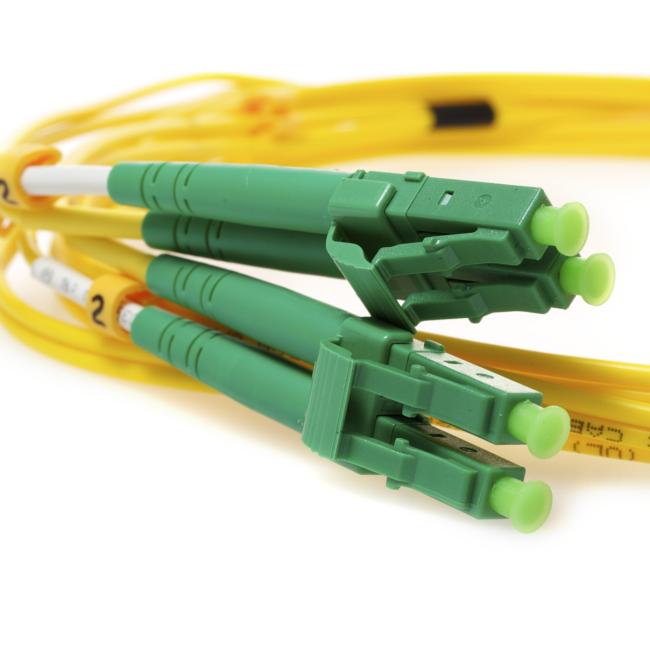

LC APC Duplex SM 8 Degree Angle LC Connector Green 2.0mm
LC APC Duplex SM 2.0mm Green 8 Degree Angle LC Connector
Fiber Optic Patchcord Description:
APC is a single-mode type. Singlemode 9/125 is best used for long cable runs. This single-mode, duplex fiber cable is comprised of corning optical fiber with ceramic connectors.
The connectors utilize an APC (Angled Physical Contact) polish which provides optimal performance as compared to a standard UPC single-mode fiber patch cable.
Fiber Optic Patchcord Applications:
- CATV
- Telecommunication networks
- Active device termination
- Local area networks(LANs)
- Data processing networks
- Test equipment
- Wide area networks(WANs)
Fiber Optic Patchcord Features:
- Low insertion loss and High reflection loss
- Good exchangeability
- Good durability
- High-temperature stability
- Standard: Telcordia GR-326-CORE
Fiber Optic Patchcord Specification:
| End face type | PC,UPC and APC |
| Fiber type | SM(G652,G655,G657)；MM(OM1-OM5) |
| Cable Diameter | 2.0,3.0 or customized(Simplex/duplex) |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB ,APC SM≥ 60 dB, PC MM ≥ 35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | >70N |
| Operating Temperature |
-20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | PVC,LSZH,TPU |
| Bending radius (Static/Dynamic |
10D/20D |
| Length | Customized |
Fiber Optic Patchcord types:
How to order Fiber Optic Connector
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female, fiber count (4/8/12/16/24/32 fiber )
