Plastic FTTH GPON EPON Wall Mount Faceplate 4 Ports SC 8 Ports LC Fiber Optical Rosette
Description:
Solution of pre-terminated integrated with wall outlet composed drop cable and wall outlet with 4fibers . Preterminated wall outlet provide for quick and easy deployments with increased reliability which allow for fast service turn-up , improved network reach and lower overall network operating and maintenance costs . Wall outlet can be mounted on wall . The body is fixed with screws. A cable guidance ensures that the cable’s minimum bending radius is always maintained . The cover protects the contents of the wall outlet and is fixed to the wall outlet without screws just by a simply click-in mechanism . Wall outlet it is equipped with 1,2 or 4pcs SC/APC adapters . Drop cable with 1,2 or 4 fibers is design and integration with low curvature radius G657/A2 . Drop cable is suitable for indoor or outdoor installation. By using this fiber solution are insertion losses reduced with use splice connection on incoming cable fibers.
Takfly 4 port FTTH small FAT is able to hold up to 4 subscribers. It is used as a termination point for the drop cable to connect with patch cable in FTTH indoor application. It integrates fiber splicing, termination, storage and cable connection in one solid protection box.
2. It uses embedded surface frame, easy to install and disassemble, it is with protective door and dusty free, can do OEM for any customers and print requested LOGO.
3. With application of fiber SC duplex and other different environment installed plate or flush plate. All modules can be configured on customer's choice.
4. Cable management can be connected without cutting(with express port). All modules are free of welding.
1. The telecommunication network, metropolitan area network, optical fiber communication system.
2. Optical testing equipment/instrument.
3. CATV optical fiber, optical fiber sensor.
4. Optical fiber broadband access network, FTTH optical fiber.
5. Optical fiber distribution frame, frame type and wall type optical fiber distribution unit.
| Item | Technical data |
| Model No. | TKS-1806-04B |
| Application | 3.0 x 2.0 mm drop cable or indoor cable |
| Fiber diameter | 125μm ( G652D, G657A1, G657A2, G657B3 ) |
| Tight cladding diameter | 250μm & 900μm |
| Mode of application | Singlemode & Multimode |
| Tensile strength | >50 N |
| End-use temperature | -40~+85ºC |
| Adaptor | SC & LC |
| Insertion loss | ≤0.2dB(1310nm & 1550nm) |
| output | 2 |
| Size | 149*110*33 mm |
| Max fiber capacity | 4 SC / 8 LC |
Standard packing: 500 pieces per carton
MOQ: 20 pieces
Sample: Free sample is available for quality evaluation.

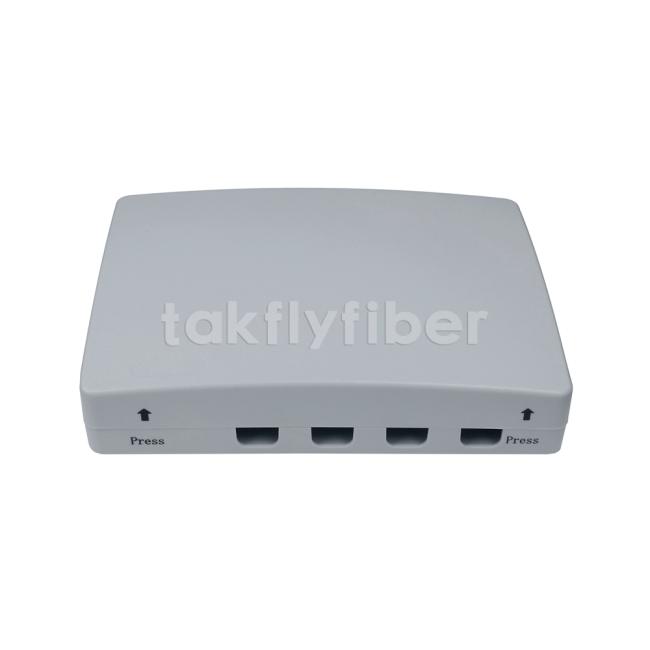

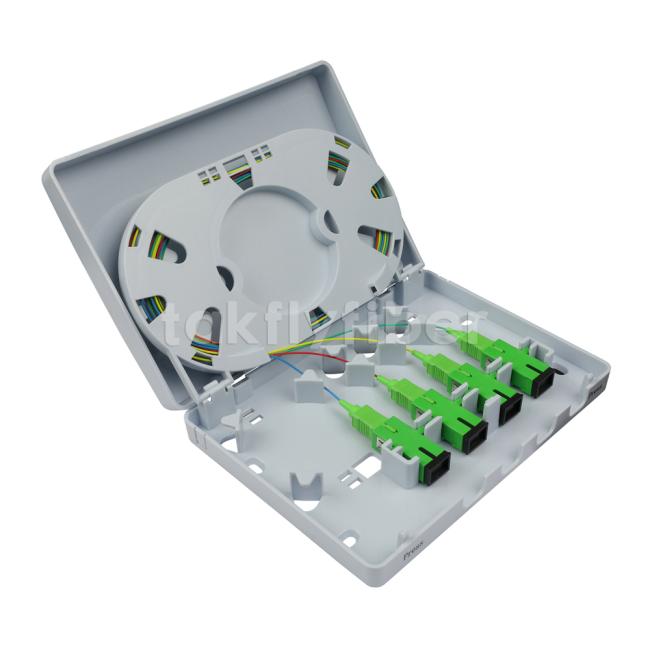

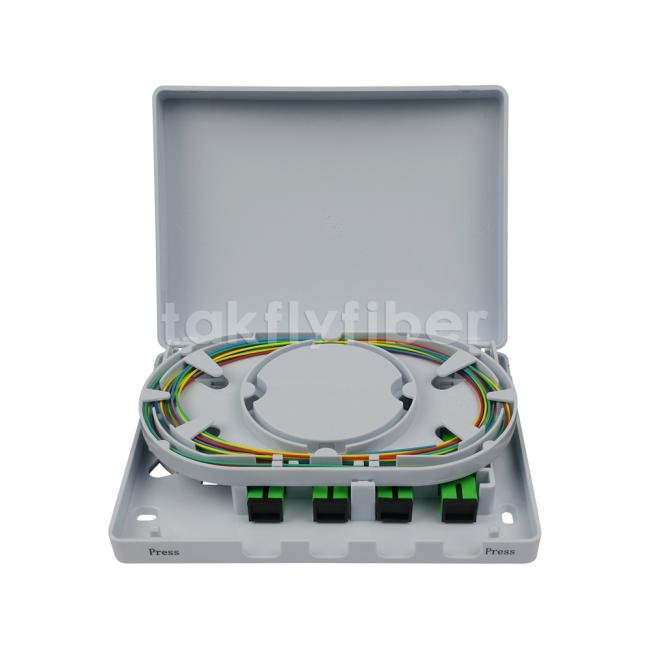

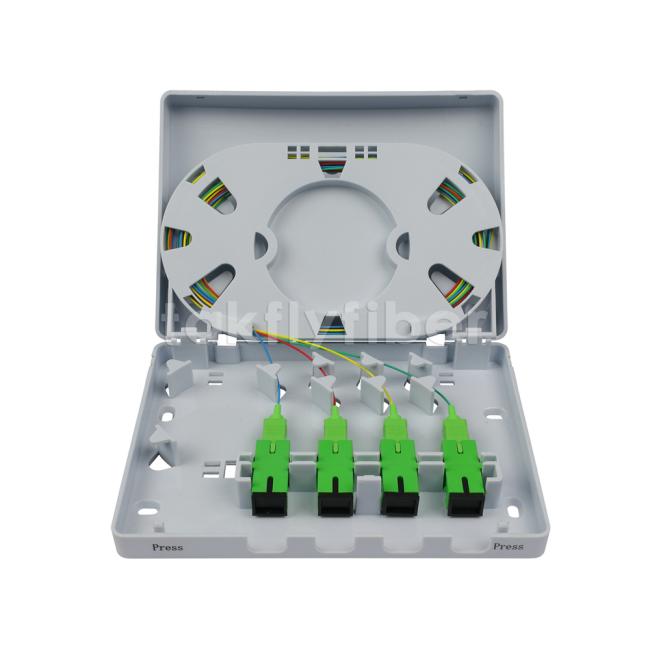

Pictures:
