12 Core FTTH Round Drop 190m/Min LSZH Fiber Optic Cable Machine

Price Negotiable

Price: By negotiation

MOQ: 1set

Delivery Time: Min.30working days

Brand: I-suntop

Product Description

12 Core FTTH Round Drop Fiber Optic Cable Machine Production Line

1. Description for 12 Core FTTH Round Drop Fiber Optic Cable Machine Production Line:

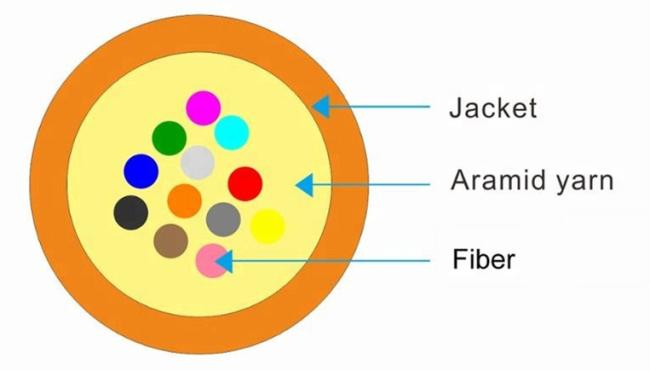

It used to produce 2-12cores mini cable,and extrusion material is LSZH or PVC.

2. Machine main electric brand for 12 Core FTTH Round Drop Fiber Optic Cable Machine Production Line:
Motor: dongguan Motor
Transducer: inovance transducer
Temperature controller: Omron Brand PID Smart type
Man-Machine interface: 10.2 inch color
PLC and Control Module: Siemens
Screw and Barrel: Produced by jinhu Company.
Bearing: Japan NSK or other same quality brand
Low voltage electrical parts: Adopts SIEMENS, OMRON, SCHNEIDER brands,etc.

3. Technical parameters of 12 Core FTTH Round Drop Fiber Optic Cable Machine Production Line :

Extruder type	50×25 Extruder
extrusion material	LSZH,PVC
structure speed	Max.150m/min
production speed	Up to different cable diamter
No of optical fiber pay-off reels	12 or 24 reels
Specification of optical fiber pay-off reels	25km and 50km standard optical fiber reels
Pay-off tension of optical fiber	0.4N-1.5N
Heads no of reinforcement pay-off rack	1head
Specification of reinforcement pay-off reels	PN400 reels and ø254×ø116×ø180×ø32 reels
reinforcement Specification	ø0.4-ø1.0
Pay-off tension of reinforcement	5N-20N
Take-up tension	5-15N
Take-up reels Specification	PN400 reel and PN630 reel(central shaft hole diameter ø 56)
excess loss after extrusion	1550nm<=0.2dB/km(single mold optical fiber)
Center height of machine	1000mm from background

4.Line Configuration for 12 Core FTTH Round Drop Fiber Optic Cable Machine Production Line:

Items	Qty.

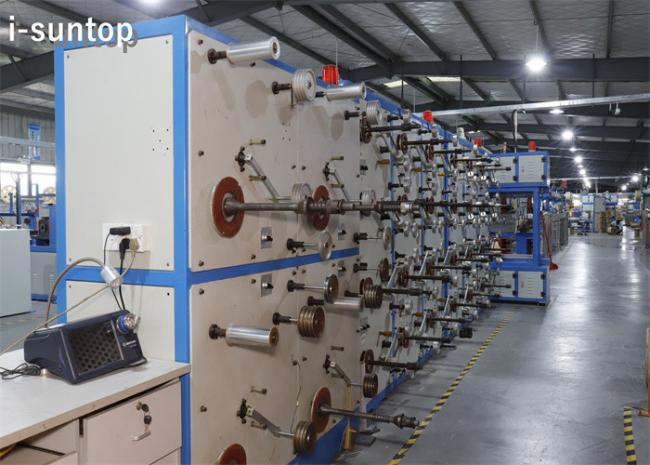

12heads fiber pay-off	1set
Mobile mold supporting	1set
50 extruder	1set
Dryer +hopper	1set
IPC+PLC program control systerm	1set
moving water trough and warm water tank	1set
fixed type cooling water trough and cooling water tank	1set
laser diameter gauge	1set
dual-wheel capstan	1set
cable accumulator	1set
dual-shaft take-up	1set
