Single Head 21kw Steel Wire EVA Coating Machine Fiber Optic Cable Production Line

Price Negotiable

Price: By negotiation

MOQ: 1set

Delivery Time: Min.30working days

Brand: I-suntop

Product Description

Fiber Optic Cable Production Line For Steel Wire EVA Coating

1. Application for Fiber Optic Cable Production Line For Steel Wire EVA Coating :

This line is designed for steel wire plastic (EVA) coating. which is mainly used in FTTH drop cable production.

2. Advantage for Fiber Optic Cable Production Line For Steel Wire EVA Coating:

A. High configuration,the machine use IPC+PLC control system

B. main electric parts are importing,screw adopt the modern latest technology

C. Gear tooth surface abrasion resistance.Low energy consumption of the equipment,a large quantity of extrusion, high production efficiency, high gloss surface,small temperature difference,low noise, good stability, strong continuity of working, convenient operation, long service life.

3. Technical parameters of Fiber Optic Cable Production Line For Steel Wire EVA Coating:

Number of steel wire Pay-off	single head
Structure speed	250m/min
Working speed	Max.200m/min
Steel wire diameter	0.4~1.2mm
Extruded material	Steel Wire
Metering accuracy	≤0.2%
Installed power	About 21KW

4. Line Configuration for Fiber Optic Cable Production Line For Steel Wire EVA Coating:

NO	All parts’ name and specification of	QTY
1	single head Steel wire pay-off	1set
2	600 Pneumatic tension unit	1set
3	High frequency heater	1set
4	30 Extruder +25KG dryer and hopper	1set
5	IPC+PLC control cabinet	1set
6	2.5M primary and secondary movable heating water trough	1set
7	laser diameter gauge	1set
8	8M single-layer U-type fixed type cooling water trough+chiller	1set
9	single-wheel capstan	1set
10	take up tension dancer	1set

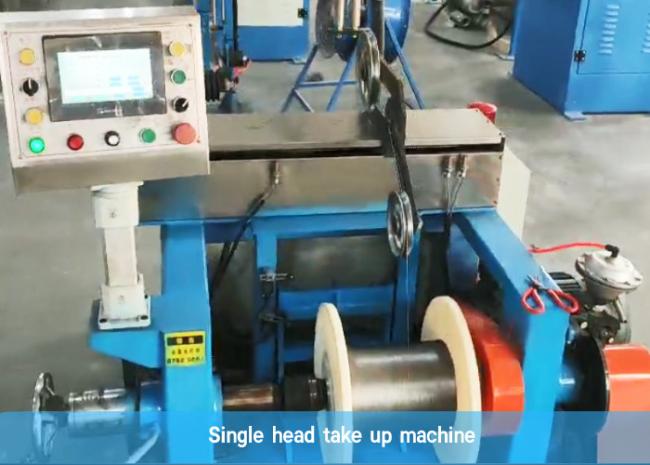

11	semi-auto single-shaft take-up machine	1set
12	Stand-by parts	1set
13	Providing tools	1set
14	Providing data	1set
