FHD IPS TFT EDP Inerface 30 Pin Laptop Lcd Screen 13.3 Inch
13.3 Inch TFT LCD Display Module FHD IPS TFT with 30 Pin EDP Inerface for Laptop
- T13306A is a transmissive type a-Si TFT LCD Display module , which is composed of a TFT-LCD panel , a driver circuit and a backlight unit .
- The panel size is 13.3 inch and the resolution is 1920 ( RGB ) X 1080, the panel can display up to 16 M colors .
- The LCM can be easily accessed by micro-controller via RGB interface.
| Display Size | 13.3 Inch | Resolution | 1920 ( RGB ) X 1080 |
|---|---|---|---|
| Outline Dimension | 114.60 x 184.10 x 2.30 mm | Interface | EDP |
| Brightness | 300 Nits | Viewing Direction | ALL |
| Operating Temperature | -20 To 70 ℃ | Touch Panel | Without Touch Panel |
|
Active area |
107.64 x 172.22 mm |
Driver IC |
ILI6482C |
|
Contrast ratio |
800 : 1 |
Storage Temperature |
-30 To 80 ℃ |
|
Viewing angle |
85/ 85 / 85 / 85 |
Backlight |
White LED x 12 |
| Current | 60 mA | FPC Connector | 40 pin |
| Surface Treatment | Hard Coating | Backlight Lifetime | 20000 hours |
Panel type: a-Si TFT LCD
Panel size: 13.3 inches
LCD digital: TFT digital
Resolution: 1920 (RGB) x 1080
Brightness: 250cd/m2
TFT outline dimensions: 306.20*190.62*2.60(T)mm (typical)
Active area (H x V): 293.76 * 165.24 mm
Contrast ratio: 1000:1 (typical)
Interface: EDP 1.2
Viewing direction: ALL VIEW
Display mode: normally white
Surface treatment: anti-glare
Weight: TBD
Operating temperatures: -10 to 50°C
Storage temperatures: -20 to 60°C
Viewing angle: 89/89/89/89° (type) (CRI: ≥10Ra)
Compliant with RoHS Directive
Image reversion: up/down and left/right
30-pin interface
13.3 Inch TFT LCD Display Module FHD IPS TFT Applications
Digital products , POS machine , instrument & meter , automobile electronics , communication machine , medical machine , security machine , household electrical appliances and others .
Frequently Asked Questions ( FAQ )
Q: What is your Packing term?
A: Protect product with polyfoam and multi layer paper board .
Special protect carton for exporting product .
Per customer requirement .
Q: How about the Delivery term of TFT LCD Display Module?
A:For samples , we will finish production and ship within 7 working days .
We usually arrange DHL , UPS , FedEx express to ship samples .
For bulk orders , usually 30 working days and depends on your design .
We support shipping by air or by sea as per customers' requirements.
Q: Can you support OEM and ODM?
A:We support both standard and customized products and can put your logo on the products .
Our experienced R&D team will support technical questions . ODM and OEM products are warmly welcome .
Q:Why should a client choose your company?
A:We are specialized in offering top quality Mono and TFT LCD solutions.
More than 10 years’ experience in LCD R&D and manufacturing .
Strong R&D term supports perfect custom design services.
Small orders are accepted and welcome.

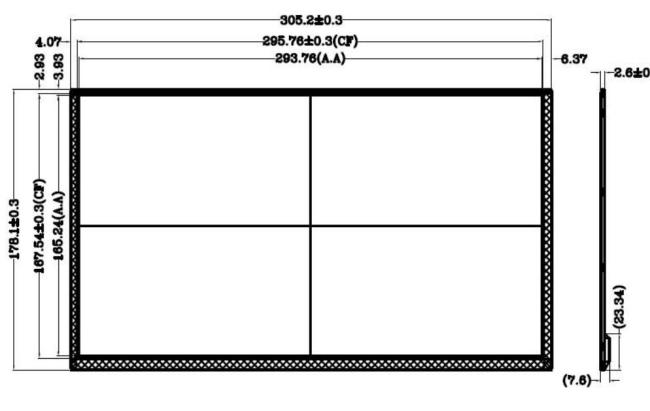

13.3 Inch TFT LCD Display Module FHD IPS TFT Mechanical Drawing
