TM104SDHG30-01 Tianma Industrial TFT Display 10.4 Inch 800x600 Dots
| Diagonal Size: | 10.4 Inch | Brand: | TIANMA |
|---|---|---|---|
| Resolution: | 800 X 600 Dots | View Direction: | 12 O'clock |
| Outline Dimension: | 228.4(H)×175.4(V) ×6.5(D) Mm | Active Area Size: | 211.2(H)×158.4(V) Mm |
| Viewing Angle: | 70/70/60/70 (Typ.) | Operating Mode: | TN, Normally White, Transmissive |
Model TM104SDHG30-01
Diagonal Size 10.4 inch
Type a-Si TFT-LCD, LCM
Pixel Format 800(RGB)×600 [SVGA] 96PPI
Configuration RGB Vertical Stripe
Active Area 211.2(H)×158.4(V) mm
Outline Dim. 228.4(H)×175.4(V) ×6.5(D) mm
Bezel Area 214.2(H)×162.5(V) mm
Treatment Antiglare, Hard coating (3H)
Luminance 350 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
View Direction 12 o'clock
Response Time 10/15 (Typ.)(Tr/Td)
Viewing Angle 70/70/60/70 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode TN, Normally White, Transmissive
Support Color 262K/16.7M 50% NTSC
Light Source WLED [3S12P] , 30K hours , W/O Driver
Weight 360g
Designed For Industrial Automotive Display
Frame Rate 60Hz
Touch Panel Without
Interface Type Parallel RGB (1 ch, 6/8-bit) , 60 pins FPC
Power Supply 3.3/11.0/25.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)
Environment Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
TM104SDHG30-01 Tianma 10.4 Inch Industrial TFT Display Applications
Digital products, POS machine, instrument & meter, automobile electronics, communication machine, medical machine, security machine, household electrical appliances and others
TM104SDHG30-01 Tianma 10.4 Inch Industrial TFT Display Packing term
Protect product with polyfoam and multi layer paper board.
Special protect carton for exporting product,
Per customer requirement.
TM104SDHG30-01 Tianma 10.4 Inch Industrial TFT Display Delivery term
For samples, we will finish production and ship within 7~15 working days. We usually arrange DHL, UPS, FedEx express to ship samples.
For bulk orders, usually 25~35 working days and depends on your design. For bulk orders, we support shipping by air or by sea as per customers' requirements.
Custom design OEM/ODM solutions
We support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM products are warmly welcome.
Our Advantages
Prompt reply within 12 hours.
Products with top quality.
Very competitive prices.
Small MOQ accepted.
More than 10 years’ experience in LCD R&D and manufacturing.
Strong R&D term supports perfect customized projects.
Fabulous after-sale service.

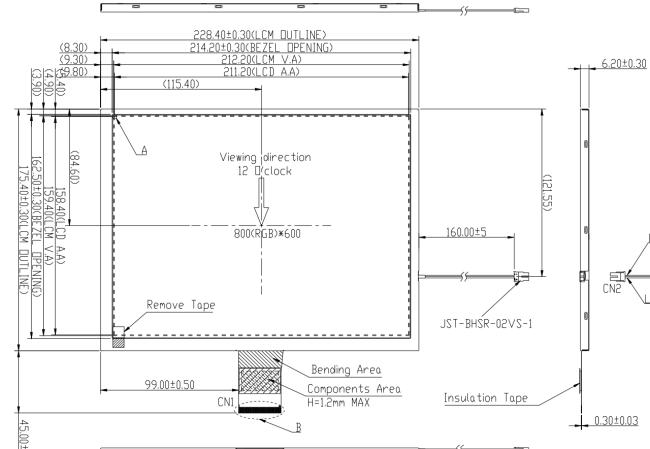

TM104SDHG30-01 Tianma 10.4 Inch Industrial TFT Display Mechanical Drawing
