SVGA Industrial TFT Display Sharp LQ104S1LG81 10.4 Inch 800*600 Dots
| Panel Size: | 10.4 Inch | Panel Brand: | Sharp |
|---|---|---|---|
| Resolution: | 800(RGB)×600,SVGA | View Direction: | 6 O'clock |
| Outline Dimension: | 246.5(H)×179.3(V) ×13(D) Mm | Active Area Size: | 211.2(H)×158.4(V) Mm |
| Luminance: | 420 Cd/m² (Typ.) | Contrast Ratio: | 600 : 1 (Typ.) |
| Operating Temp.: | -30 ~ 80 °C | Storage Temp.: | -30 ~ 80 °C |
- LQ104S1LG81 is a 10.4" diagonal a-Si TFT-LCD display panel product from Sharp Corporation (hereafter called Sharp), with an integral WLED backlight system, With LED Driver , without touch screen.
- It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.0G (9.8 m/s²).
- It's general features are summarized in the following: Wide Temperature, WLED Backlight, Life ≥ 50K hours, With LED Driver, L/R Reverse, Matte , Mechanical compatible with LQ104S1LG61.
- Based on its features,we recommend that this model be applied to Industrial etc.
Model LQ104S1LG81
Diagonal Size 10.4 inch
Type a-Si TFT-LCD, LCM
Pixel Format 800(RGB)×600 [SVGA] 96PPI
Configuration RGB Vertical Stripe
Active Area 211.2(H)×158.4(V) mm
Outline Dim. 246.5(H)×179.3(V) ×13(D) mm
Bezel Area 214.6(H)×162.4(V) mm
Treatment Antiglare, Hard coating (3H)
Luminance 420 cd/m² (Typ.)
Contrast Ratio 600:1 (Typ.) (TM)
View Direction 6 o'clock
Response Time 35 (Typ.)(Tr+Td)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode TN, Normally White, Transmissive
Support Color 262K 42% NTSC
ight Source WLED , 50K hours , With LED Driver
Weight 500g (Max.)
Designed For Industrial
Frame Rate 60Hz
Touch Panel Without
Interface Type LVDS (1 ch, 6-bit) , 20 pins Connector
Power Supply 3.3V (Typ.)
Environment Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C
LQ104S1LG81 Sharp 10.4 Inch 800*600 Dots SVGA Sharp Industrial TFT Display Applications
Digital products, POS machine, instrument & meter, automobile electronics, communication machine, medical machine, security machine, household electrical appliances and others
LQ104S1LG81 Sharp 10.4 Inch 800*600 Dots SVGA Sharp Industrial TFT Display Packing term
Protect product with polyfoam and multi layer paper board.
Special protect carton for exporting product,
Per customer requirement.
LQ104S1LG81 Sharp 10.4 Inch 800*600 Dots SVGA Sharp Industrial TFT Display Delivery term
For samples, we will finish production and ship within 7~15 working days. We usually arrange DHL, UPS, FedEx express to ship samples.
For bulk orders, usually 25~35 working days and depends on your design. For bulk orders, we support shipping by air or by sea as per customers' requirements.
Custom design OEM/ODM solutions
We support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM products are warmly welcome.
Our Advantages
Prompt reply within 12 hours.
Products with top quality.
Very competitive prices.
Small MOQ accepted.
More than 10 years’ experience in LCD R&D and manufacturing.
Strong R&D term supports perfect customized projects.
Fabulous after-sale service.

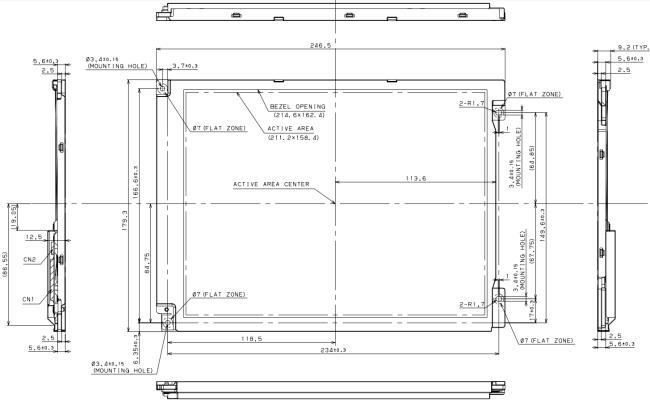

LQ104S1LG81 Sharp 10.4 Inch 800*600 Dots SVGA Sharp Industrial TFT Display Mechanical Drawing
